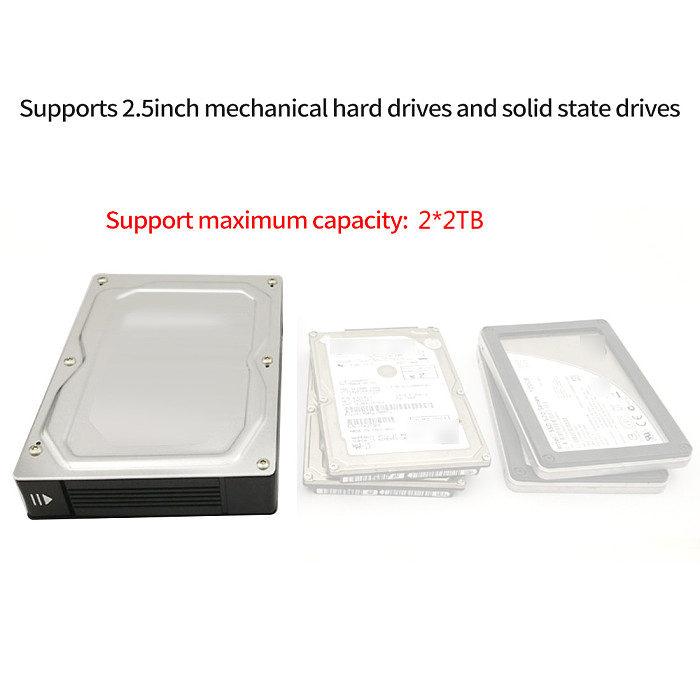

XT-XINTE 2.5inch SATA Adapter Box SSD/HDD Mobile Rack to 3.5inch with Raid New Version SATA6G 6.0Gbps Item NO.: F34924

XT-XINTE 2.5inch SATA Adapter Box SSD/HDD Mobile Rack to 3.5inch with Raid New Version SATA6G 6.0Gbps

Product description:
Brand: XT-Xinte
Color: Black + Silver
Size: 146 * 101 * 25.5mm
Weight: 150 grams
Material: aluminum alloy + plastic
Supported capacity: 2 * 2TB
Transmission speed: SATAⅢ6.0Gbps
Connection interface: SATA7 + 15-pin
Indicator light: red light is always on-upper disk hard disk failure, red light flashes-upper disk hard disk reconstruction
Blue light is on-Hard disk in lower bay is faulty, blue light is flashing-Hard disk in lower bay is rebuilt

Feature:
1.  2.5-inch 2-disk to 3.5-inch SATA hard disk adapter box with RAID function.
2. It has the same specifications as the 3.5-inch SATA hard disk, and can be installed in all cases, 3.5-inch extraction boxes or mobile hard disks.
3. Can install two SATA 2.5-inch mechanical hard disks or solid-state hard disks at the same time, and turn two hard disks into one large-capacity hard disk.
4.Built-in NSS connector (the hard disk case will not be damaged even after 50,000 mating cycles).
5. The product's internal chip has built four modes of RAID0 / RAID1 / JBOD / NOR, the computer can be used directly without any settings.
6. Raid mode switching can be completed by flipping a switch, which simplifies the process of forming a very complicated Raid team in the past.
7. With the same shape as the hard disk, the tool-free extraction and replacement of the hard disk structure are skillfully included, and the hard disk replacement can be completed in three seconds.
8.Aluminum alloy upper cover and bottom heat dissipation holes provide good heat dissipation conditions for the hard disk.
9. It provides an excellent solution for capacity expansion, automatic backup of data and data, and improvement of hard disk speed.

caution::
1. For stable performance, it is recommended to use two hard disks of the same brand and the same size and capacity
2. Changed Raid Mode: After the product is powered on, turn on the Raid switch to the desired assault mode position, and then set the product to power on assault mode successfully.
3. Raid mode switching (reconstruction) will erase the internal data of the hard disk. Be sure to make a backup of the hard disk data before switching the Raid mode.
4.Nor mode, the SATA interface on the motherboard needs to support port expansion function (PM), otherwise only the first hard disk can be recognized
5. It is prohibited to toggle the Raid switch while the hard disk is in use, otherwise the internal data of the hard disk may be damaged.
6. When Raid1 replaces one of the hard disks, it takes a long time to rebuild, but it does not affect the normal use of existing data, and the transmission will be slow during the process, which is normal. (Reconstruction time is different with different hard drive specifications)

The product contains:
2.5-inch to 3.5-inch SATA hard disk adapter box * 1
Instructions * 1
Screw * 1 set
