Home>Consumer Electronics>Computer Adapter>USR-W630 Industrial Serial to WIFI and Ethernet Converter Supports 2 Ethernet Ports, Modbus RTU

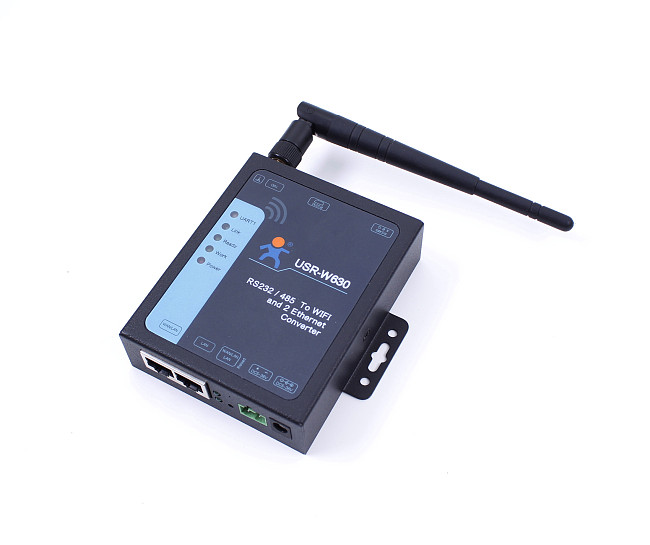

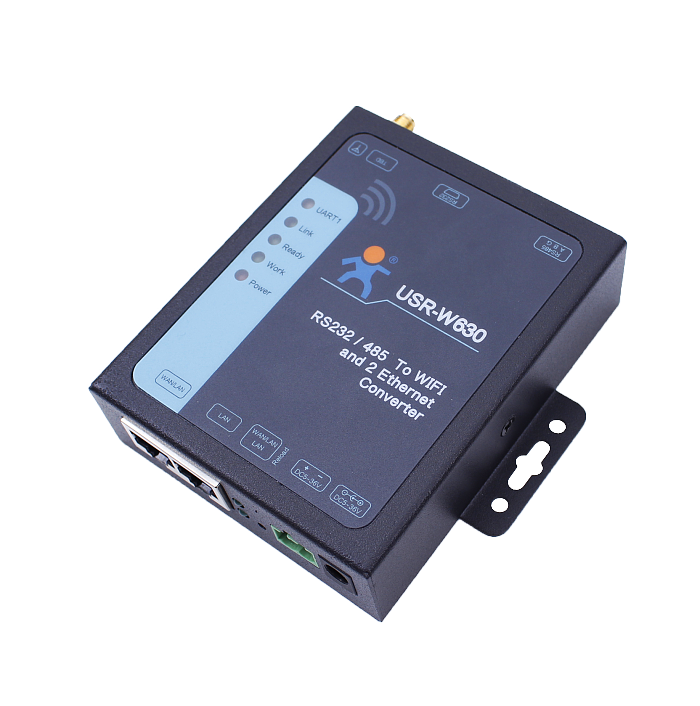

USR-W630 Industrial Serial to WIFI and Ethernet Converter Supports 2 Ethernet Ports, Modbus RTU Item NO.: F26748

Sold (37)

US$ 36.51 ~ US$ 40.57

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 40.57	US$ 38.54	US$ 36.51

Quantity: Stock ( 9999995 )

Estimate Shipping Cost

Product Name	USR-W630 Industrial Serial to WIFI and Ethernet Converter Supports 2 Ethernet Ports, Modbus RTU
Item NO.	F26748
Weight	0.8 kg = 1.7637 lb = 28.2192 oz
Category	Consumer Electronics > Computer Adapter
Brand	USR
Creation Time	2018-11-29

USR-W630 Industrial Serial to WIFI and Ethernet Converter Supports 2 Ethernet Ports, Modbus RTU

Features

1. Two Ethernet ports, WAN /LAN Port

2. Supports Modbus RTU to TCP, Modbus Polling

2. Hardware watchdog to kee working stable

3. DC adapter and terminal power supply 5-36 V

4. Serial to WIFI or WIFi to Ethernet

Product Description

Industrial Serial To WiFi and Ethernet Converter

2 Ethernet ports Serial To WiFi and Ethernet Converter USR-W630, which can realize bidirectional transparent transmission between RS232/RS485 and WIFI, WiFi and Ethernet, Serial and Ethernet.

Detailed mages

Characters

Two Ethernet ports: 1x WAN, 1x LAN/WAN. Two Ethernet ports (WAN and LAN) can be worked simultaneously
Modbus gateway: Modbus TCP to Modbus RTU in bi-directional; Modbus Polling
Electrostatic protection
Hardware WatchDog, 24 hours stable operation.
Timeout reset function, timing reset function.
Supports identity packet function.
Supports heartbeat packet function.
Websocket function
Supports Web Server, setup software, serial/network AT command to configure module.
Hardware reload.
WIFI Standard: 2.4GHz 802.11b/g/n
Work Mode:TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
Supports AP, STA, AP+STA.
Supports usrlink.
EFT: Passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc.), it can ensure that the device hardware is not damaged. Power: 2KV, Ethernet interface 232 485: 2KV

Special Features

1.Modbus Polling Mode
In this mode, it supports Modbus TCP and Modbus RTU mutual conversion.
2. Heartbeat Packet Function
USR-W630 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W630 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.
3. Socket Distribution Protocol
USR-W630 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header. The data received from different
socket will be added different header before they are sent to serial.
4. Regular Restart Function
USR-W610 supports timing and timeout restart function, which makes the system run more stable.
