Copy| Product Name | XT-XINTE USB3.0 PCI-E Expansion Card Adapter Front External 2 Port USB 3.0 Hub & Internal 19pin Header PCIE Card 4pin IDE Power Connector |
| Item NO. | F26817 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | Consumer Electronics > Computer Adapter |
| Brand | XT-XINTE |
| Creation Time | 2018-12-24 |

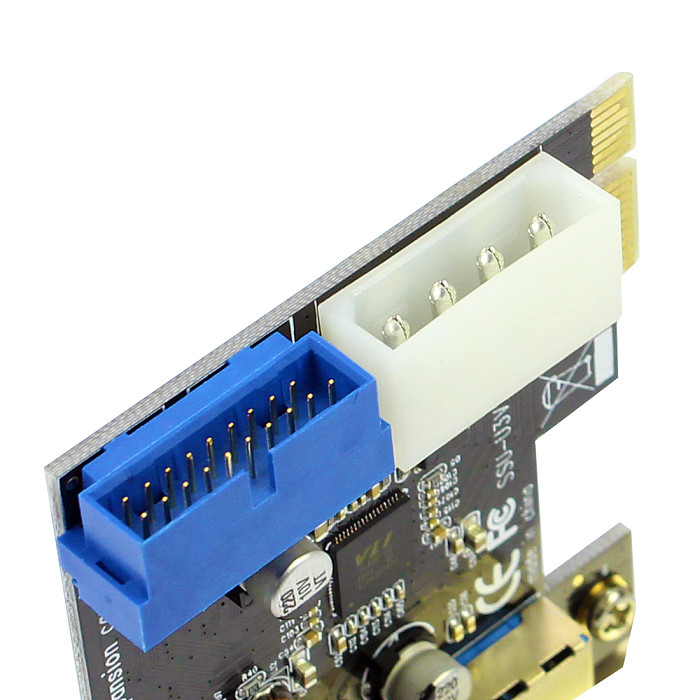

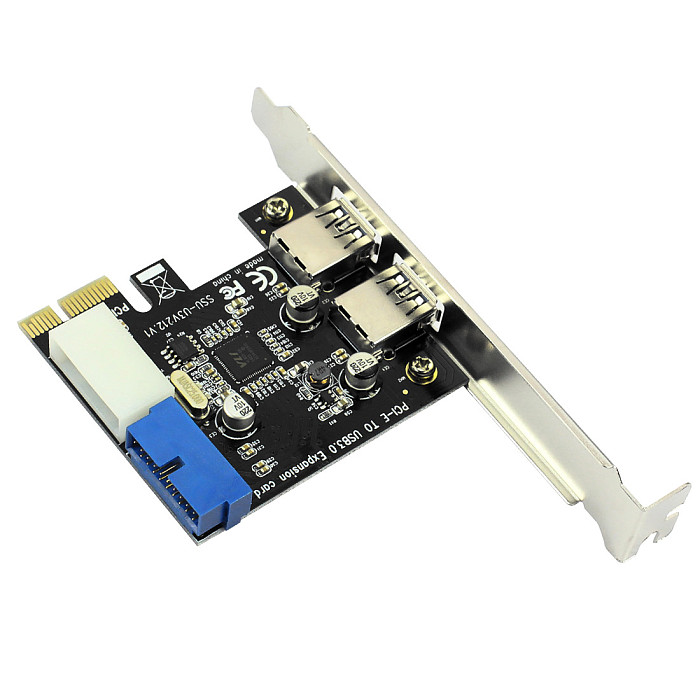

USB3.0 PCI-E Expansion Card Adapter Front External 2 Port USB 3.0 Hub & Internal 19pin Header PCIE Card 4pin IDE Power Connector
Features:
Easy to Install.
With IDE 4Pin Power Supply Connector.
USB 3.0 supports transfer rates of up to 5 Gbps.
Compatibility: Works great with Windows XP 32/64, Windows 7 32/64, Windows8, Windows8.1, Windows10.
The card comes with 2A power supply and do not need external power supply, 330 12X12mm inductor is better than 100 10X10mm one.
Each interface equips with independent interface protection fuse, and immediately cut off the power while external USB short circuit or overcurrent happens, protect external divices and computer from damage, automatically return to normal after troubleshooting
Each interface equips with independent regulated capacitor, guarantee smooth power supply without interface, also can undertake 250° celsius with Solid chip capacitor, strong endurance
With immersion gold process, good electrical conductivity, strong antioxidant capacity, it can guarantee stable transmission
Specification:
Bus Type: PCI-E x1
Chipset Model: VL805
Compatible Slots: PCI-E x1 / x4 / x8 / x16
Interface: 2x USB3.0 ports;1x Large 4Pin Power Connector; 1x USB3.0 19Pin Header
Transmission Rate: USB3.0, 5Gb / s
Support Operating System: Windows XP 32/64, Windows 7 32/64, Windows8, Windows8.1, Windows10
You'll receive:
1 x PCI-E To USB3.0 Expansion Card
Please check pictures for more details
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
