XT-XINTE BCM94360CS2 BCM943224PCIEBT2 12+6 Pin Bluetooth Wifi Wireless Card Module to NGFF M.2 Key A / E Adapter for Mac OS

XT-XINTE BCM94360CS2 BCM943224PCIEBT2 12+6 Pin Bluetooth Wifi Wireless Card Module to NGFF M.2 Key A / E Adapter for Mac OS Item NO.: F25757

Write a Review
US$ 4.06
US$ 4.78 Save US$ 0.72 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name XT-XINTE BCM94360CS2 BCM943224PCIEBT2 12+6 Pin Bluetooth Wifi Wireless Card Module to NGFF M.2 Key A / E Adapter for Mac OS
Item NO. F25757
Weight 0.015 kg = 0.0331 lb = 0.5291 oz
Category Consumer Electronics > Computer Adapter
Creation Time 2018-08-16

XT-XINTE BCM94360CS2 BCM943224PCIEBT2 12+6 Pin Bluetooth Wifi Wireless Card Module to NGFF M.2 Key A / E Adapter for Mac OS

Special statement:
This adapter card is theoretically applicable to the 6+12pin wireless module in Apple Computer.
However, there are too many types of wireless network card modules that Apple uses for this interface.
Apple with a 6+12 PIN, length of 33 mm and 39 mm with a fixed post in the middle Module, some wireless module length and the screw fixing position of the tail are different, please find your own solution to fix the problem, and, with this combination, be sure to pay attention to whether your computer antenna feeder and your wireless module is equipped, and after this combination, is your own computer installation space enough.
About Bluetooth: Bluetooth module can not be used for two reasons, one is yours wireless module is not equipped with Bluetooth, the other is whether your computer wireless interface is set become a USB signal cable, both of which are indispensable.
This adapter card can support Bluetooth function. (The riser card has a USB signal cable from the wireless module).
Specifications: 46.5mm * 22mm * 5mm (length * width * thickness)
This adapter does not support any wireless network cards which only supports the Akey and Ekey wireless network cards of the CNVI protocol.

Slots:
Such as H370, HM370, B360, H310, Q370, QM370, CM246, etc. Chipset motherboard integrated M.2 wireless network card interface.Because CNVI's specification will use a dedicated CNVI channel, CNVI will integrate the MAC part of the network card inside the chipset. It is common to say that some functions of the wireless network card will be directly integrated.
This use of a special design also creates a barrier for Intel. As long as one end of the network card and chipset is not the Intel recommended specification, it will not be able to start. For example, AMD chipset and CNV network card, or CNVI slot and non-CNVI network card.
If your motherboard supports wireless,The NIC interface supports the CNVI protocol and supports the non-CNVI protocol, which is also usable.


Note:
1: This product only supports 6+12pin type wireless modules in Apple notebooks. It can also support wireless modules with some identical feet. However, please fix the fixed problem yourself.

2: There are many types of interface definitions for NGFF interfaces, such as solid state drives and wireless modules! They are divided into Akey, Bkey, A+Ekey, Mkey, B+Mkey, etc. by slot. Please pay attention to distinguish, don't make mistakes.

3: The adapter card does not need any driver, because the adapter card does not carry any chip, there is no chip, so there is no such problem as driver and compatibility. You need to install the driver of your own wireless network card module itself, wireless. The NIC module does not have a driver or the driver installation error does not work properly!

4: The adapter card only changes the interface form of the wireless module, and does not change any performance of the module, because it is just a matter of connecting several wires from your module! What function did you have in the original module, and what function was there after the transfer, not to mention the use of the adapter card, resulting in slow, unstable, and so on.

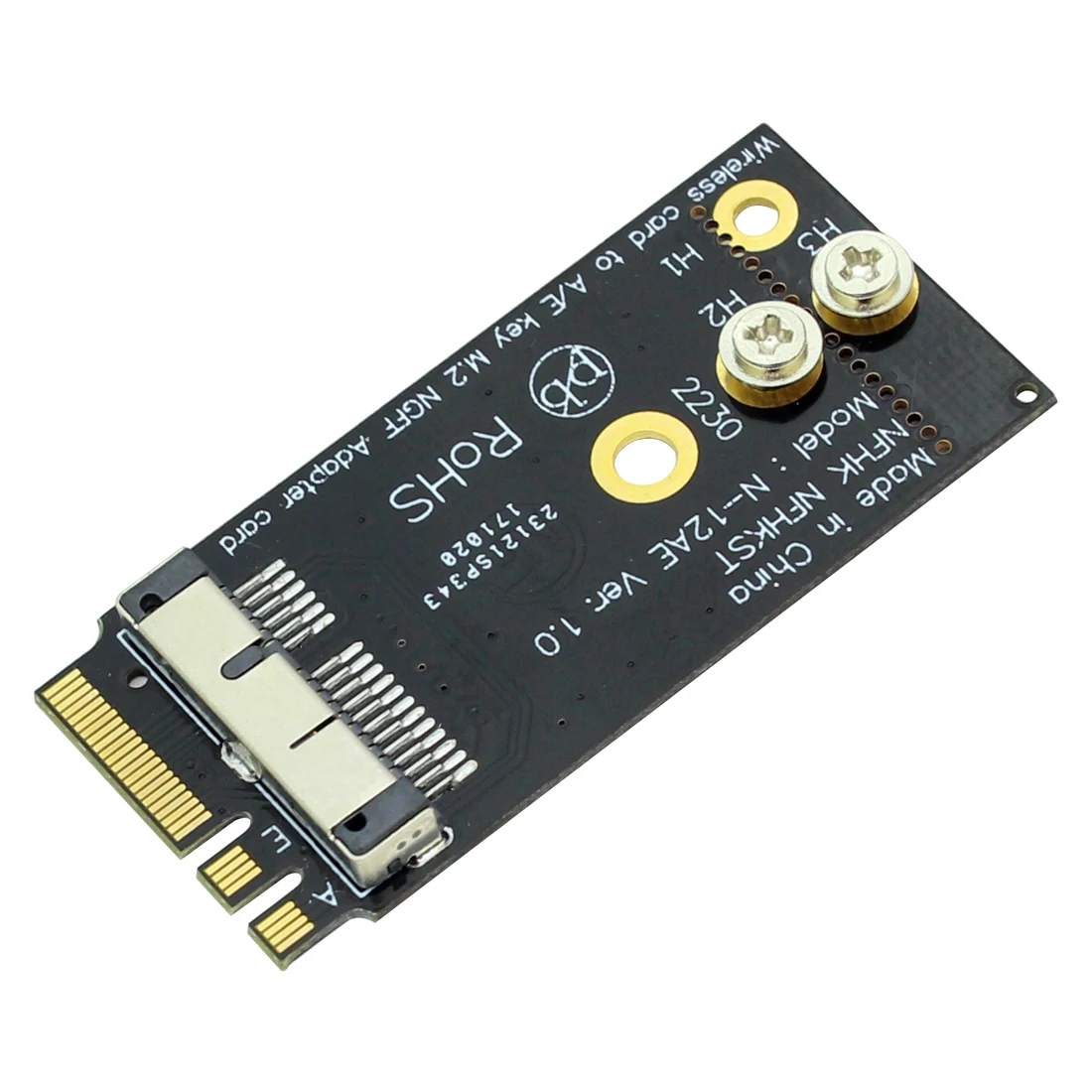

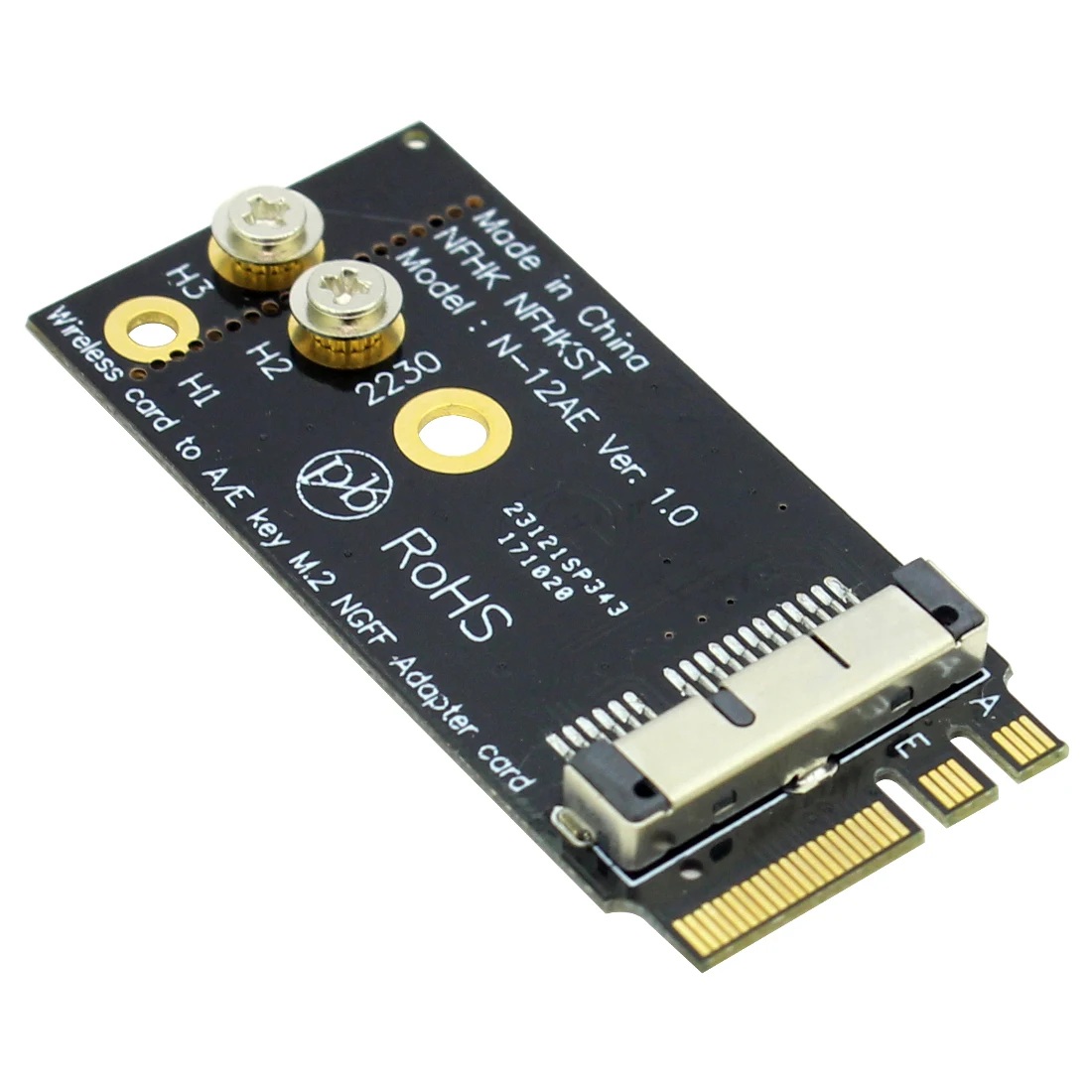

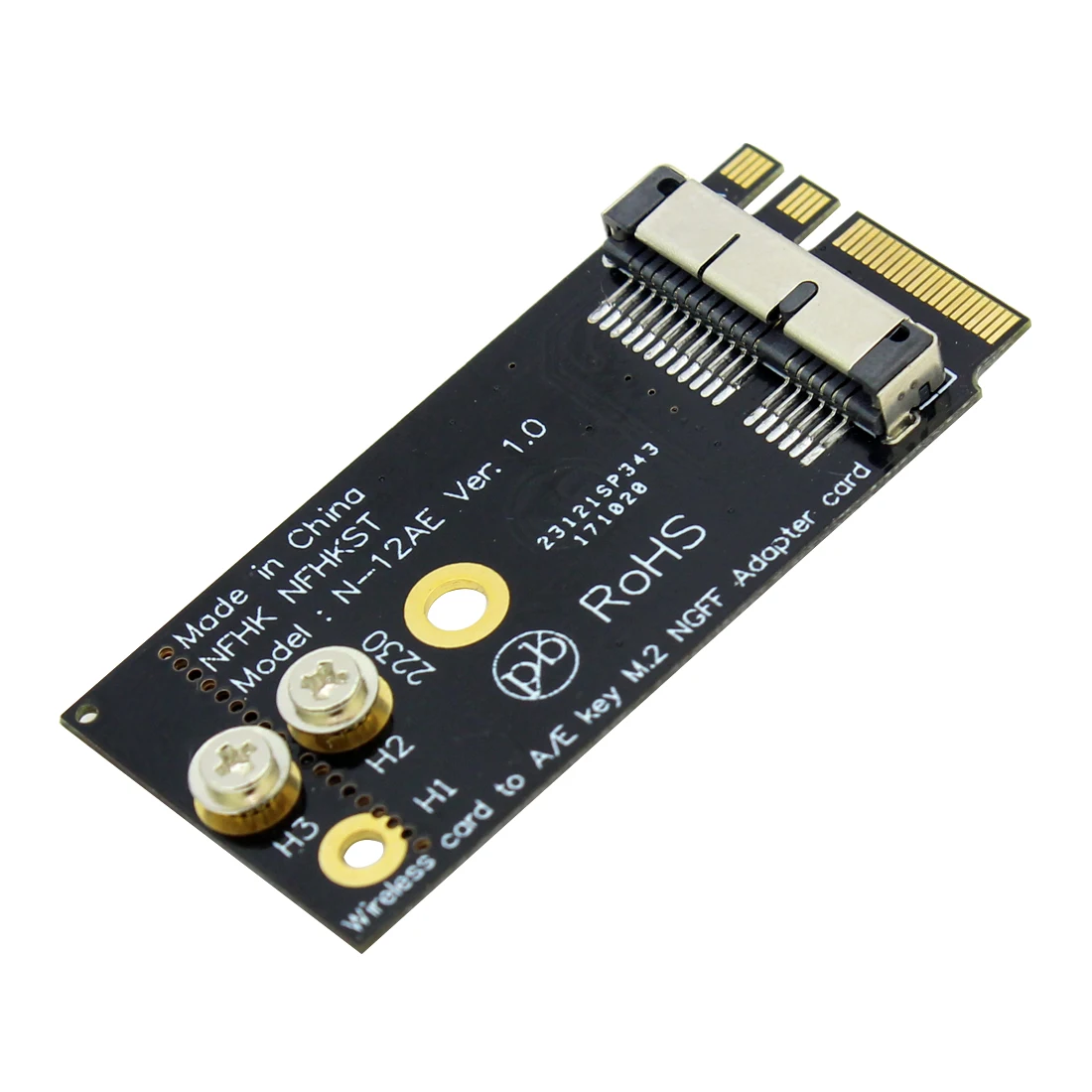

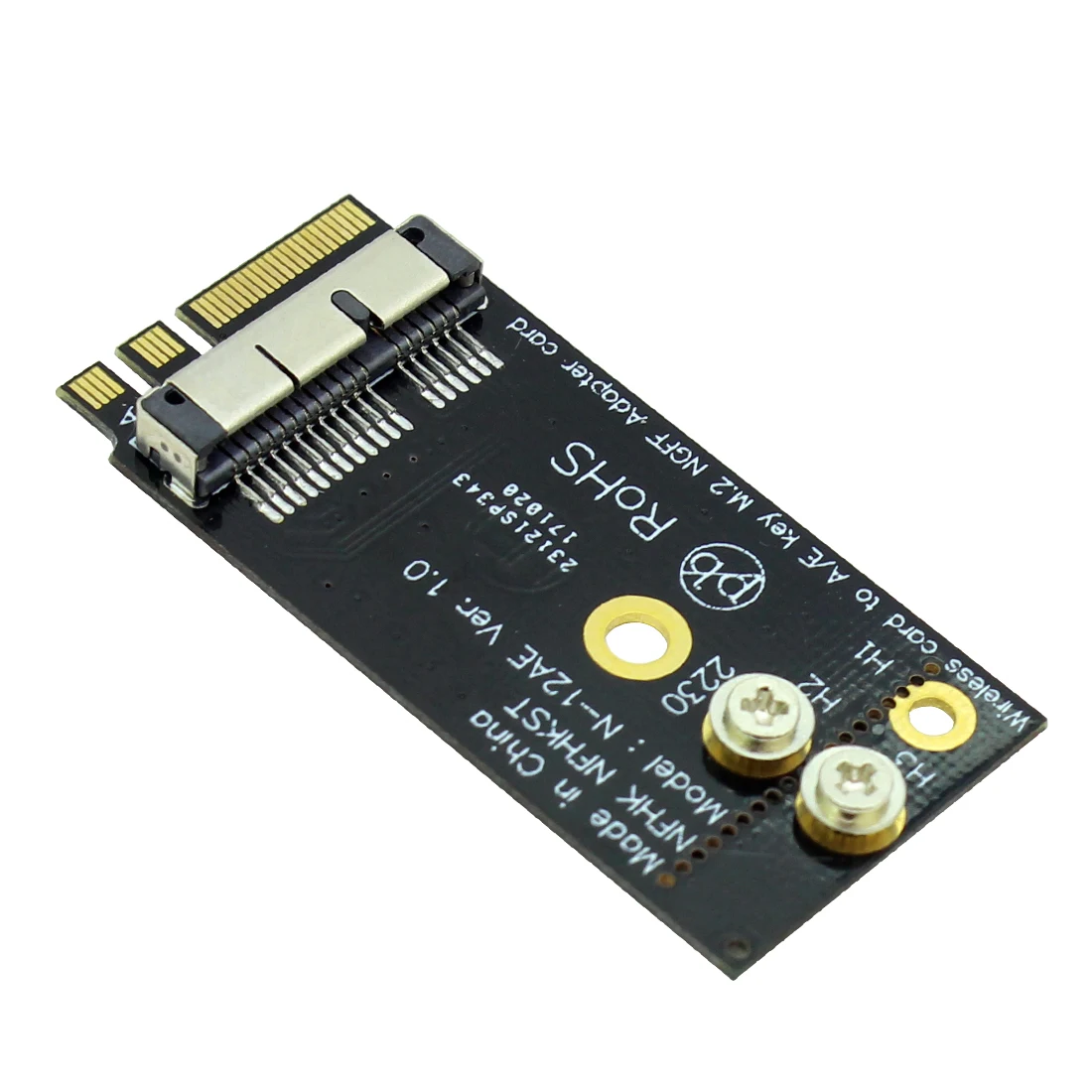

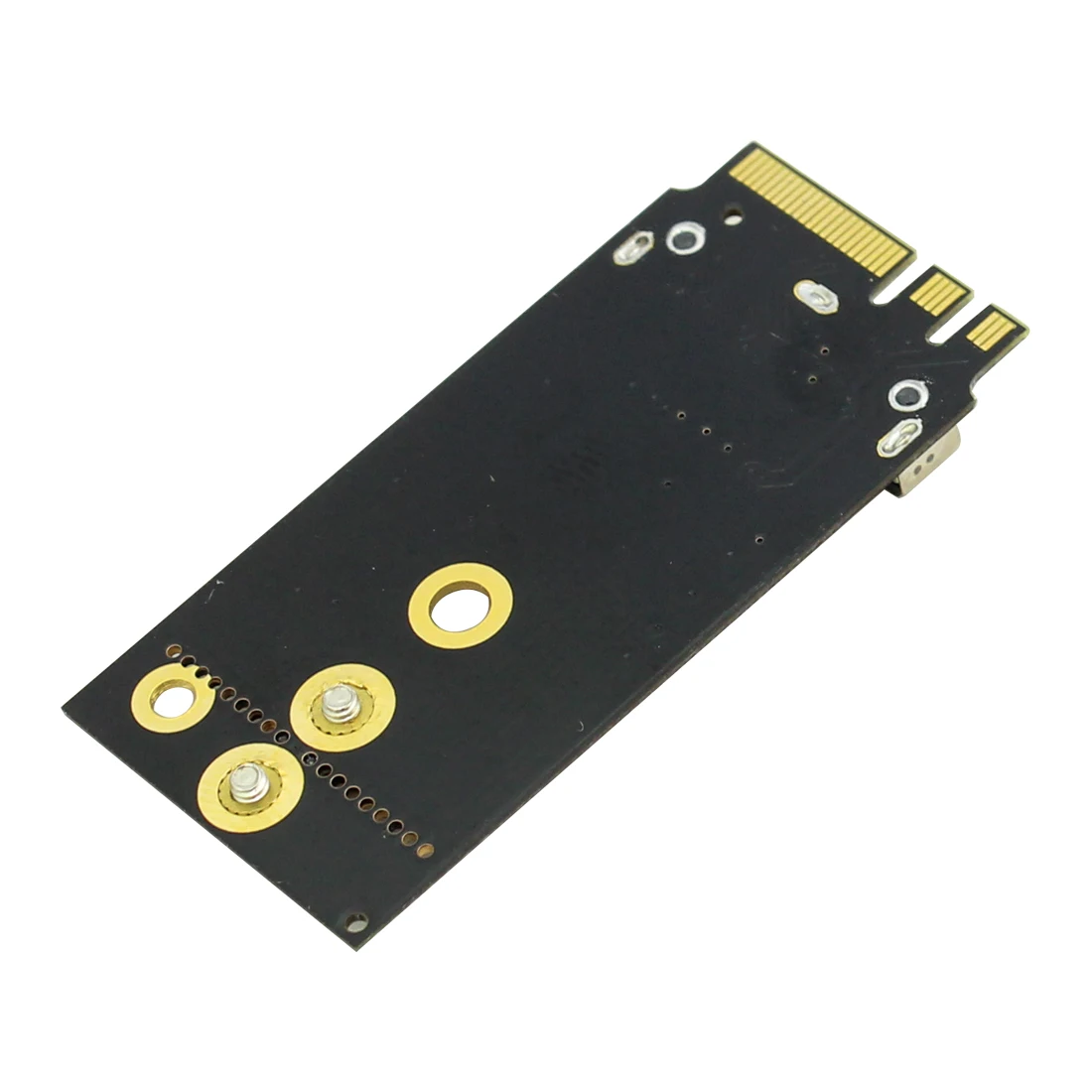

This adapter can convert BCM94360CS2/BCM943224PCIEBT2 card to NGFF(M.2) Key A/E interface for Mac OS
This adapter is not suitable for notebook/laptop due to height bottleneck limit, it is suitable for desktop motherboard with NGFF(M.2) key A/E connector , such as, Asus ,MSI and GIGABYTE Z170 ITX series motherboard.
Supports only 2230 type M.2 key A/E connector.
No additional power required.
This adapter does not contain BCM94360CS2/BCM943224PCIEBT2 card.
