TOOLFREE 3.5 inch 3/4/5-bay 6G 12G SATA/SAS 6Gbps Hard Drive Tray Hard Disk Enclosure Extraction Box For Desktop Computer

TOOLFREE 3.5 inch 3/4/5-bay 6G 12G SATA/SAS 6Gbps Hard Drive Tray Hard Disk Enclosure Extraction Box For Desktop Computer Item NO.: F39891 F39892 F39893 F39894 F39895

Write a Review
US$ 67.96
US$ 79.95 Save US$ 11.99 (15% Off)
Version
MRA503 MRA503R MRA504-6G MRA504-12G MRA505
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name TOOLFREE 3.5 inch 3/4/5-bay 6G 12G SATA/SAS 6Gbps Hard Drive Tray Hard Disk Enclosure Extraction Box For Desktop Computer
Item NO. F39891 F39892 F39893 F39894 F39895
Weight 1.65 kg = 3.6376 lb = 58.2020 oz
Category Consumer Electronics > Computer Accessories
Brand TOOLFREE
Creation Time 2020-07-27

TOOLFREE 3.5 inch 3/4/5-bay 6G 12G SATA/SAS 6Gbps Hard Drive Tray Hard Disk Enclosure Extraction Box For Desktop Computer


Product description:

Brand: TOOLFREE
Colour: Black
Specifications: MRA503, MRA503R, MRA504-6G, MRA504-12G, MRA505
Size: 148*86*210 mm (MRA503, MRA503R)
     148*127*215 mm (MRA504-6G, MRA504-12G, MRA505)

Features:
MRA503:
3.5-inch 3-bay SATA/SAS 6.0Gbps hard drive tray
Two 5.25 inch optical drives, the size can accommodate three 3.5 inch SATA/SAS large hard drives
Tool-free replacement of hard disk design, which can quickly replace the hard disk
Built-in NSS connector (50 thousand times of insertion and removal will not hurt the hard disk interface)
All-aluminum body shell, high-end, sturdy and beautiful, 1 6 cm fan forced convection heat dissipation
The hard disk compartment door is designed with a lock to prevent the hard disk from being mis-operated. The front independent power switch key and light indication ※Intelligent temperature control design, through the built-in software to control the fan speed, drive heat dissipation
When the temperature exceeds the limit, the indicator light and the buzzer dual alarm device monitor the working temperature of the hard disk
Built-in power-off memory function, after the product is re-powered, it will automatically restart to restore the previous state, realizing unattended
Compatible with SATA and SAS interface hard drives, transfer rate SATAII 6.0Gbps (theoretical transfer rate)

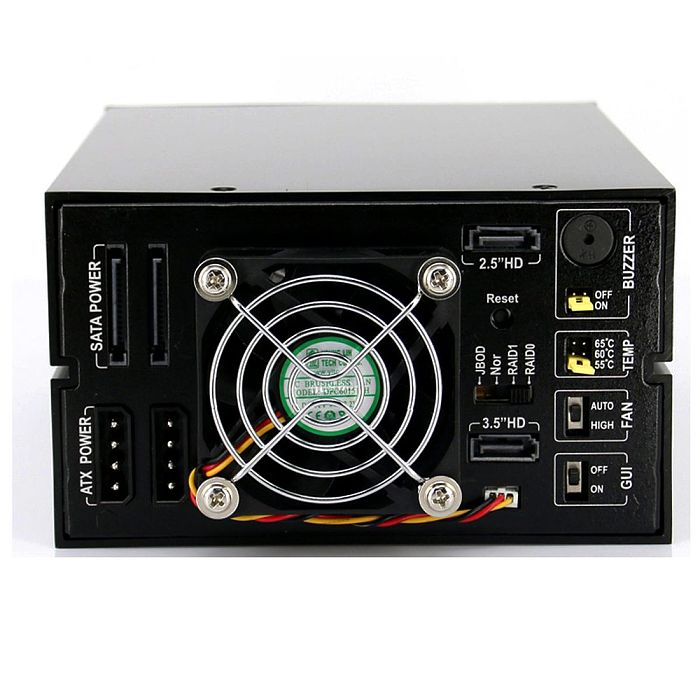

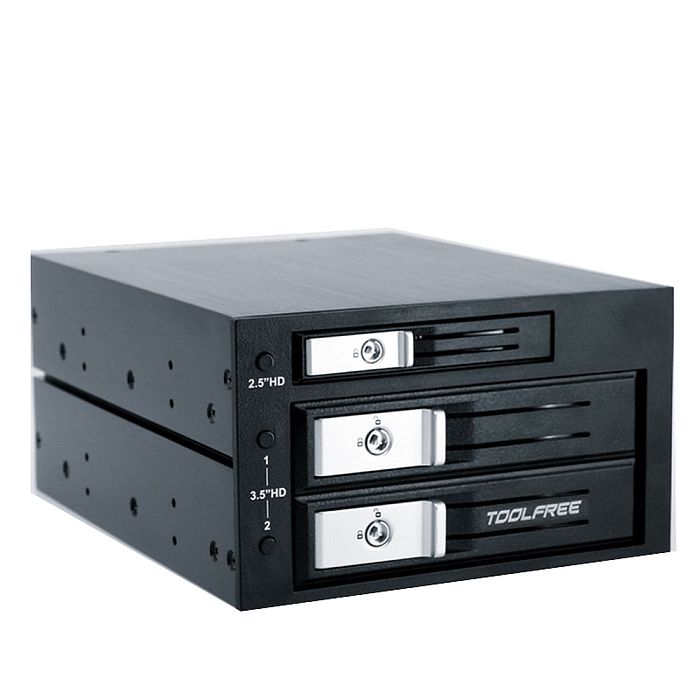

MRA503R:
1pcs 2.5-inch SATA hard disk + 2pcs 3.5-inch SATA hard disk Raid module hard disk extraction box
Two optical drive slots installed on the chassis, accommodating one 2.5-inch + two 3.5-inch SATA hard drives
A 5-12mm thick 2.5-inch solid state drive (SSD) or mechanical hard drive, which can be used as a system disk for installation
Two 3.5-inch SATA hard disks form Raid, which can be used as automatic and safe backup of large-capacity storage and data
The product has a built-in SATA II 6.0Gb Raid chip, which can form four modes: Raid0, Raid1, Jbod, Nor
Aluminum-magnesium alloy black brushed shell, strong, beautiful and high heat dissipation performance
Built-in NSS connector (50 thousand times of hot plugging will not damage the hard disk interface)
With hard disk independent power control switch, 6 cm fan with intelligent temperature control system to dissipate the hard disk
Tool-free replacement hard drive design, fast hard drive replacement
The hard disk storage door is equipped with a lock to prevent the hard disk from opening the door by mistake and protect the safety of the hard disk.
Accessories demand: chassis fixing screws*8, manual "1, SATA data cable*2, 2.5-inch warehouse door key*2, 3.5-inch warehouse door key*2

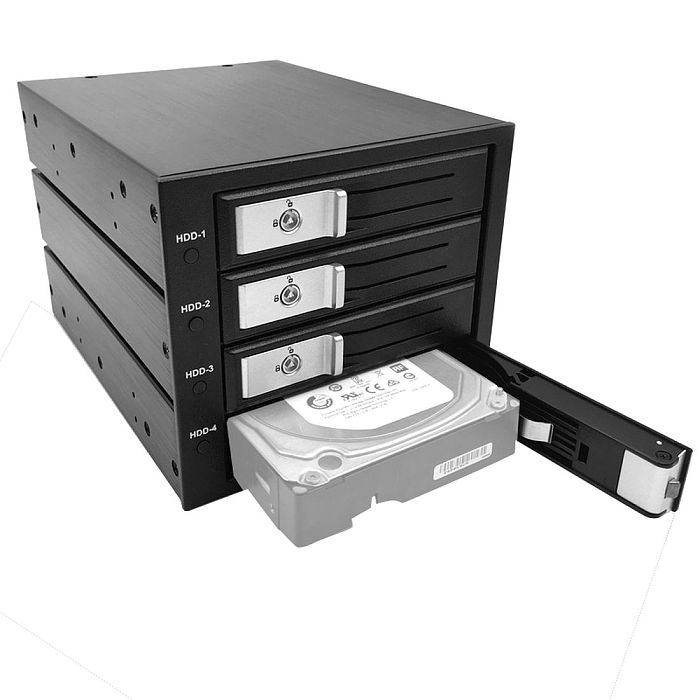

MRA504: (6G OR 12G)
3.5-inch 4-bay SATA/SAS hard drive tray
Three 5.25 inch optical drives, the size can accommodate four 3.5 inch SATA/SAS large hard drives
Tool-free replacement of hard disk design, which can quickly replace the hard disk
Built-in NSS connector, it will not damage the hard disk interface even after 50,000 insertions and withdrawals (only MRA504)
All-aluminum body shell, high-end, sturdy, beautiful, 1 8 cm fan forced convection heat dissipation
The hard disk storage door has a lock design to prevent the hard disk from being mis-operated. The front independent power switch key and indicator light indicate
Intelligent temperature control design, through the built-in software to control the fan speed, drive heat dissipation
When the temperature exceeds the limit, the indicator light and the buzzer dual alarm device monitor the working temperature of the hard disk
Built-in power-off memory function, the product will automatically restart to restore the previous state after power-on again, realizing unattended
Compatible with SATA and SAS hard disk interface
Two versions are available: MRA504 6G: SATAII 6Gbps
              MRA504 12G: MiniSAS SFF-8643 12Gbps

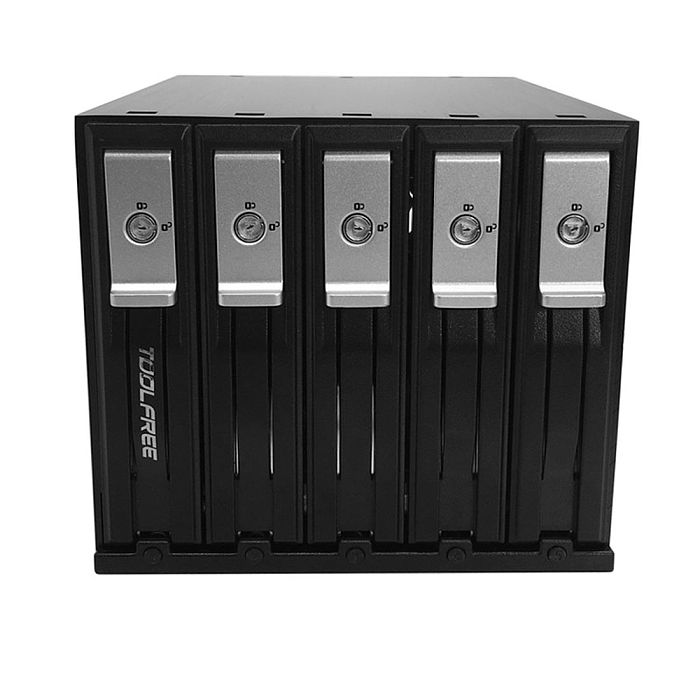

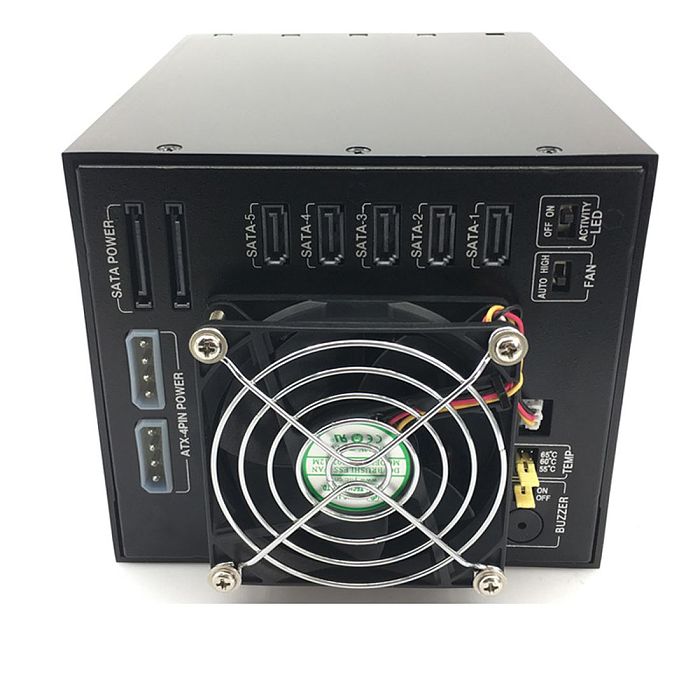

MRA505:
3.5-inch 5-bay SATA/SAS 6.0Gbps hard drive tray
Three 5.25 inch optical drives, the size can accommodate five 3.5 inch SATA/SAS large hard drives
Tool-free replacement of hard disk design, which can quickly replace the hard disk
Built-in NSS connector (50 thousand times of insertion and removal will not damage the hard disk interface) Lhs
Full aluminum body shell, high-end, sturdy, beautiful, 1 8 cm fan forced convection heat dissipation
The hard disk storage door has a lock design to prevent the hard disk from being mis-operated. The front independent power switch key and light indicator indicate
Intelligent temperature control design, through the built-in software to control the fan speed, drive heat dissipation
When the temperature exceeds the limit, the indicator light and the buzzer double alarm device to monitor the working temperature of the hard disk
Built-in power-off memory function, after the product is re-powered, it will automatically restart to restore the previous state, realizing unattended
Compatible with SATA and SAS interface hard drives, SAIII6.0Gbps (theoretical transfer rate)

Please pay attention to the use of SAS hard drives (SATA hard drives ignore this content)

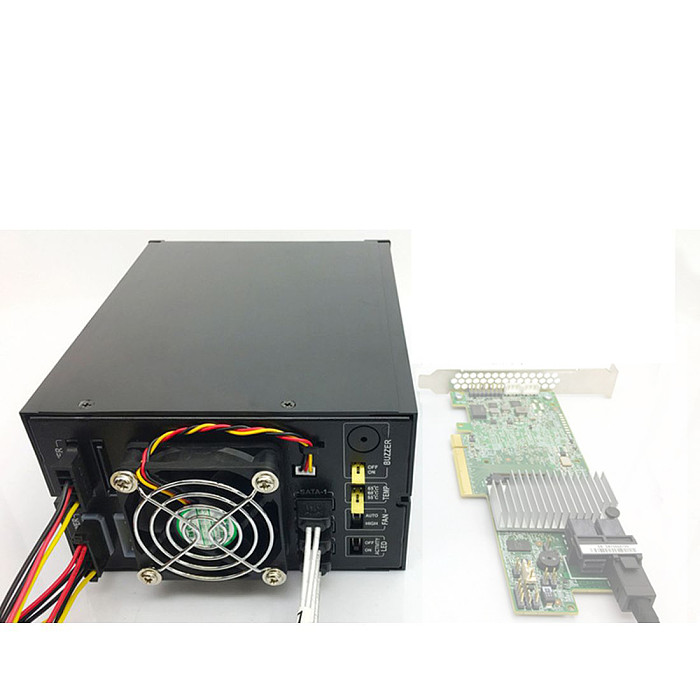

This product can be installed with SAS interface hard drives normally, but you need to confirm that your computer motherboard is a server-level motherboard, and the data interface on the motherboard must support SAS hard drives to be able to work normally. Ordinary personal desktop computer motherboards do not support SAS hard drives; SAS hard drives are enterprise-level hard drives, mainly used in servers. Server motherboards are generally standard SAS data interfaces, while ordinary desktop computers are SATA data interfaces. SATA interfaces are substandards of SAS interface standards. SAS interface technology can It is backward compatible with SATA hard disks, but the SATA interface cannot be upward compatible with SAS hard disks; if you want to use SAS hard disks on ordinary desktop computers, you can install a SAS expansion card + MiniSAS to SATA data cable to connect this product to the SAS expansion card. achieve.
Users of SAS hard disks should confirm it before buying. If there are any unclear points, please contact the seller to confirm.

Parcel include:(Optional)
MRA503:
3.5-inch 3-bay SATA/SAS 6.0Gbps hard drive tray *1
Chassis fixing screws*8
Manual *1
SATA data cable*3
3.5 inch warehouse door key*2

MRA503R:
2.5 inch SATA hard disk + 2 3.5 inch SATA hard disk Raid module hard disk extraction box * 1
Chassis fixing screws*8
Manual *1
SATA data cable*2
2.5 inch warehouse door key*2
3.5 inch warehouse door key*2

MRA504-6G/MRA504-12G:
3.5-inch 4-bay SATA/SAS 6.0Gbps hard drive tray *1
Chassis fixing screws*8
Manual *1
SATA data cable*4
3.5 inch warehouse door key*2

MRA505:
3.5-inch 5-bay SATA/SAS 6.0Gbps hard drive tray *1
Chassis fixing screws*8
Manual *1
SATA data cable*5

3.5 inch warehouse door key*2
