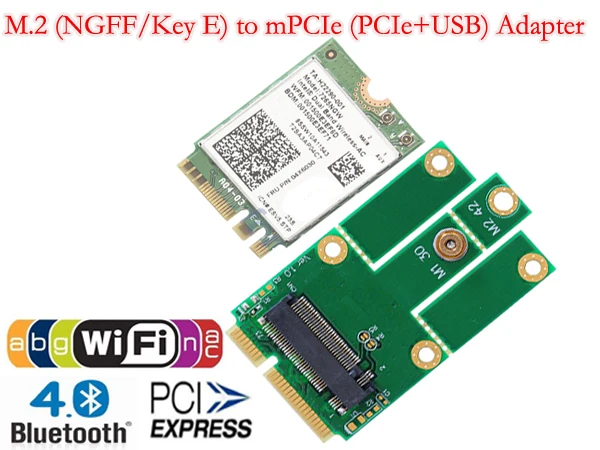

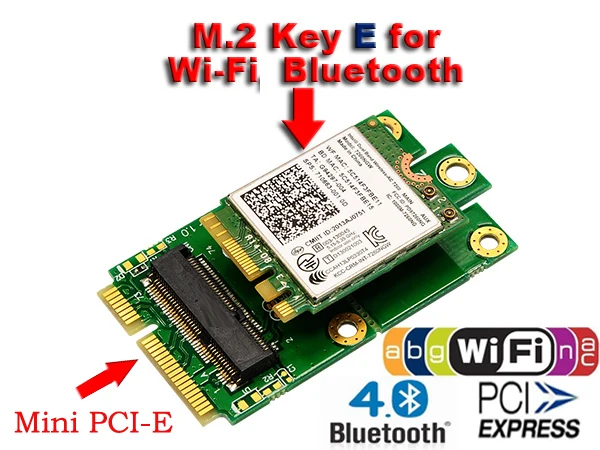

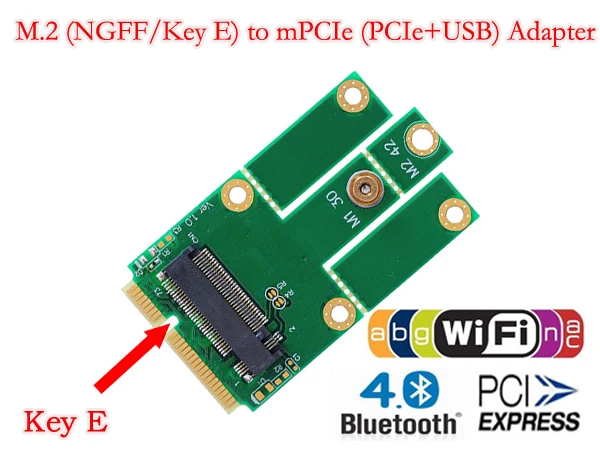

XT-XINTE NGFF M.2 to MiniPCIE Key E miniPCI-E mPCIE Slot PCIe + USB Adapter Wifi + Bluetooth Mini Adapter Card for Desktop Laptop Item NO.: F26713

NGFF M.2 to MiniPCIE Key E miniPCI-E mPCIE Slot PCIe + USB Adapter Wifi + Bluetooth Mini Adapter Card for Desktop Laptop

Function

Allows user to use M.2 Socket 1 Module to mPCIe Slot in the Desktop or Laptop.

Supports system bus interface: PCIe&USB2.0.

Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC.

Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac

No drivers needed for this M.2 to mini PCI-E Card Adapter

Specifications

M.2 Specification Revision 0.9-3

PCI Express base Specification 1.1 (Up to 2.5Gpbs)

USB Specification Revision2.0

Support 3030/3042 M.2 Card dimension.

Support M.2 Socket 1 Module.

M2MP1 Support M.2 Key A/A-E Card Type.

M2MP1-E Support M.2 Key E Card Type.

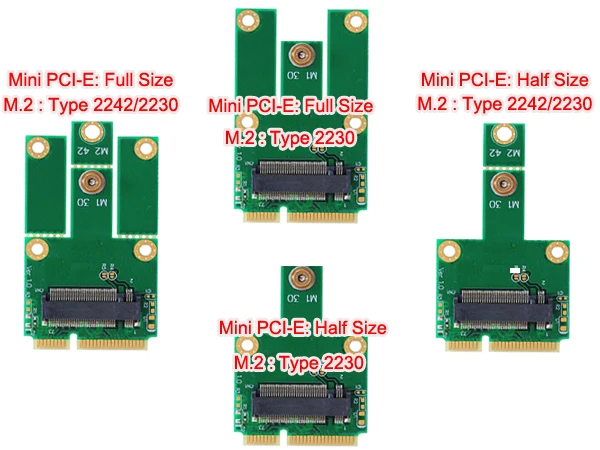

Support Full size and half size mPCIe slot

System Requirement

Mini PCI-E slot

Windows 2000, XP, Vista 32/64, Windows 7, Windows 8 or Linux
