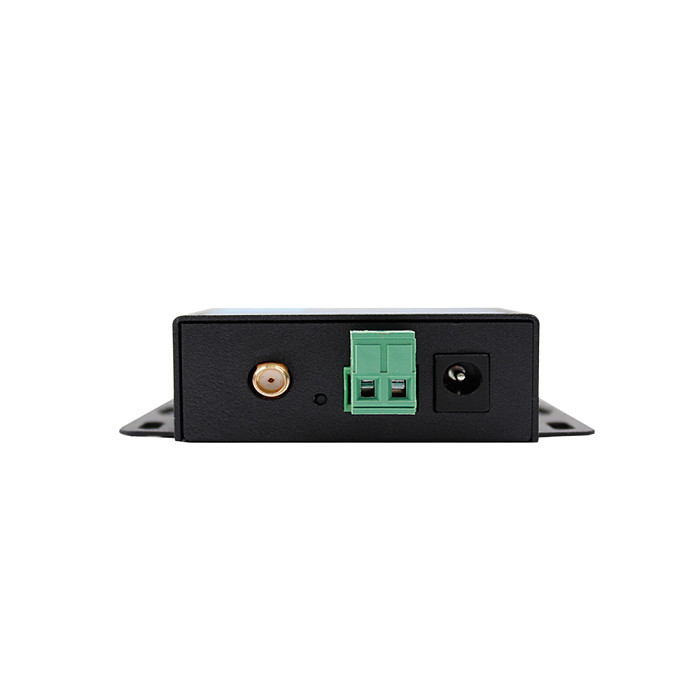

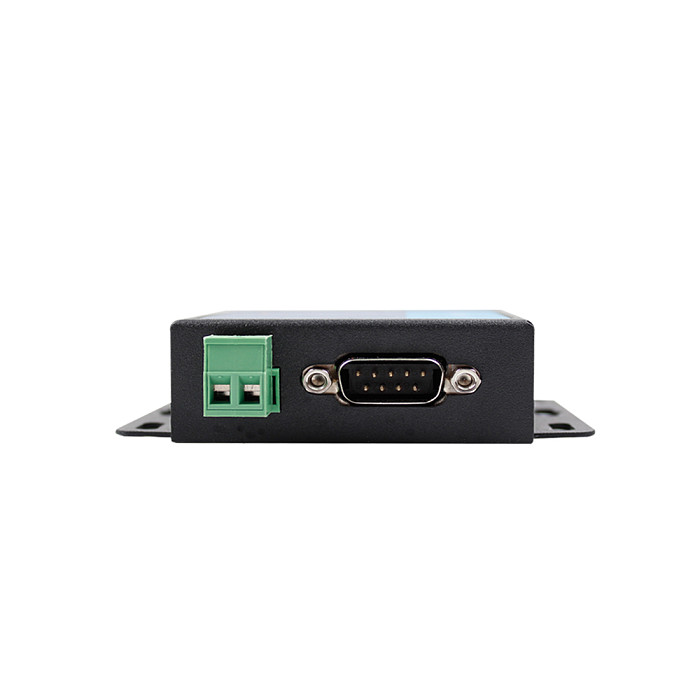

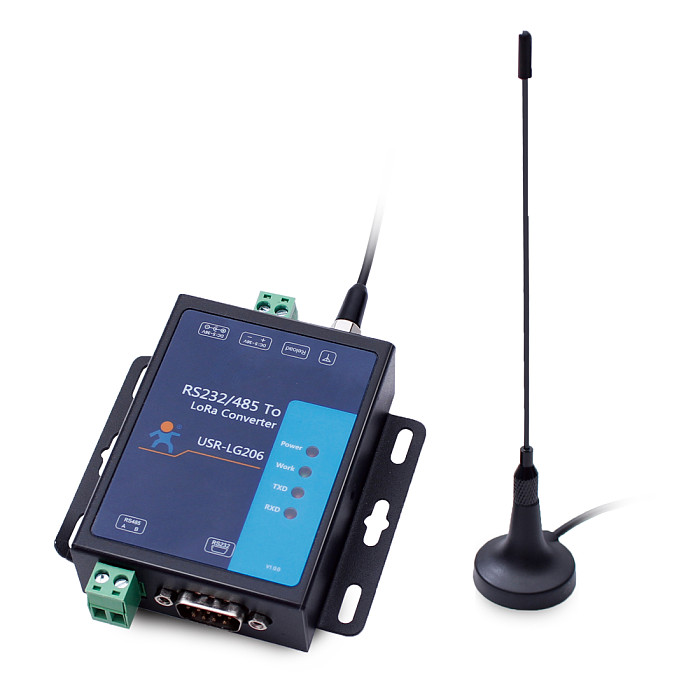

USR-LG206-H-P Serial RS232 RS485 to LoRa Converter Server Device (Point to Point)  for Smart Metering Oil Field Agriculture

USR-LG206-H-P Serial RS232 RS485 to LoRa Converter Server Device (Point to Point) for Smart Metering Oil Field Agriculture Item NO.: F29752

Write a Review
US$ 18.13
US$ 21.33 Save US$ 3.20 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name USR-LG206-H-P Serial RS232 RS485 to LoRa Converter Server Device (Point to Point) for Smart Metering Oil Field Agriculture
Item NO. F29752
Weight 0.56 kg = 1.2346 lb = 19.7534 oz
Category Consumer Electronics > Computer Adapter
Brand USR
Creation Time 2019-07-08

USR-LG206-H-P Serial RS232 RS485 to LoRa Converter Server Device (Point to Point)  for Smart Metering Oil Field Agriculture



Parameter  Value
Wireless parameters
Frequency band USR-LG206-H-P:803-930MHz
Transmitting power

10dBm~20dBm

Receiving sensitivity -138.5dBm 0.268Kbps
Transmission distance 3500 meters. Test condition: Open area, clear weather, 20dBm transmitting power, 5dBi antenna gain, height is greater than 2 meters, 0.268K air rate.

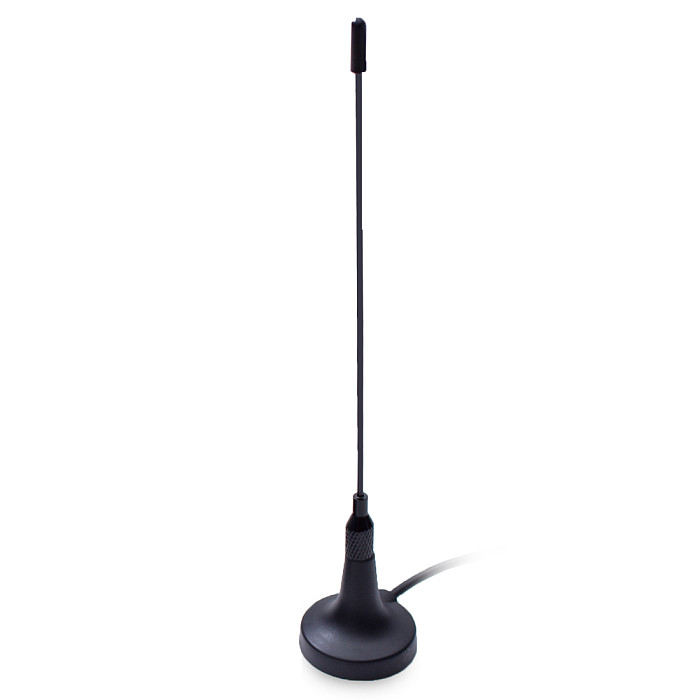

Antenna SMA
Hardware parameters
Data interface

Serial port: Support RS232/RS485.

Baud rate: 1200bps~115200bps

Working voltage 5V~36V
Working current

Transmitting current: 45mA 12V.

Standby mode: 12mA 12V.

Working temperature -30℃~+80℃
Storage temperature -45℃~+90℃
Working humidity 10~90%RH
Storage humidity 10~90%RH
