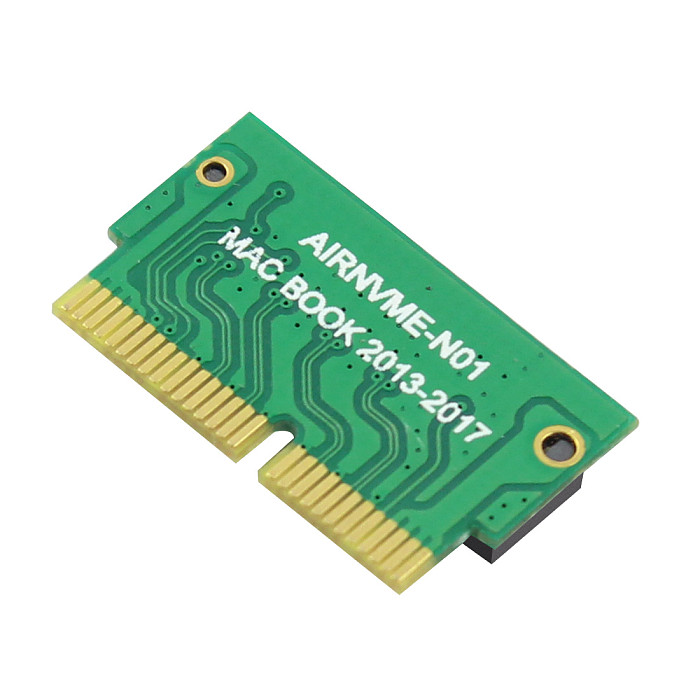

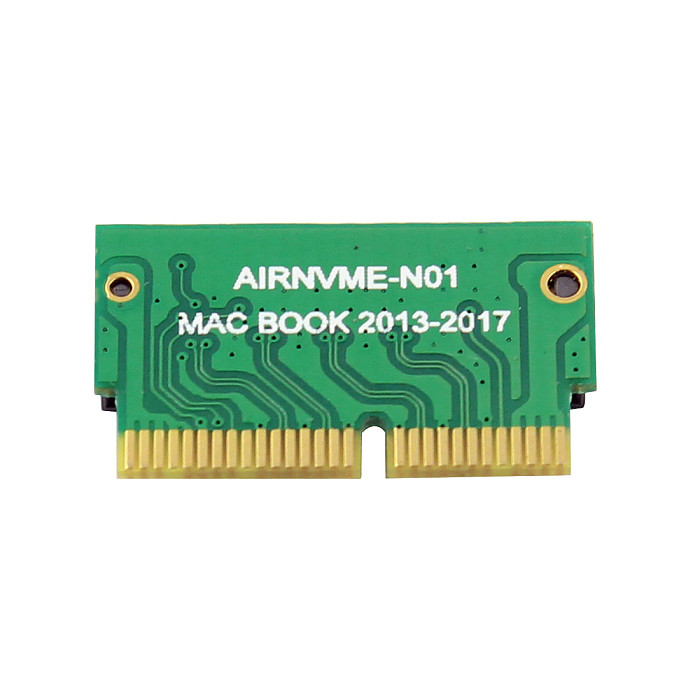

XT-XINTE M Key M.2 PCIe NGFF AHCI 2280 SSD 12+16Pin Adapter Card as SSD for MACBOOK Air 2013 2014 2015 A1465 A1466 Mac Pro A1398 A1502

XT-XINTE M Key M.2 PCIe NGFF AHCI 2280 SSD 12+16Pin Adapter Card as SSD for MACBOOK Air 2013 2014 2015 A1465 A1466 Mac Pro A1398 A1502 Item NO: F27310

US$ 2.92
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost
  • XT-XINTE M Key M.2 PCIe NGFF AHCI 2280 SSD 12+16Pin Adapter Card as SSD for MACBOOK Air 2013 2014 2015 A1465 A1466 Mac Pro A1398 A1502
Specifications
Product Name XT-XINTE M Key M.2 PCIe NGFF AHCI 2280 SSD 12+16Pin Adapter Card as SSD for MACBOOK Air 2013 2014 2015 A1465 A1466 Mac Pro A1398 A1502
Item NO F27310
Weight 0.0100 kg = 0.0220 lb = 0.3527 oz
Category Consumer Electronics > Computer Cable and Adapter
Brand XT-XINTE
Creation time 2019-01-15

Detail

XT-XINTE M Key M.2 PCIe NGFF AHCI 2280 SSD 12+16Pin Adapter Card as SSD for MACBOOK Air 2013 2014 2015 A1465 A1466 Mac Pro A1398 A1502

Features:

1. This product only late 2013 version Macbook air A1465 and A1466,late 2013 version MacBook Pro retina A1398 A1502,Please confirm that your laptop is fit.The adapter card only support 22*80 mm size of M.2 NGFF PCIe x4 AHCI SSD,it can not support M.2 NGFF PCIe x4 NVMe solid state drives.
2. The speed and other properties is not changed,only form conversion interface.
3. No need extra power adapter and any drivers

This product only supports the following computer models:
Late 2013 version MacBook Pro retina A1398 A1502 (ME864 ME865 ME866 ME293 ME294),
2014 version MacBook Pro retina  A1502 A1398 (MGX72 MGX82 MGX92 MGXA2 MGXC2),
2015 version MacBook Pro retina A1502 A1398(MF839 MF840 MF841 MJLQ2 MJLT2),
2013-2014 version MacBook Air A1465 A1466(MD711 MD712 MD760 MD761)
2015 version MacBook Air A1465 A1466(MJVM2 MJVP2 MJVE2 MJVG2),
Mac Pro ME253 MD878,iMAC A1419(Late 2013 and newer).

Package contents:
M  key M.2 to 12+16Pin interface card  x1


Warning:

1.Support Following M.2 (NGFF) PCIE-AHCI SSD:

Samsung XP941 (MZHPU128HCGM MZHPU256HCGL MZHPU512HCGL)
Samsung SM951 PCIE-AHCI (MZHPV128HDGM MZHPV256HDGL MZHPV512HDGL)
Kingston SHPM2280P2/ 240G/ 480G

Only newest MAC OS support following NGFF PCIe SSD:

SM951 PCIE-NVME (MZVPV128HDGM MZVPV256HDGL MZVPV512HDGL),
PM951 PCIE-NVME (MZFLV128HCGR MZFLV256HCHP MZFLV512HCJH),

950 PRO (MZVKV256 MZVKV512) and other PCIE-NVMe SSD.

2. This is an alternative product,It is different with your original hard disk.In addition, please turn off the sleep function of the system after installing the operating system.


Note:
1: Only sales adapter card,images of SSD and mainboard is not sales!
2: The adapter card only support 22*80 mm size of M.2 NGFF PCIe x4 AHCI SSD,it can not support M.2 NGFF PCIe x4 NVMe solid state drives.
3: The power-saving sleep mode may not be able to use.please enter "System Preferences"/ "Energy Saver",then close"Power Adapter"/ "Put hard disks to sleep when possible" and"Battery"/ "Put hard disks to sleep when possible".Then moved the “Turn display off after” arrow to “Never” position.
4: Please open the trim function after Mac OS installed, it does not need to manually open if install Windows operating system.
5:Pls prepare USB disk driver before using the adapter.

About MacBook Air SSD interface standard:
1: 2010 and 2011 version MacBook Air SSD is 6+12 pin, only one side have  contact,size is 109 mm*24 mm.It's SATA interface.
2: 2012 version MacBook Air SSD is 7+17 pin, size is 109 mm*24 mm.2012 version MacBook Pro SSD is 7+17 pin, size is 89 mm*33 mm.It's SATA interface.
3: 2013 and 2014 and 2015 version MacBook Air SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*24 mm.It's PCIe X4 interface.

4: 2013 and 2014 and 2015 version MacBook Pro SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*33 mm.It's PCIe X4 interface.
