Home>DIY RC Drone Accessories>ESC>QWinOut 4pcs 30A Speed Controller ESC + 4pcs A2212 1400KV Brushless Motor for DIY RC Aircraft QuadCopter Drone Accessories

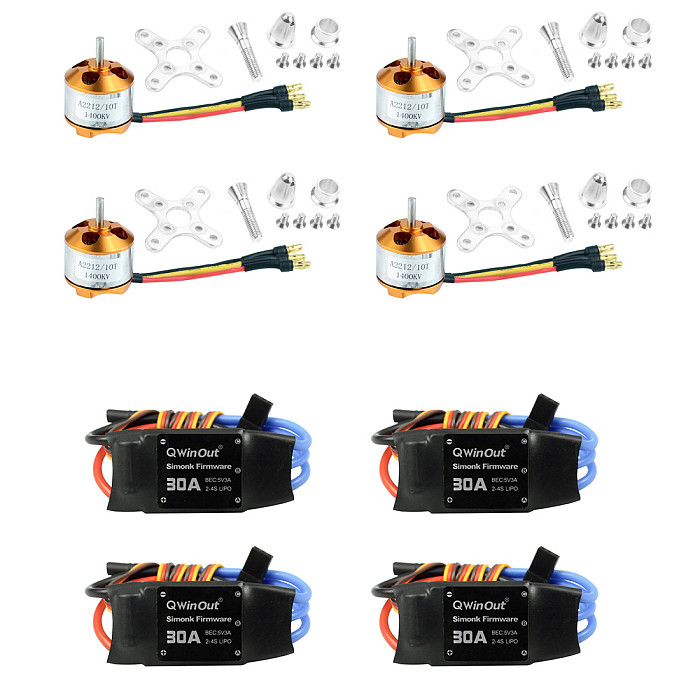

QWinOut 4pcs 30A Speed Controller ESC + 4pcs A2212 1400KV Brushless Motor for DIY RC Aircraft QuadCopter Drone Accessories Item NO.: F02047-E

Name: QWinOut 4pcs 30A Speed Controller ESC + 4pcs A2212 1400KV Brushless Motor for DIY RC Aircraft QuadCopter Drone Accessories
Brand: QWINOUT
SKU: F02047-E
Price: 30.26 USD
Availability: InStock

Write a Review

US$ 30.26

US$ 35.60 Save US$ 5.34 (15% Off)

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Add to Cart

Product Name	QWinOut 4pcs 30A Speed Controller ESC + 4pcs A2212 1400KV Brushless Motor for DIY RC Aircraft QuadCopter Drone Accessories
Item NO.	F02047-E
Weight	0.386 kg = 0.8510 lb = 13.6157 oz
Category	DIY RC Drone Accessories > ESC
Brand	QWINOUT
Creation Time	2021-12-25

Specification:
1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.

Features:
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: reset all the programmable items to their default settings.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

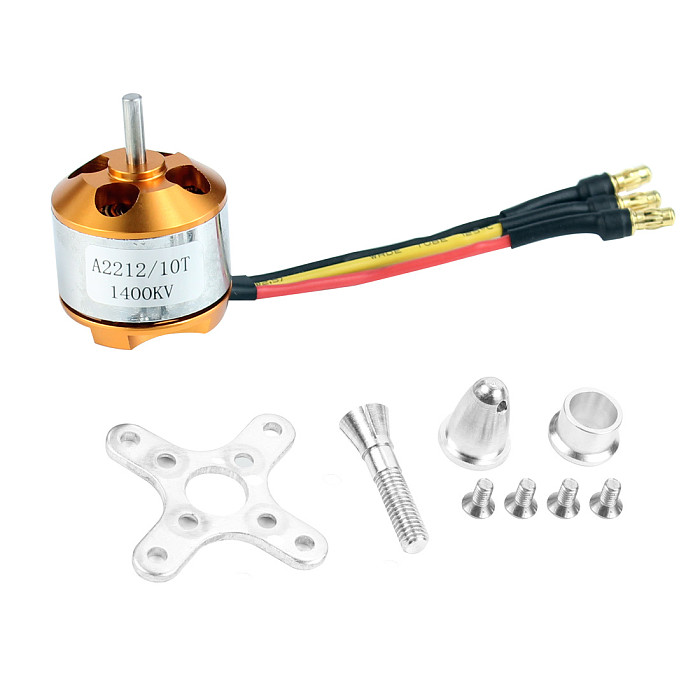

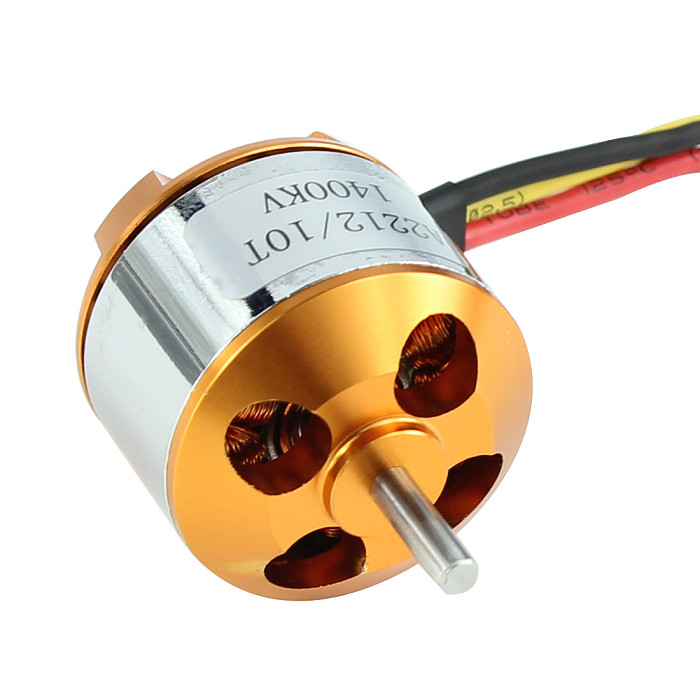

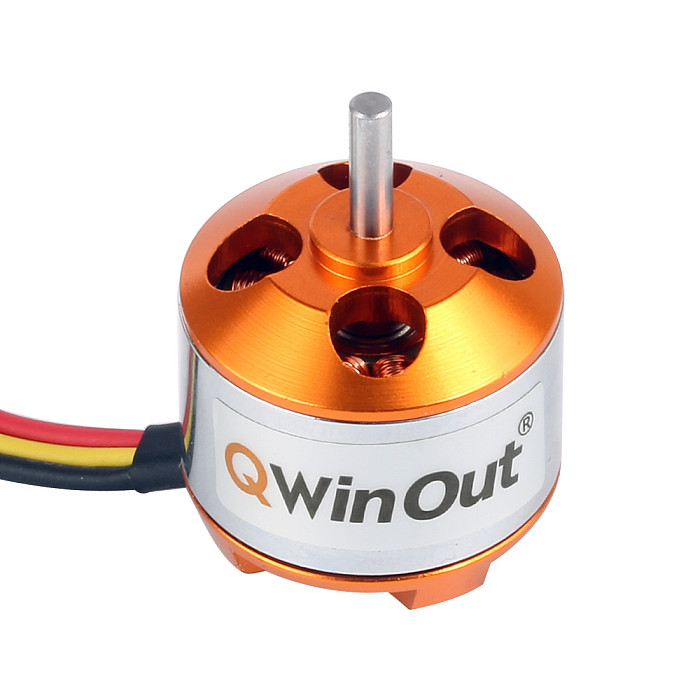

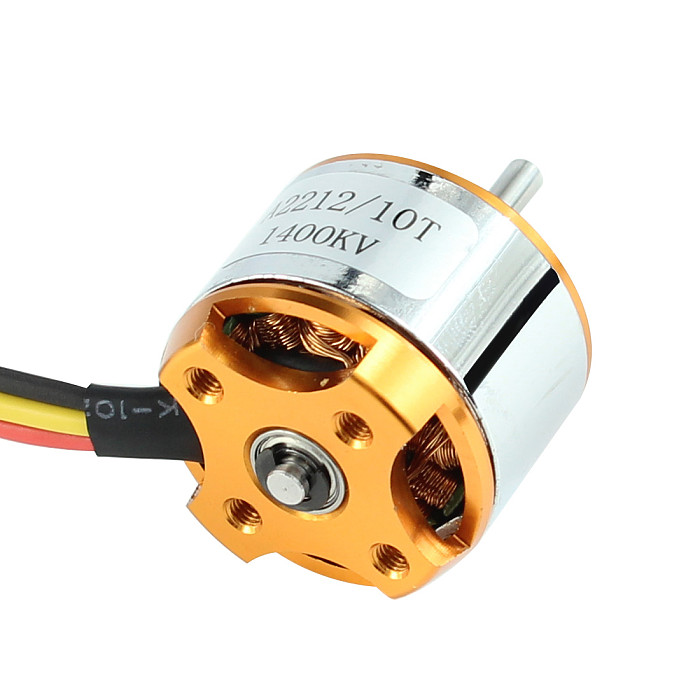

Name: A 2212 A2212 1400KV Brushless Outrunner Motor W/ Mount
For: RC Aircraft / KKmulticopter 4-axle/6-axle Quadcopter

KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm

Weight: 47g
