Home>DIY RC Drone Accessories>ESC>Original Original Hobbywing SKYWALKER Series 2-6S 12A 20A 40A 50A 60A Brushless ESC Speed Controller UBEC for RC Quadcopter Drone

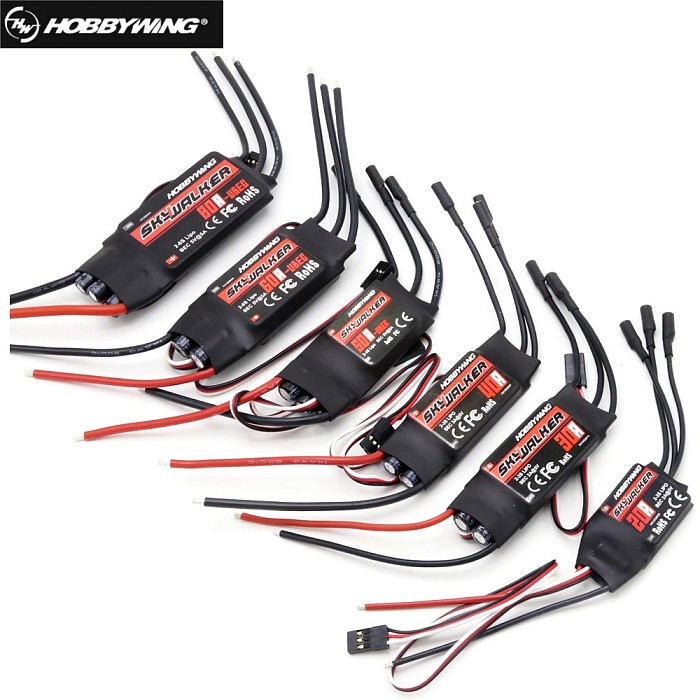

Original Original Hobbywing SKYWALKER Series 2-6S 12A 20A 40A 50A 60A Brushless ESC Speed Controller UBEC for RC Quadcopter Drone Item NO.: F01846 F17834 F17836 F17555 F17835

Sold (54)

US$ 10.11 ~ US$ 11.23

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 11.23	US$ 10.67	US$ 10.11

Version: 40A 80A UBEC 20A 60A UBEC 50A UBEC

Customized Requirements

Quantity: Stock ( 49999972 )

Estimate Shipping Cost

Product Name	Original Original Hobbywing SKYWALKER Series 2-6S 12A 20A 40A 50A 60A Brushless ESC Speed Controller UBEC for RC Quadcopter Drone
Item NO.	F01846 F17834 F17836 F17555 F17835
Weight	0.0616 kg = 0.1358 lb = 2.1729 oz
Category	DIY RC Drone Accessories > ESC
Brand	Hobbywing
Creation Time	2017-07-25

Original Hobbywing SKYWALKER Series 2-6S 12A 20A 40A 50A 60A Brushless ESC Speed Controller UBEC for RC Quadcopter Drone

Package list:

1xESC

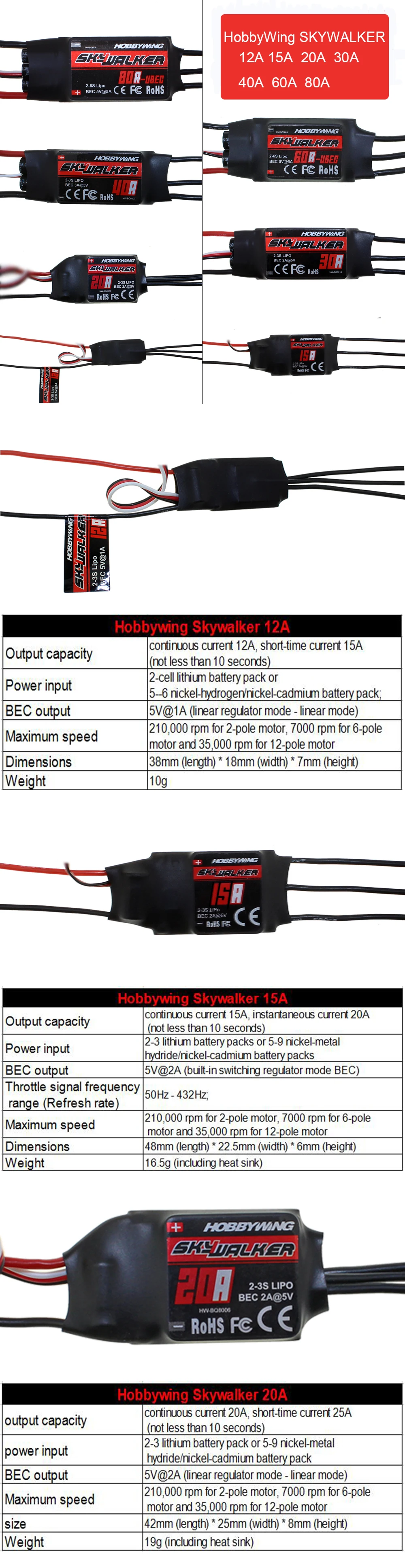

20A description
1 Output capability: continuous current 20A, short-time current 25A(not less than 10 seconds);
2 Power input: 2-3 lithium batteries or 5-9 nickel-hydro/nickel-cadmium batteries;
3BEC output: 5V@2A(Linear mode-linear mode);
4 Maximum speed: 210,000 pole Motors per minute, 70,000 pole Motors per minute, and 35,000 pole Motors per minute;
Size: 42mm(long) * 25mm(wide) * 8mm(high);
6 Weight: 19g(including heat sink)

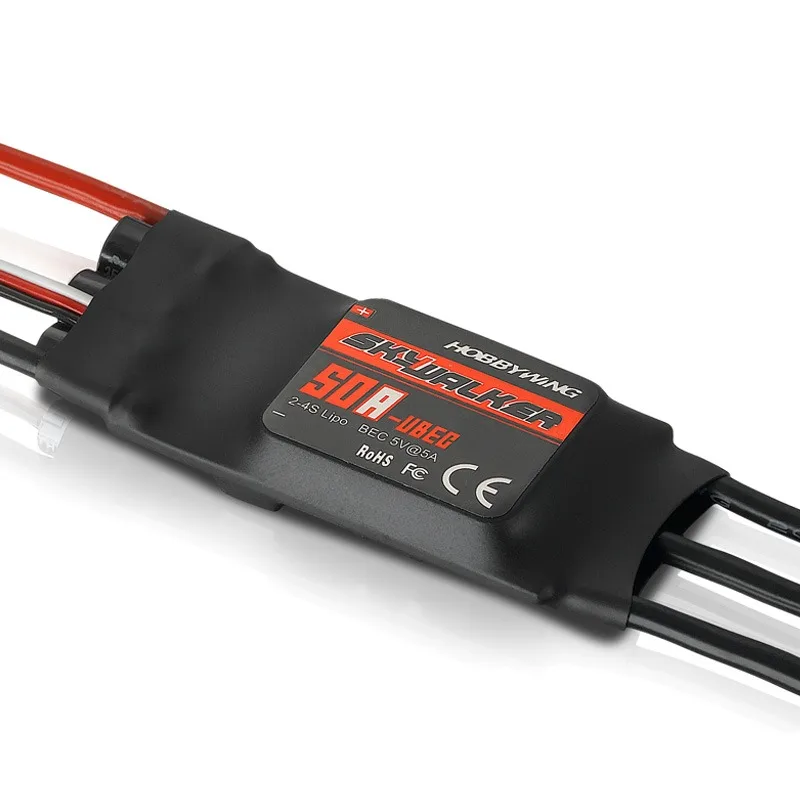

50A Description:(2-4S)(5V5A)

1 Output capability: continuous current 50A, short-time current 65A(not less than 10 seconds);
2 Power input: Section 2-4 lithium batteries
3BEC output: 5V@5A(built-in switch voltage control mode BEC);
4 Trace rate range: 50Hz-432Hz;
5 Maximum speed: 210,000 pole Motors per minute, 70,000 pole Motors per minute, and 35,000 pole Motors per minute;
Size: 65mm(long) * 25mm(wide) * 12mm(high);
7 Weight: 43g(including heat sink)

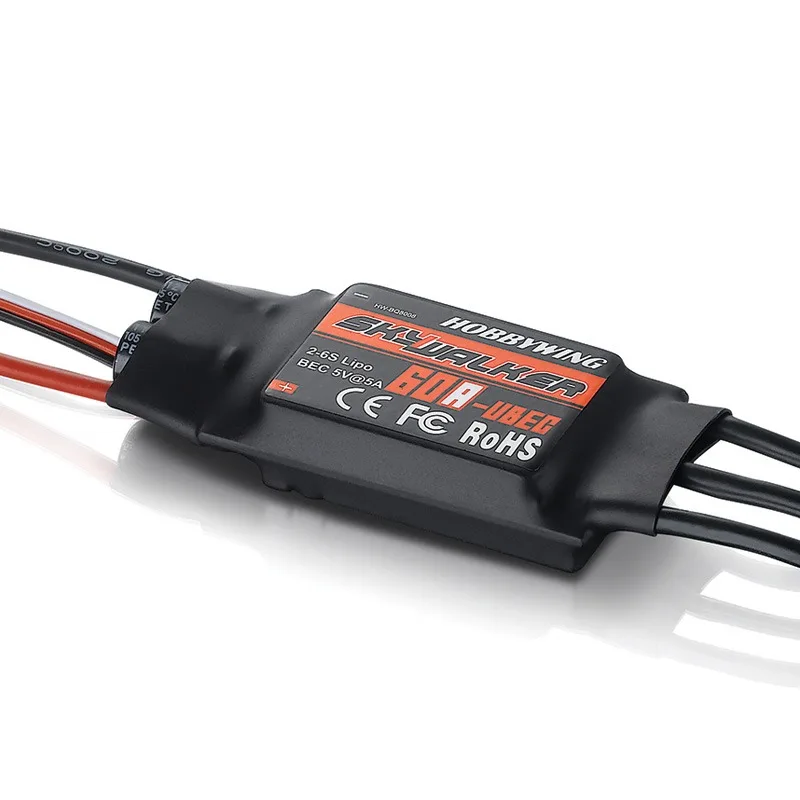

60A description

1 Output capability: continuous current 60A, short-time current 80A(not less than 10 seconds);
2 Power input: 2-6 lithium batteries or 5-118 nickel-metal hydrogen/nickel-cadmium batteries;
3BEC output: 5V@5A(built-in switch voltage control mode BEC);
4 Trace rate range: 50Hz-432Hz;
5 Maximum speed: 210,000 pole Motors per minute, 70,000 pole Motors per minute, and 35,000 pole Motors per minute;
Size: 77mm(long) * 35mm(wide) * 14mm(high);
7 Weight: 63g(including heat sink)
