JHEMCU RP4-TD ELRS 2.4GHz True Diversity Receiver ESP32 PICO D4 DUAL SX1280 For Long Range FPV Racing Drone RX Airplane

JHEMCU RP4-TD ELRS 2.4GHz True Diversity Receiver ESP32 PICO D4 DUAL SX1280 For Long Range FPV Racing Drone RX Airplane Item NO.: F53190

US$ 13.48 ~ US$ 14.98
Quantity 0-3 4-50 51-100
Discount 0% OFF 5% OFF 10% OFF
Price US$ 14.98 US$ 14.23 US$ 13.48
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JHEMCU RP4-TD ELRS 2.4GHz True Diversity Receiver ESP32 PICO D4 DUAL SX1280 For Long Range FPV Racing Drone RX Airplane
Item NO. F53190
Weight 0.02 kg = 0.0441 lb = 0.7055 oz
Category DIY RC Drone Accessories
Brand JHEMCU
Creation Time 2024-10-23

JHEMCU RP4-TD ELRS 2.4GHz True Diversity Receiver ESP32 PICO D4 DUAL SX1280 For Long Range FPV Racing Drone RX Airplane


ELRS diversity receiver adopts dual antenna dual reception, integrated dual signal backhaul, better reception effect and more stable signal. Built-in TCXO high-precision temperature-compensated crystal oscillator, using two RF channels to share the same crystal oscillator, providing a more synchronous and stable RF clock. All-round connection, not afraid of dead ends, better signal, more stable connection, not afraid of losing your phone.

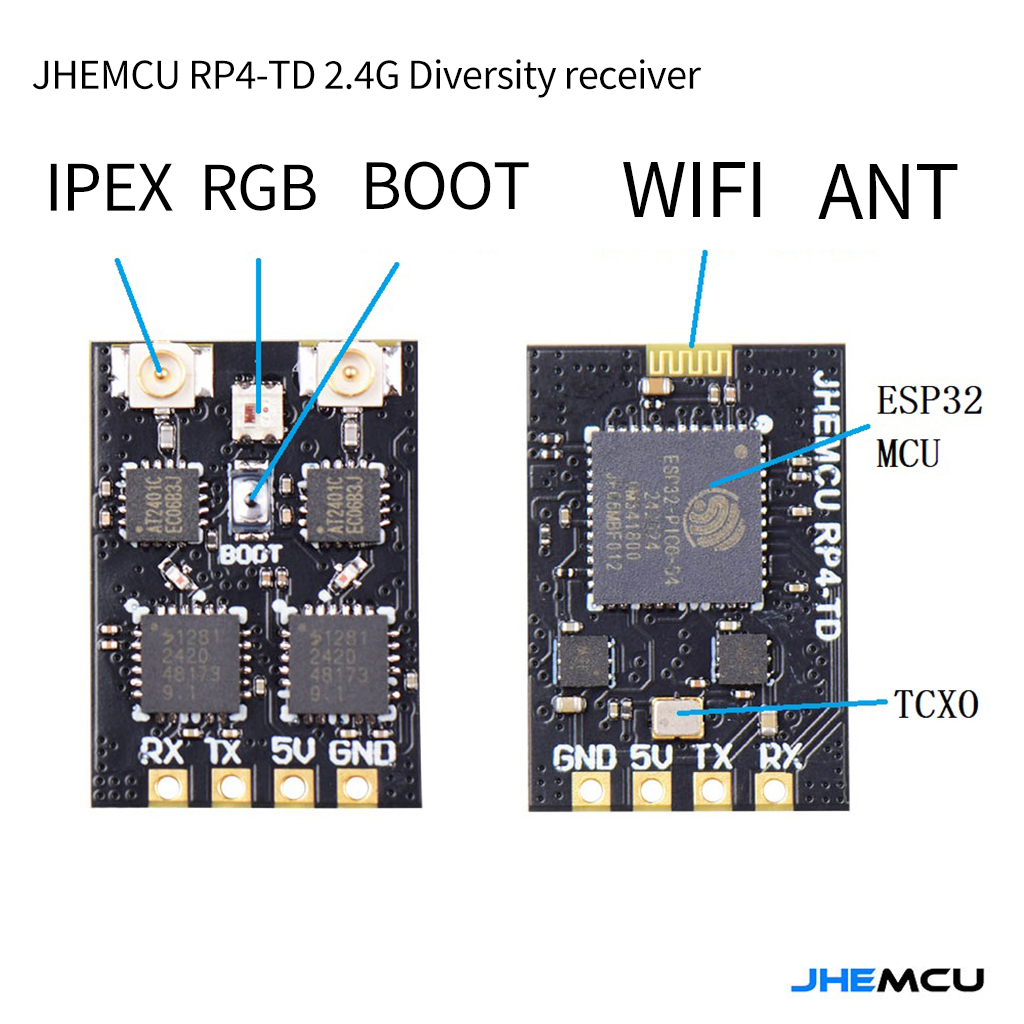

Name: JHEMCU RP4-TD 2.4G Diversity Receiver

MCU:ESP32 PICO D4,DUAL SX1280(1)

Antenna: IPEX MHF 1/U.FL

COMMUNICATION FREQUENCY: 2.4GHZ (2400-2480MHZ)

Telemetry power: 20dBm

Receiver protocol: CRSF

Input voltage: DC +5V

CURRENT: 120MA-200MA

SIZE: 13.5MM*19.5MM

Weight: 1.05g (without antenna)

Firmware version: ELRS V3.2

Packing List:
RP4-TD 2.4G Diversity Receiver *1

2.4G T-type antenna *2

Heat Shrink Tubing *1

Wire *4
