Description

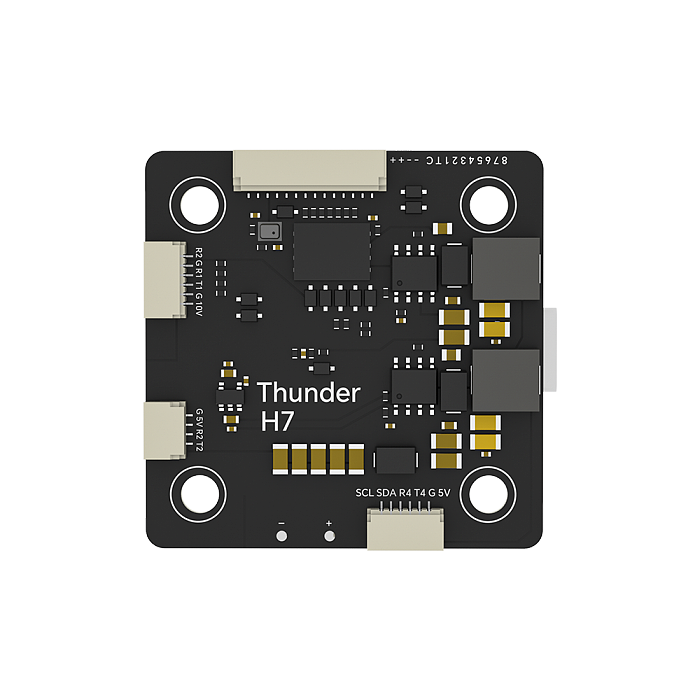

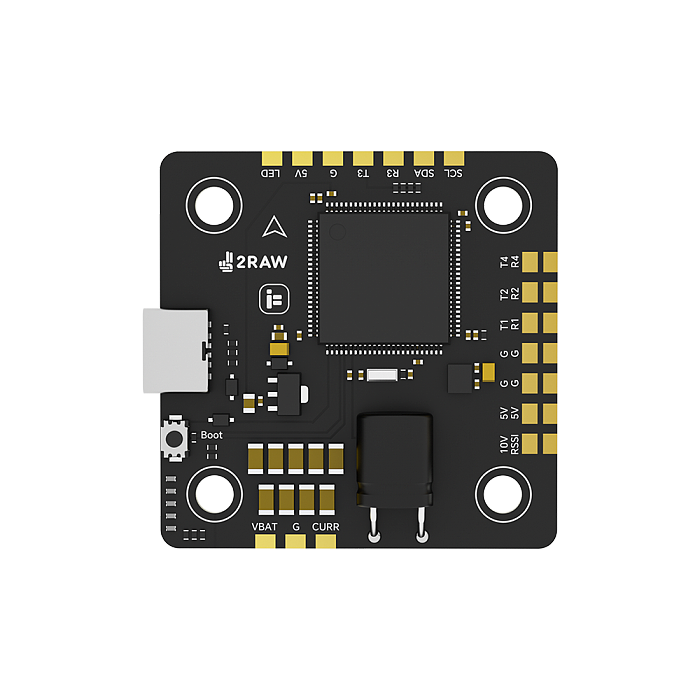

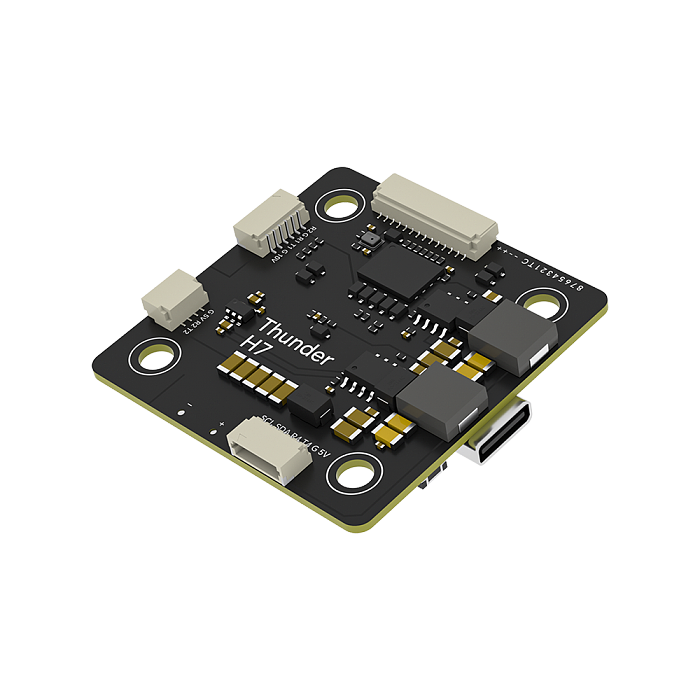

The 2RAW H7 Thunder represents a pioneering development in drone technology. It is distinguished as the first flight controller engineered to accommodate direct 12s input. The 2RAW H7 Thunder is crafted with an emphasis on durability and high performance, setting a new standard in flight controller design.
Features
High-Speed H7 Processor
Powered by a high-speed H7 processor chip, it provides precise D-shot timings for enhanced performance, even with x8 motor configurations.

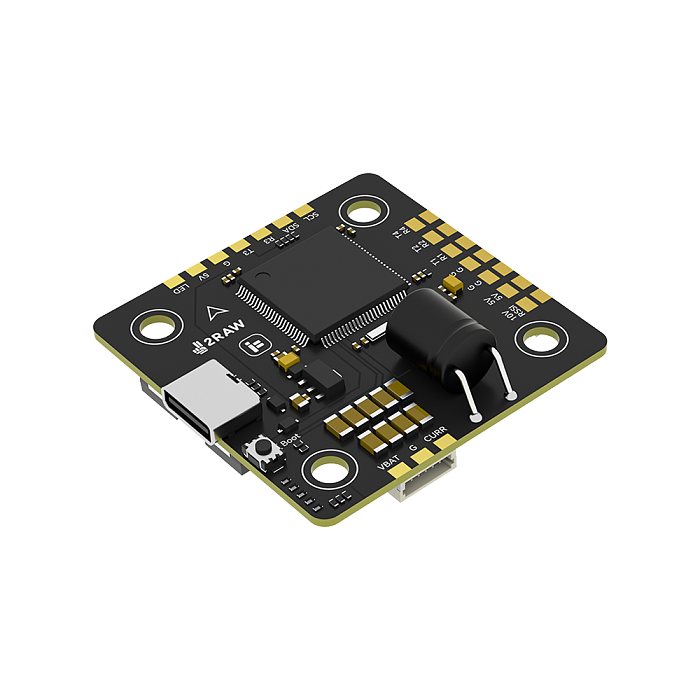

Exclusive Capacitor Filtration Slot
Features a unique capacitor filtration slot with a 63V 100uF capacitor for a clean electrical signal.
Versatile Design
Designed for versatility, it offers both plug-and-play options and solder pads, meeting the stringent requirements of any professional build.
Specifications
MCU: STM32H743
Gyro: ICM42688P
Barometer: SPL06-001
OSD Chip: No
Flash: 512MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
LED controller: Yes
Beeper pad: Yes
BF Firmware: 2RAW_THUNDER_H7
INAV Firmware: 2RAW_THUNDER_H7
Mount pattern: 30.5*30.5mm / φ4mm
Dimensions: 42*42 mm
Weight: 14g
BEC: 5V 1.5A / 10V 1.5A (Burst: 2A/120s)
Wiring Suggestion
UART1 for VTX HD
UART2 for Receiver
UART3 for Other sensors that require a serial port
UART4 for GPS
UART6 for ESC Telemetry
Packing List
1 x Thunder H7 Flight Controller
1 x FC connectors (as above)
1 x silicon grommets
