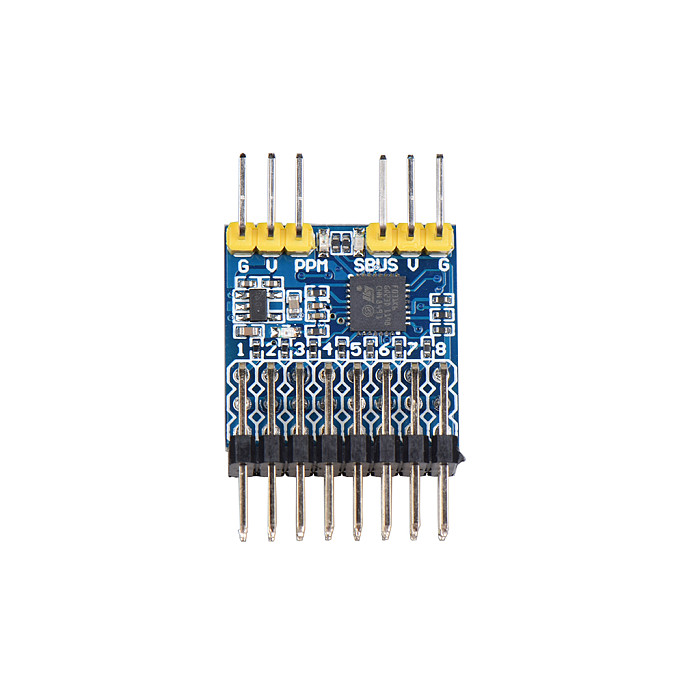

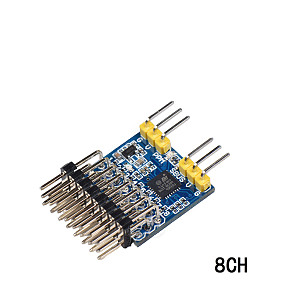

JHEMCU SPP-SBUS PPM PWM Signal Conversion Module Interchanger For RC Remote Control Receiver

JHEMCU SPP-SBUS PPM PWM Signal Conversion Module Interchanger For RC Remote Control Receiver Item NO.: F47061

Write a Review
US$ 5.52
US$ 5.81 Save US$ 0.29 (5% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • JHEMCU SPP-SBUS PPM PWM Signal Conversion Module Interchanger For RC Remote Control Receiver
Product Name JHEMCU SPP-SBUS PPM PWM Signal Conversion Module Interchanger For RC Remote Control Receiver
Item NO. F47061
Weight 0.015 kg = 0.0331 lb = 0.5291 oz
Category DIY RC Drone Accessories > Remote Control
Creation Time 2022-04-13

JHEMCU SPP-SBUS PPM PWM Signal Conversion Module Interchanger For RC Remote Control Receiver


The high-performance SPP converter produced by Jinhang Electronics, the module's wide voltage design supports up to 20V input, and adopts 32-bit single-chip microcomputer to complete signal acquisition, processing and conversion. The stability and speed are far superior to ordinary 8-bit single-chip microcomputer, and the input signal is automatically recognized without manual. Switch, plug and play, status indication is simple and clear, support 8 channels of input / output.



parameter:

Input voltage: 3.3-20V

Current: 15MA

Dimensions: 21*21MM

Weight: 4.1 grams



input signal:

PPM (CPPM)

PWM (common receiver signal)

SBUS (including futaba-R7008SB series, FrSky, etc.)



Features:

Input SBUS signal and output PWM and PPM signals simultaneously

Input PWM signal and simultaneously output PPM and SBUS signals

Input PPM signal and output PWM and SBUS signals simultaneously



Indicator light:

When there is no signal input, the three indicators are all on (PPM green, SBUS blue, PWM red)

The input signal indicator flashes and the output signal indicator is always on.

For example, when the PPM signal is input, the PPM corresponding indicator flashes green, and the PWM red and SBUS blue signal indicators are always on.



Channel description:

1-8 channels are PWM signal input or output channels

SBUS channel is the SBUS signal input or output channel

PPM channel is PPM signal input or output channel



Wiring instructions:

When any one or more channels of the 1-8 channel input PWM signals, the corresponding PPM channel outputs the PPM signal, and the SBUS channel outputs the SBUS signal.

When the PPM channel inputs the PPM signal, it corresponds to the 1-8 channel output PWM signal, and the SBUS channel outputs the SBUS signal.

When the SBUS channel inputs the SBUS signal, it corresponds to the 1-8 channel output PWM signal, and the PPM channel outputs the PPM signal.





packing list:

SPP conversion module 1

8P*2.54MM*3 pin straight needle 1

8P*2.54MM*3 pin needles 1 piece

6P*2.54MM pin needles 1 piece

6P*2.54MM pin straight needle 1



Note: the pins are self-welding
