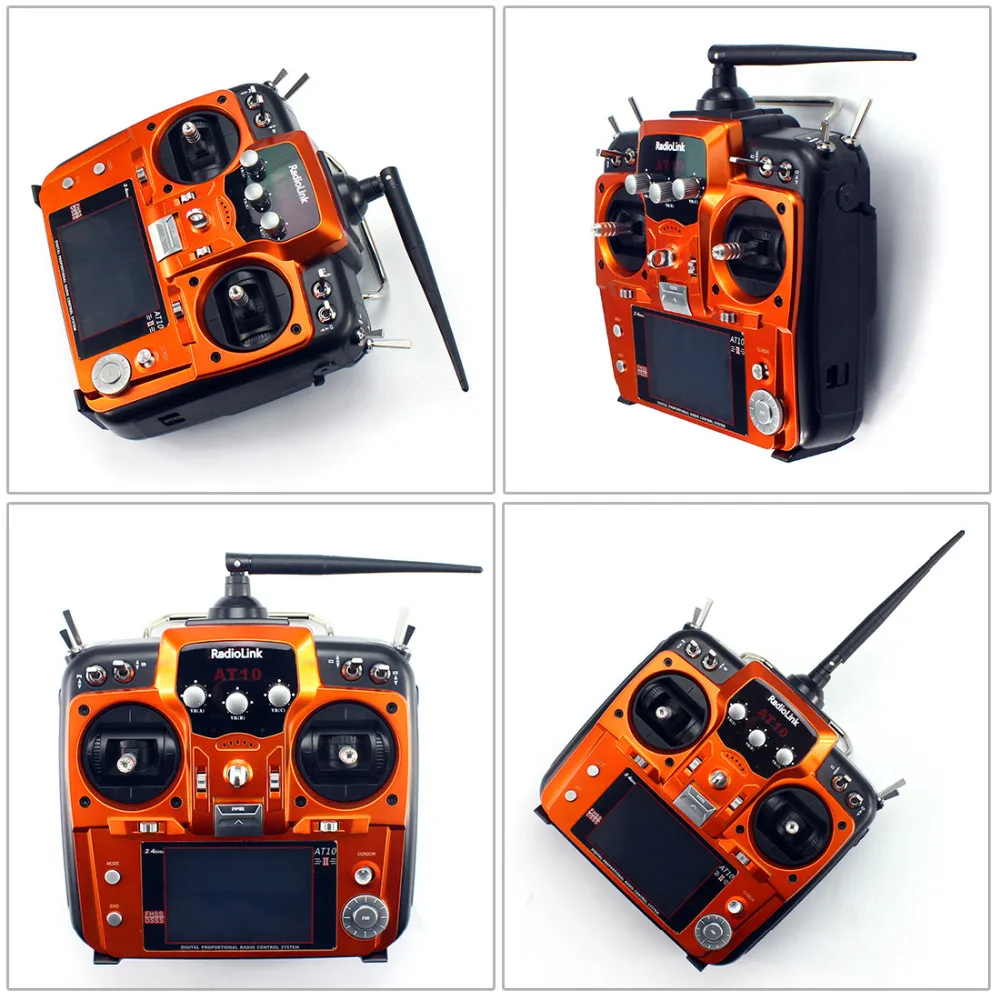

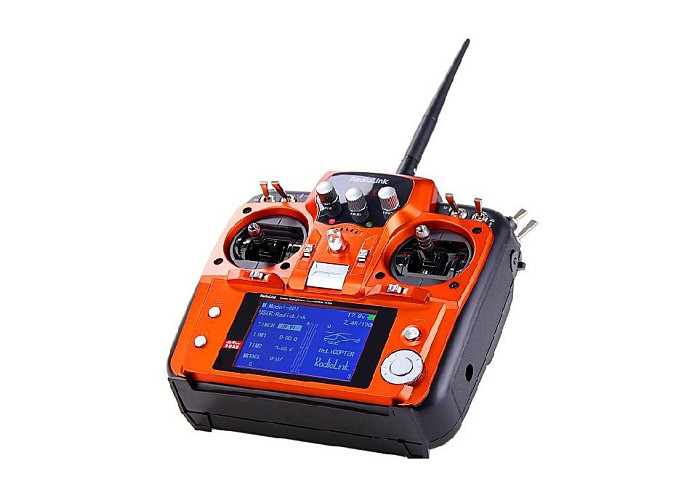

RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D for RC Helicopter

Copy and share this link on social network or send it to your friends

Copy

RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D for RC Helicopter Item NO.: F07627

Write a Review
US$ 91.80 (8% Off)
US$ 99.78 Save US$ 7.98
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D for RC Helicopter
Item NO. F07627
Weight 1.1803 kg = 2.6021 lb = 41.6339 oz
Category DIY RC Drone Accessories > Remote Control
Tag
Brand RadioLink
Creation Time 2017-07-25

RadioLink AT10II 2.4Ghz 10CH RC Transmitter w/ R10DII Receiver PRM-01 Voltage Return Module Mode 2 for RC Helicopter Quadcopter


Features:
Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.

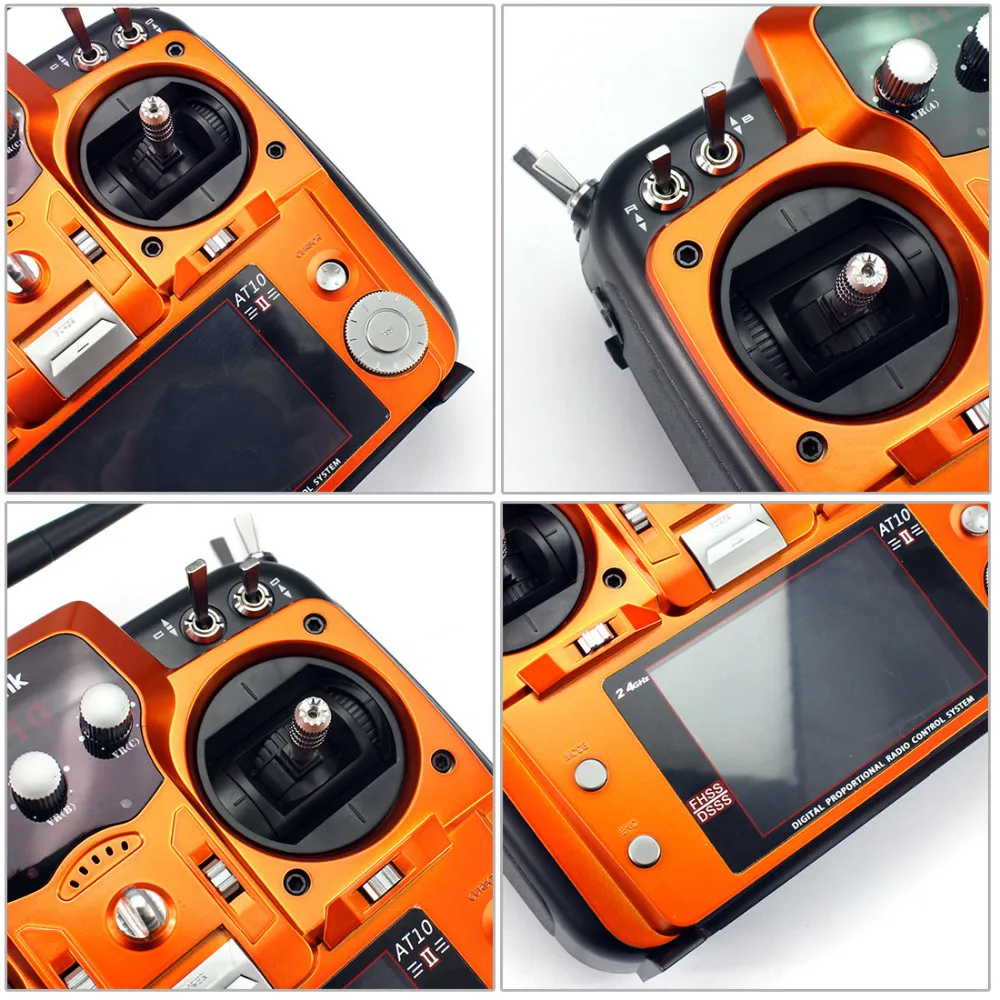

3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
Great control distance: 1.1km on the ground,2km in the sky.
Expansion feedback module,users can get plane details in real time.
Make very setting clear and exactly output result.
Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.


Technical Parameter:
1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
2.Modulation mode: QSPK;
3.Channel bandwidth: 5.0MHz;
4.Spread spectrum: DSSS;
5.Adjacent channel rejection: >38dBM;
6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing);
7.Operating Voltage: 8.6~15V;
8.Operating Current: <95mA;
9.Control distance: 800 meters ground;
10.Channel: 10 Channel,8~10 channel are customizable;
11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
12.Simulator model: under the simulator

Specifications:
Package size: 33 * 26 * 12cm / 13 * 10.2 * 4.7in
Package weight: 1276g / 2.8lb

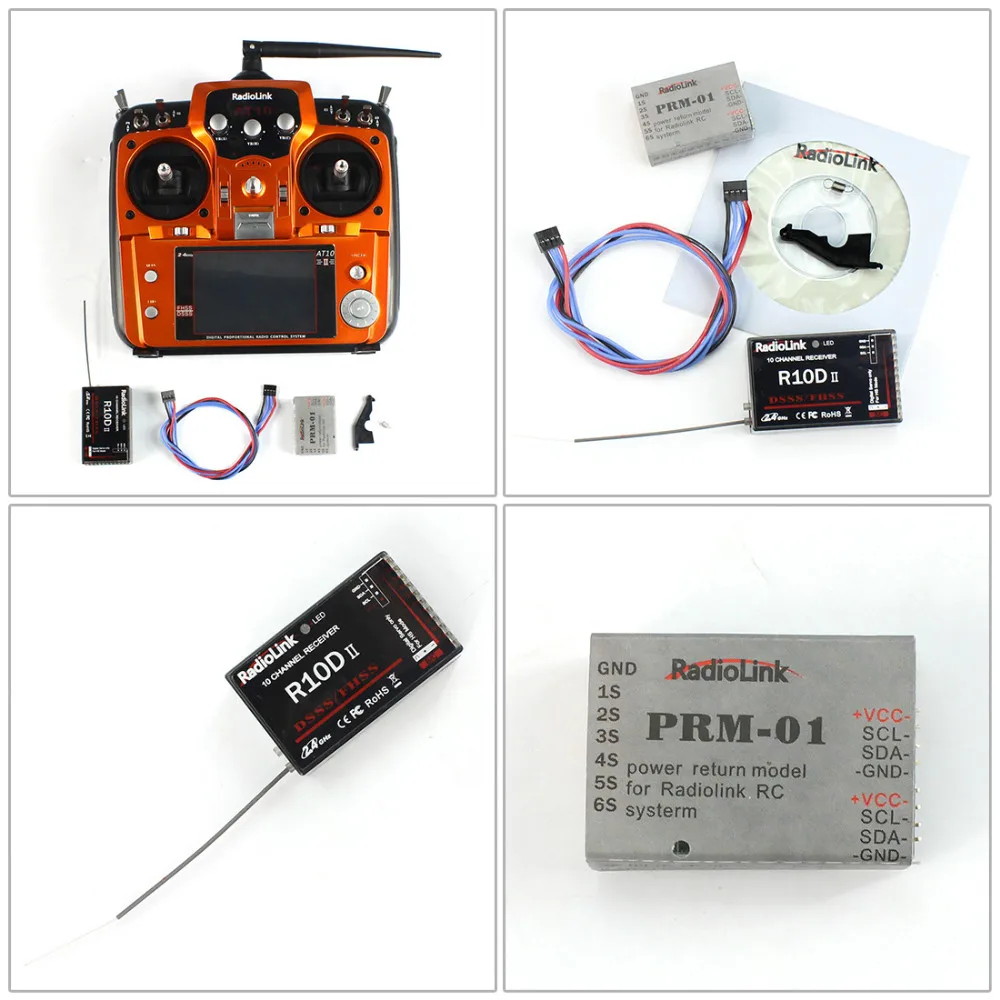

Package list:
1 * RadioLink AT10II 10CH Transimitter (Mode 2)
1 * R10DII 10Ch Receiver
1 * PRM-01 Voltage Return Module
1 * 4Pin Connector
1 * English Manual



-6-1-2-3-4-1(1)-5






Packaging Details
  • Unit Type: piece
  • Package Weight: 1.1kg (2.43lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
