Upgraded HobbyEagle A3 ProV2 RC Flight Controller 6-Axle Gyro & Stabilizer System for RC Airplane Fixed-wing Drones DIY Parts
-
Detail
- Product Name: Upgraded HobbyEagle A3 ProV2 RC Flight Controller 6-Axle Gyro & Stabilizer System for RC Airplane Fixed-wing Drones DIY Parts
- Item NO.: F44796
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: Hobbywing
- Creation Time: 2021-08-26
Upgraded HobbyEagle A3 ProV2 RC Flight Controller 6-Axle Gyro & Stabilizer System for RC Airplane Fixed-wing Drones DIY Parts

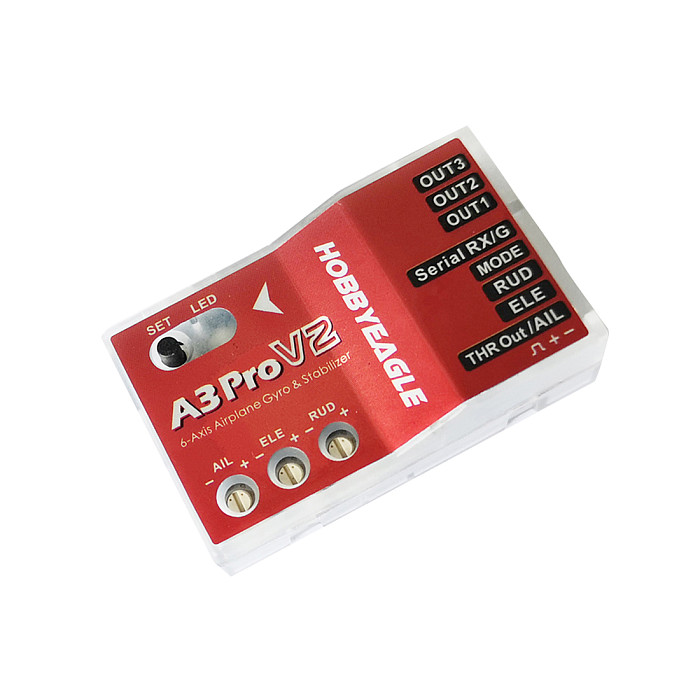

The new A3 Pro V2 is a high-performance, powerful 6-axis gyroscope and balancer specially designed for fixed-wing aircraft models. It supports a multi-protocol serial receiver, which can make it more convenient to connect with your receiver.
Digital serial receiver supporting standard PWM receiver, PPM and multiple protocols;
32-bit processor, high-precision 6-axis MEMS sensor, complete hardware design and stable new version of firmware, provide more reliable performance;
6 flight modes: gyroscope off mode, normal stabilization mode, attitude lock mode, angle mode, automatic balance mode and automatic hoist mode;
3 types of airfoil: conventional fixed wing, delta wing (flying wing), V-tail mixed control aileron, independent adjustment of the three-axis sensitivity of lifting and direction; Remote Master Gain remote total gain control;
* The firmware can be upgraded (special data cable needs to be purchased separately);
Supported serial receiver protocol:
PPM serial receiver
Futaba-Compatible S.Bus, compatible with Skye FrSky-Compatible SBUS, RadioLink-Compatible SBUS and WFLY WBUS
Spektrum-Compatible DSM/DSM-X 1024 satellite receiver
Spektrum-Compatible DSM/DSM-X 2048 satellite receiver
Spektrum-Compatible SRXL
Multiplex SRXL / JR XBUS Mode B
Graupner SUMD
FlySky-Compatible iBus
Parameters:
Main controller: 32-bit microprocessor
Sensor: High-precision MEMS 6-axis sensor
Gyro range: ±2000 dps
Acceleration measurement range: ±4g
PWM output specifications:
920uS ~ 2120uS, median 1520uS, frequency 50Hz ~ 333Hz
Working voltage: 4.8V ~ 8.4V
Working temperature: -10 ℃ ~ 50 ℃
Dimensions: 43×27×14mm
Weight: 10g (excluding connecting wire)
