Flysky Receiver FS-R7V FS-R7D 7CH/ FS-R4P 4CH/ FS-SR12 12CH 2.4G Receiver Can Be PPM/IBUS Output for Remote control Car Boat

Flysky Receiver FS-R7V FS-R7D 7CH/ FS-R4P 4CH/ FS-SR12 12CH 2.4G Receiver Can Be PPM/IBUS Output for Remote control Car Boat Item NO.: F49578/F49579

Write a Review
US$ 14.45
US$ 17.00 Save US$ 2.55 (15% Off)
Style
FS-R7V 7CH FS-R7D 7CH FS-R4P 4CH FS-SR12
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Flysky Receiver FS-R7V FS-R7D 7CH/ FS-R4P 4CH/ FS-SR12 12CH 2.4G Receiver Can Be PPM/IBUS Output for Remote control Car Boat
Item NO. F49578/F49579
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories > Flight Control
Creation Time 2023-03-28

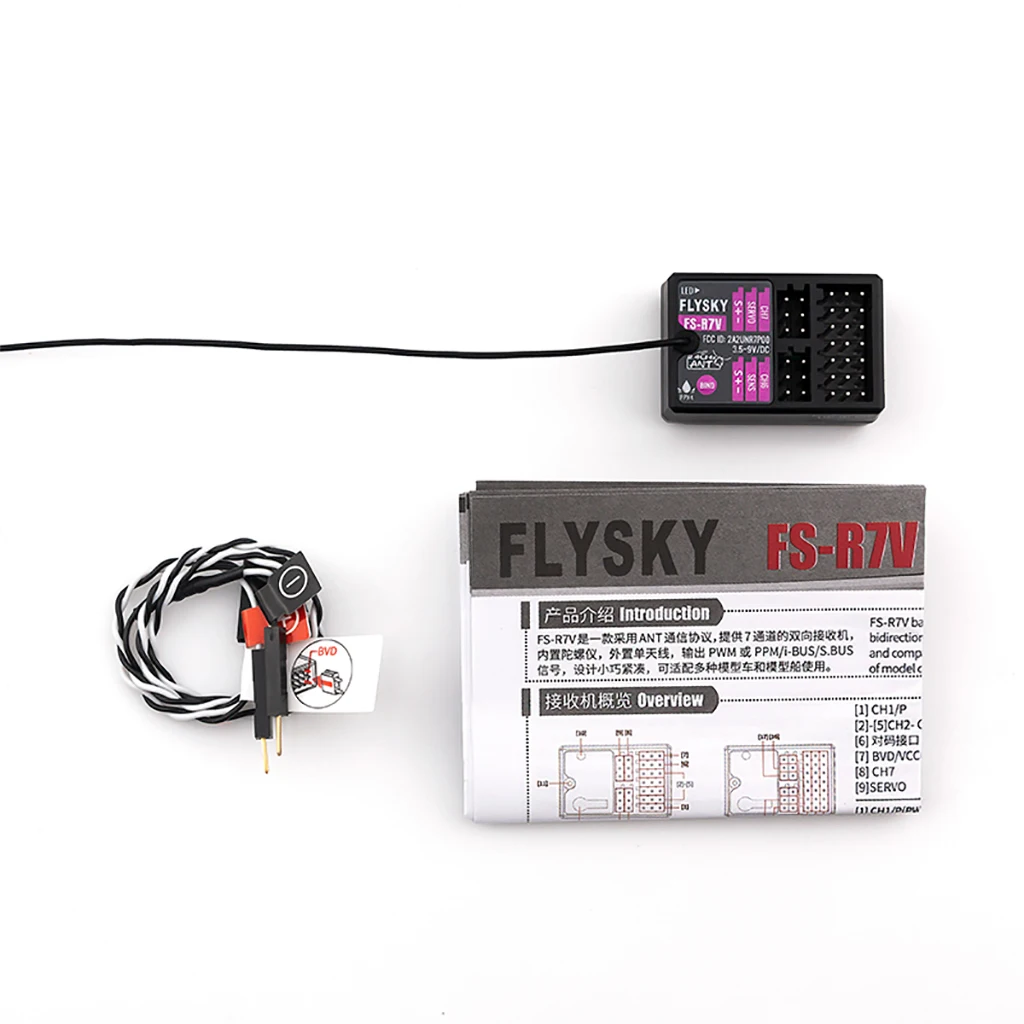

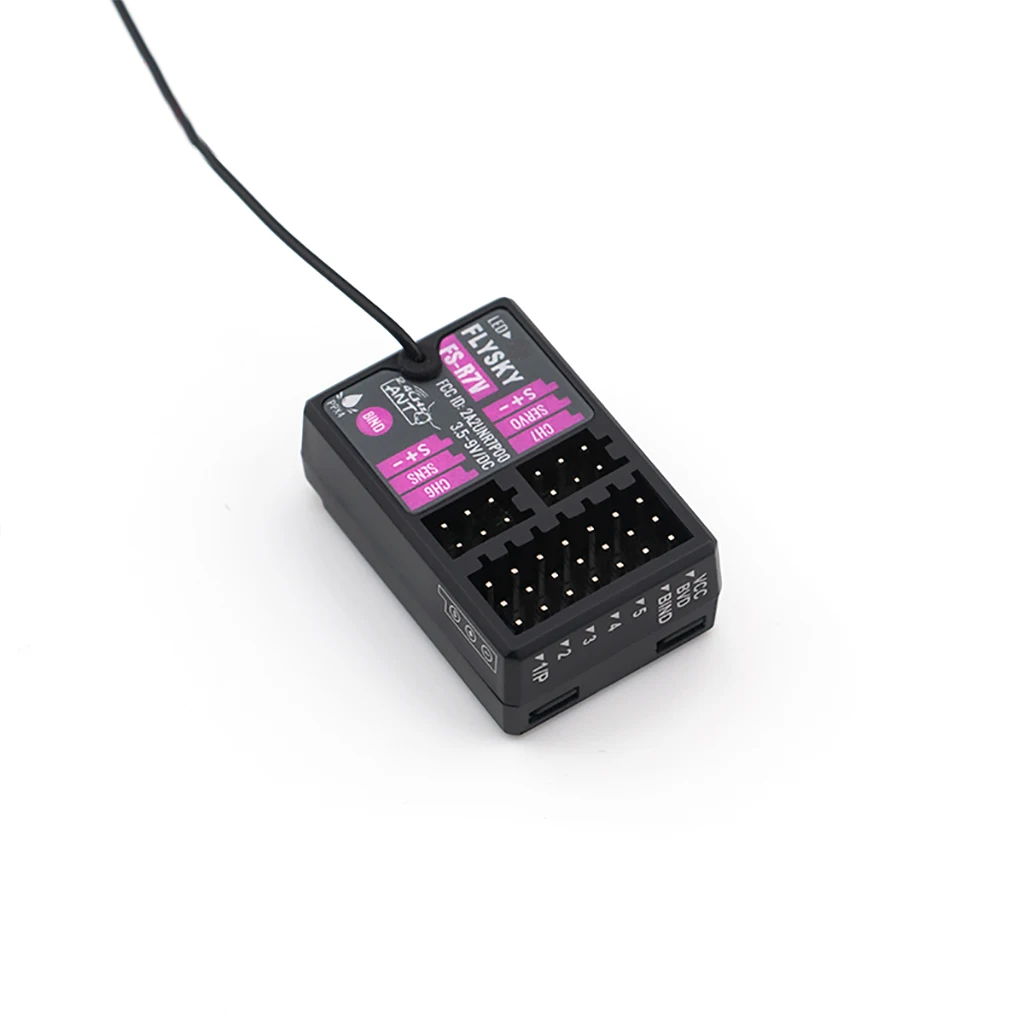

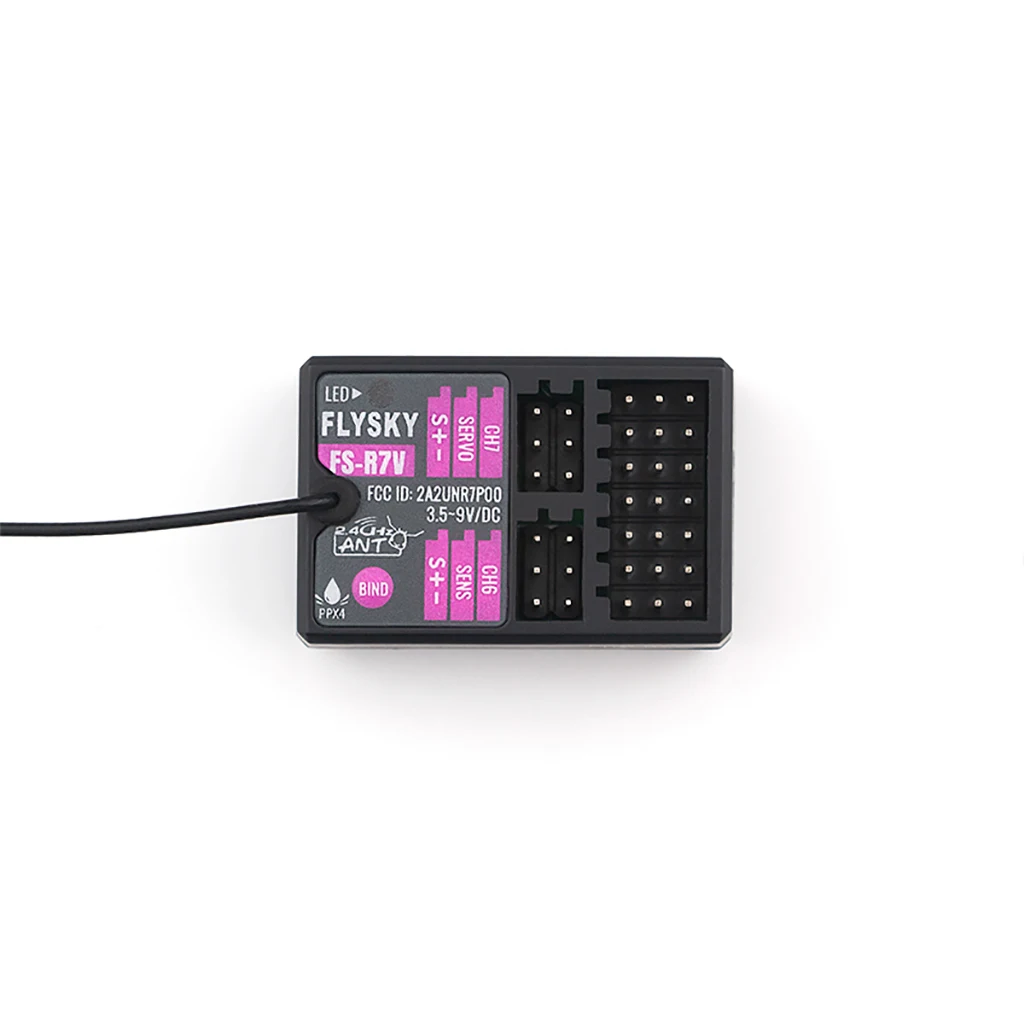

The FS-R7V is a bi-directional receiver offering 7 channels using the ANT communication protocol.

built-in

High performance gyroscope, external single antenna, PWM or PPM/i-BUS/S.BUS signal output.

Small and compact design, can be used with various model cars and boats.




Product Model: FS-R7V

●Transmitter: FS-G7P (ANT protocol supported gun control transmitter)

●Model: Car. Boat● Number of PWM channels: 7

●Radio frequency: 2.4GHz ISM

●Transmission power: <20dBm

●Antenna Type: Single Antenna

●Forced control distance: ≥300m (open and interference-free ground distance)

Wireless standard: ANT (Automatic Frequency Hopping Digital System)

Channel resolution: 4096 level

●Data output: PWM/PPM/-BUS/S.BUS

●Input power: 3.5- 9V/DC

●On-line update: supported

Temperature range: -10°C - +60°C

●Humidity range: 20%- 95%

●Waterproof rating: PPX4

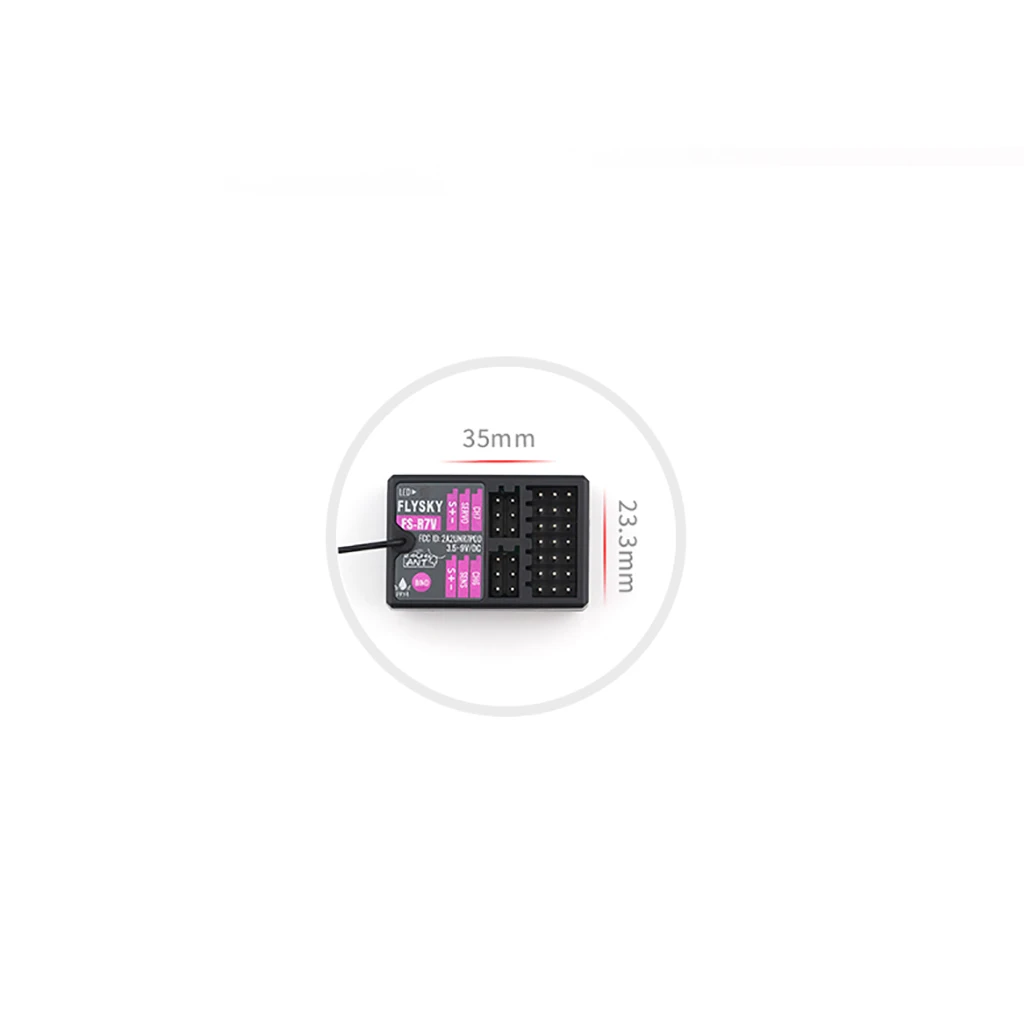

●Exterior dimensions: 35.0mm*23.3mm*13.3mm

●Weight: 8.0g

Certification: CE, FCC ID: 2A2UNR7P00

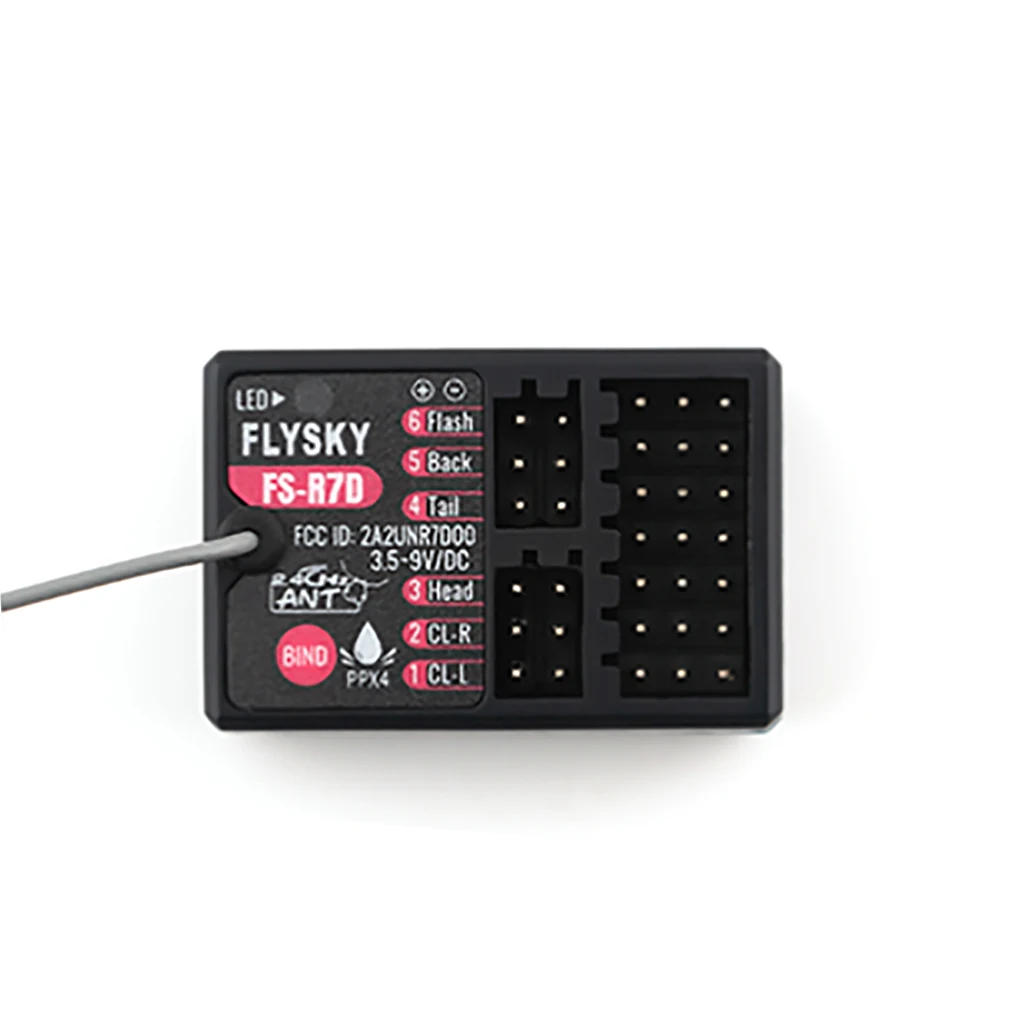

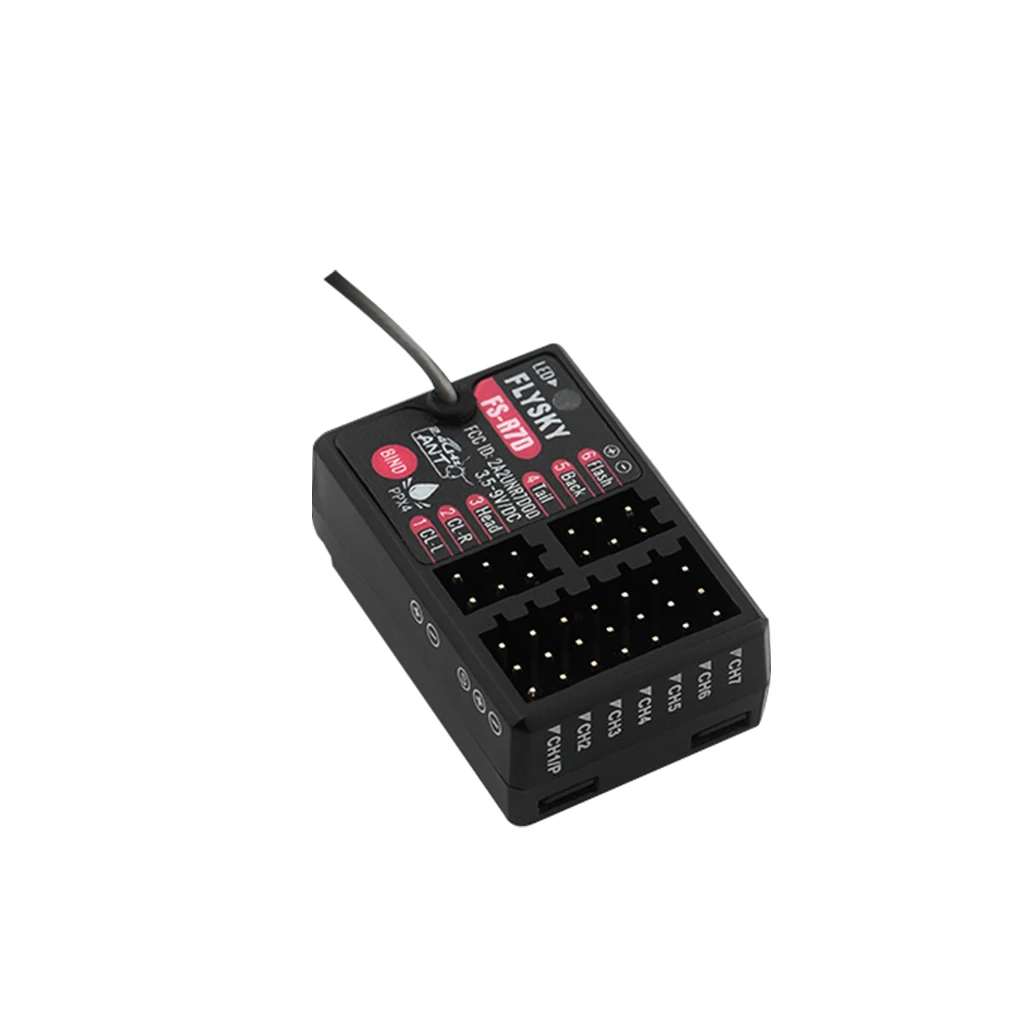

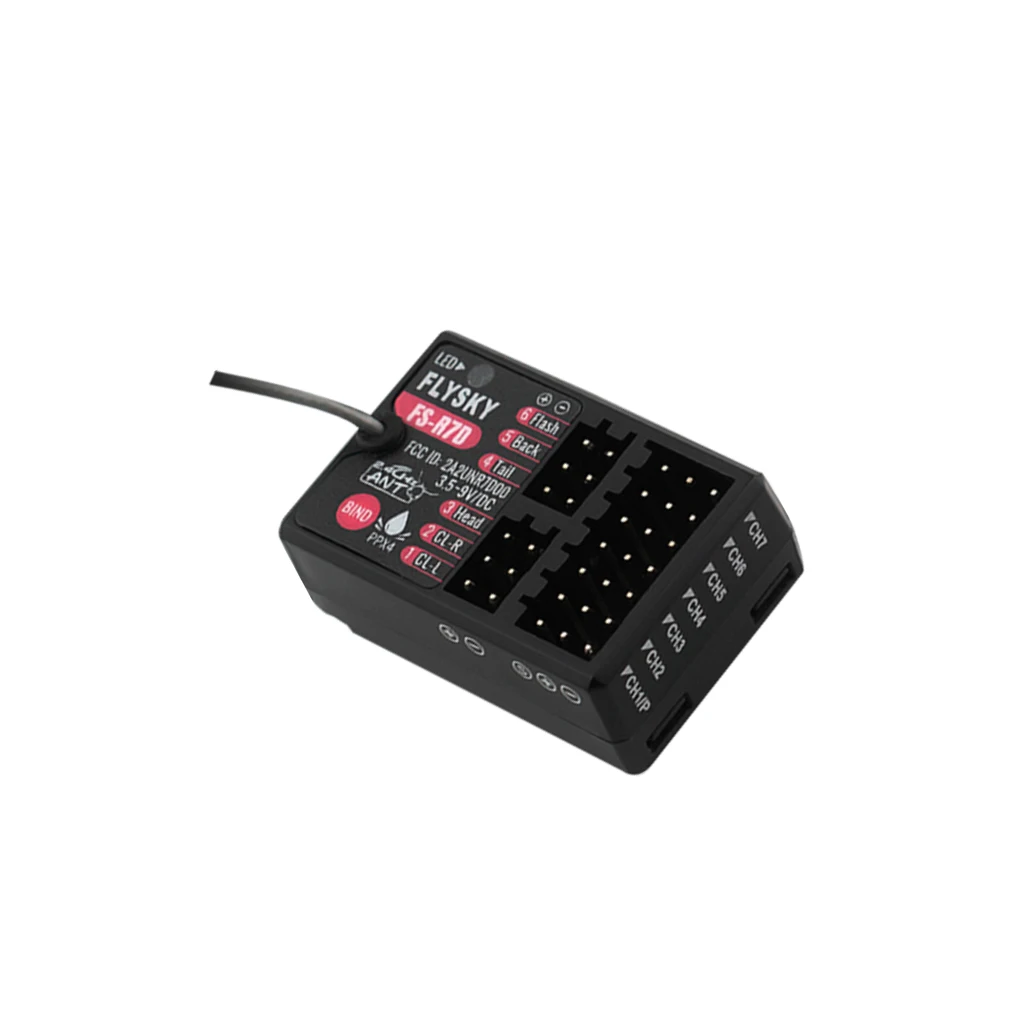

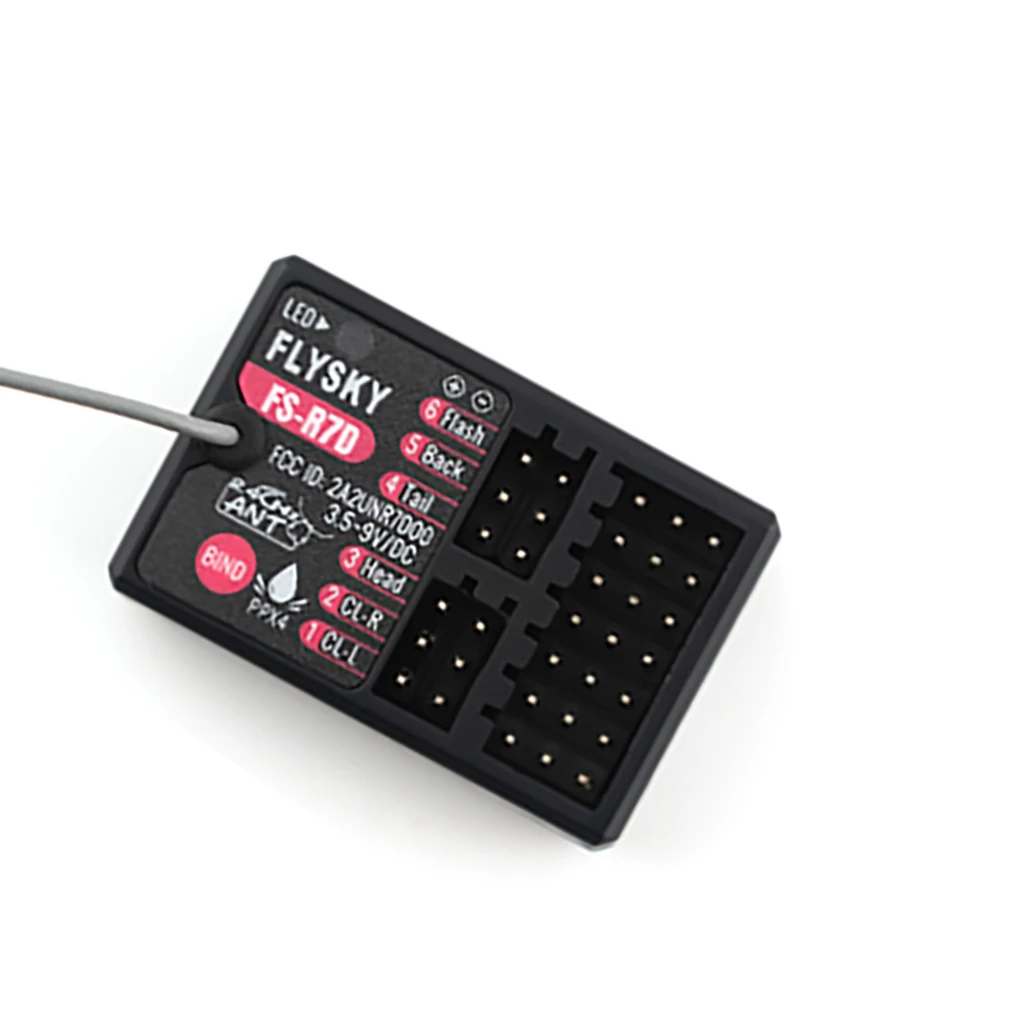

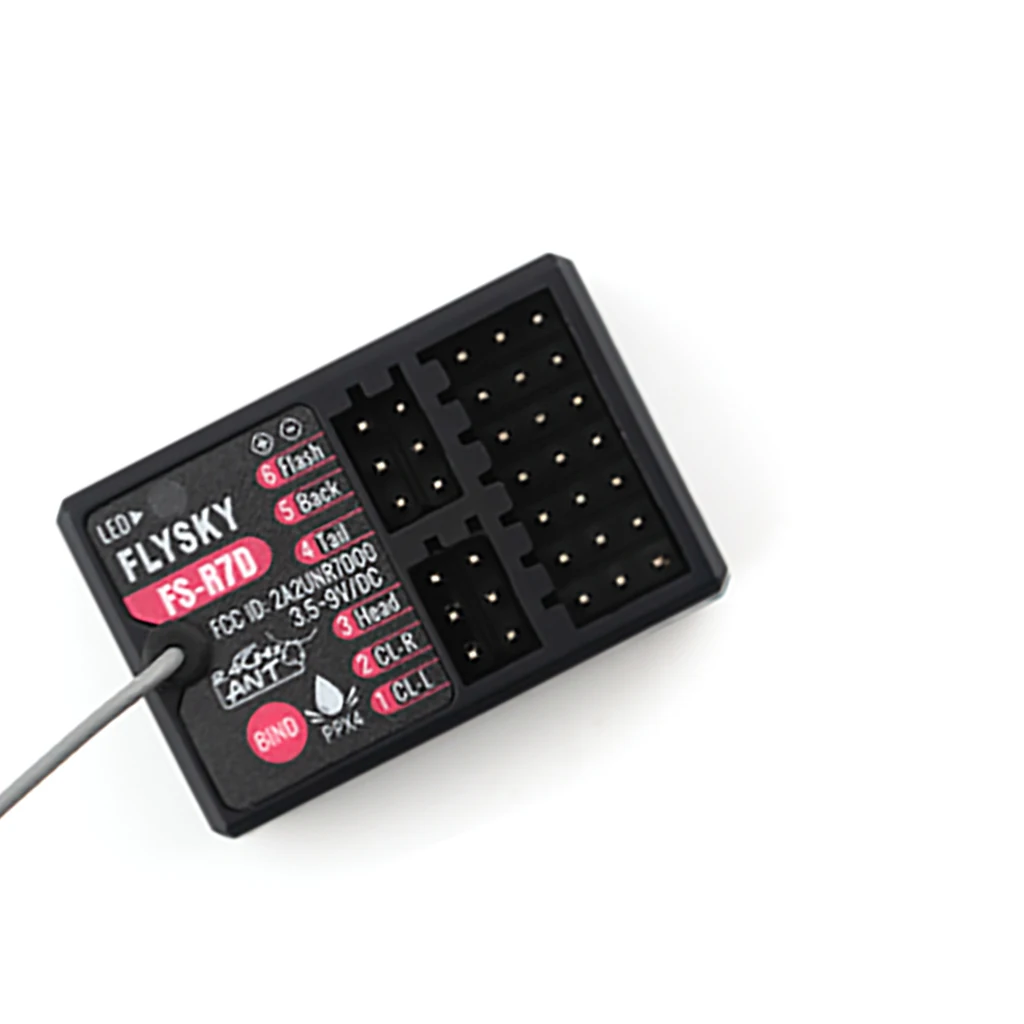

The FS-R7D is a light set receiver offering 7 channels using the ANT protocol.with an external single antenna, supporting bi-directional backhaul function.

It can output PWM signals and headlamp control signals.The FS-R7D is a compact and easy to use receiver for a wide range of vehicles.



Product Model: FS-R7D

Transmitter: FS-G7P ( control transmitter with ANT protocol)

Type: Car

Number of PWM channels: 7

Number of light groups: 6

Wireless frequency: 2.4GHz ISM

Wireless protocol: ANT (Ant version of automatic frequency hopping digital system)

Antenna type: External single antenna (coaxial)

Input power: 3.5 ~ 9V /DC

Operating current: < 90mA (5V)

Data output: PWM or PPM

Transmit power: < 20dBm

Remote distance: >300m (open and interference-free ground distance)

Online update: supported

Waterproof rating: PPX4

Exterior Colour: Black

Temperature range: -10°C ~ +60°C

Humidity range: 20% ~ 95%

Dimension: 35*23.3*13.3mm

Body weight: 8g

Certification: CE, FCC ID: 2A2UNR7D00

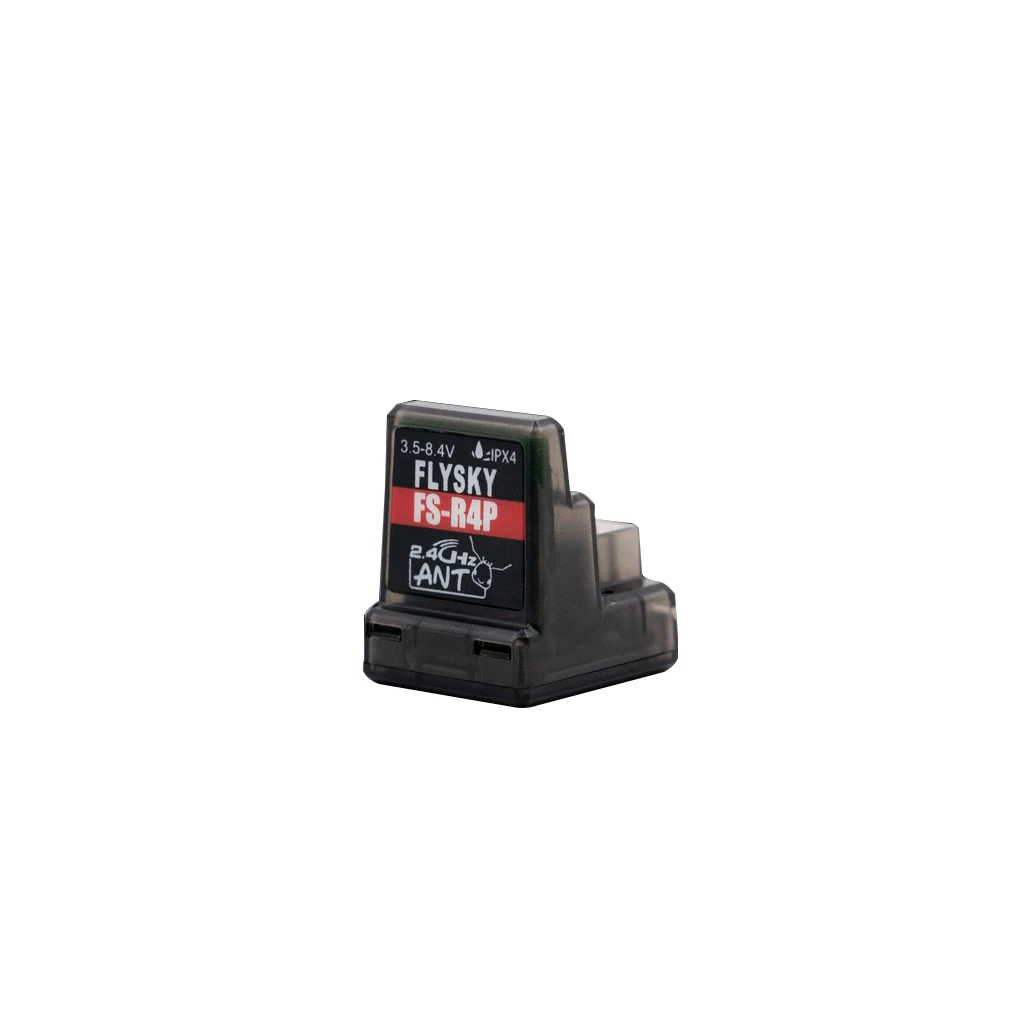

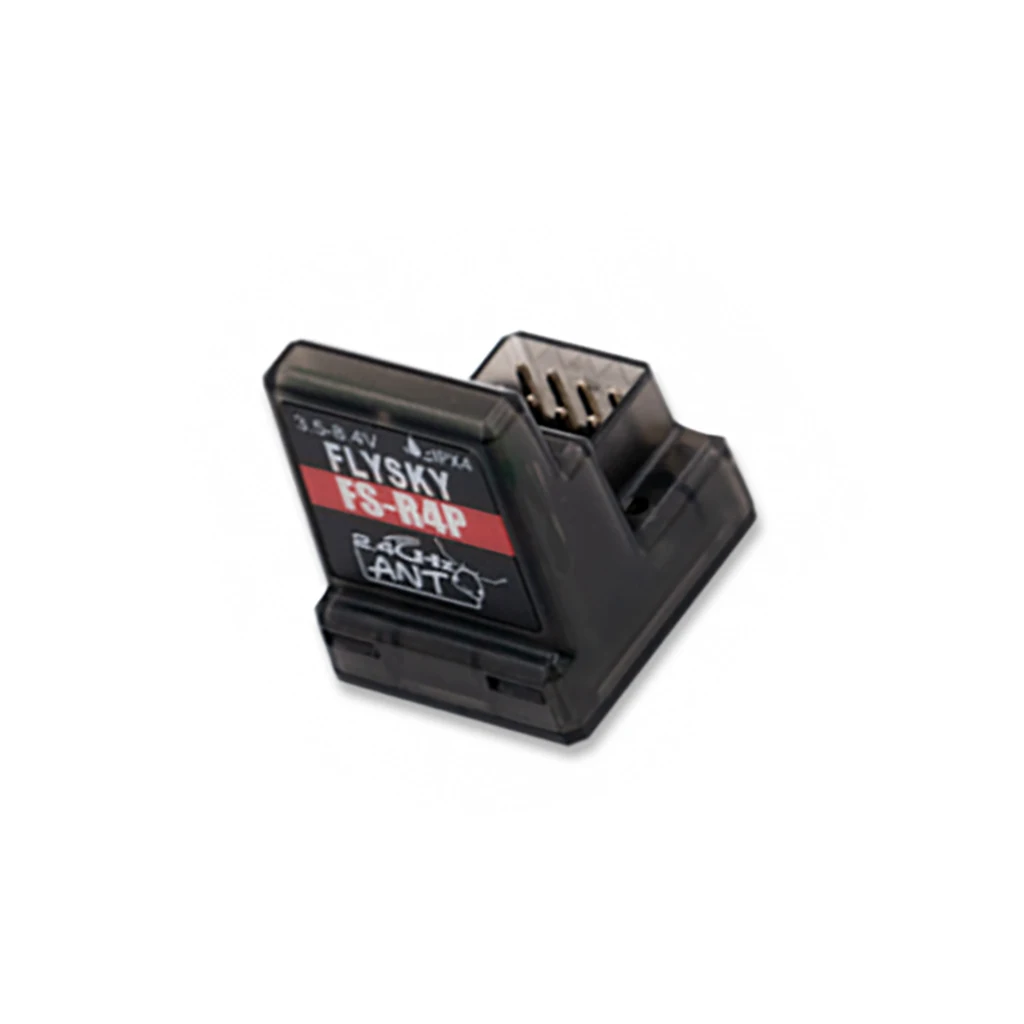

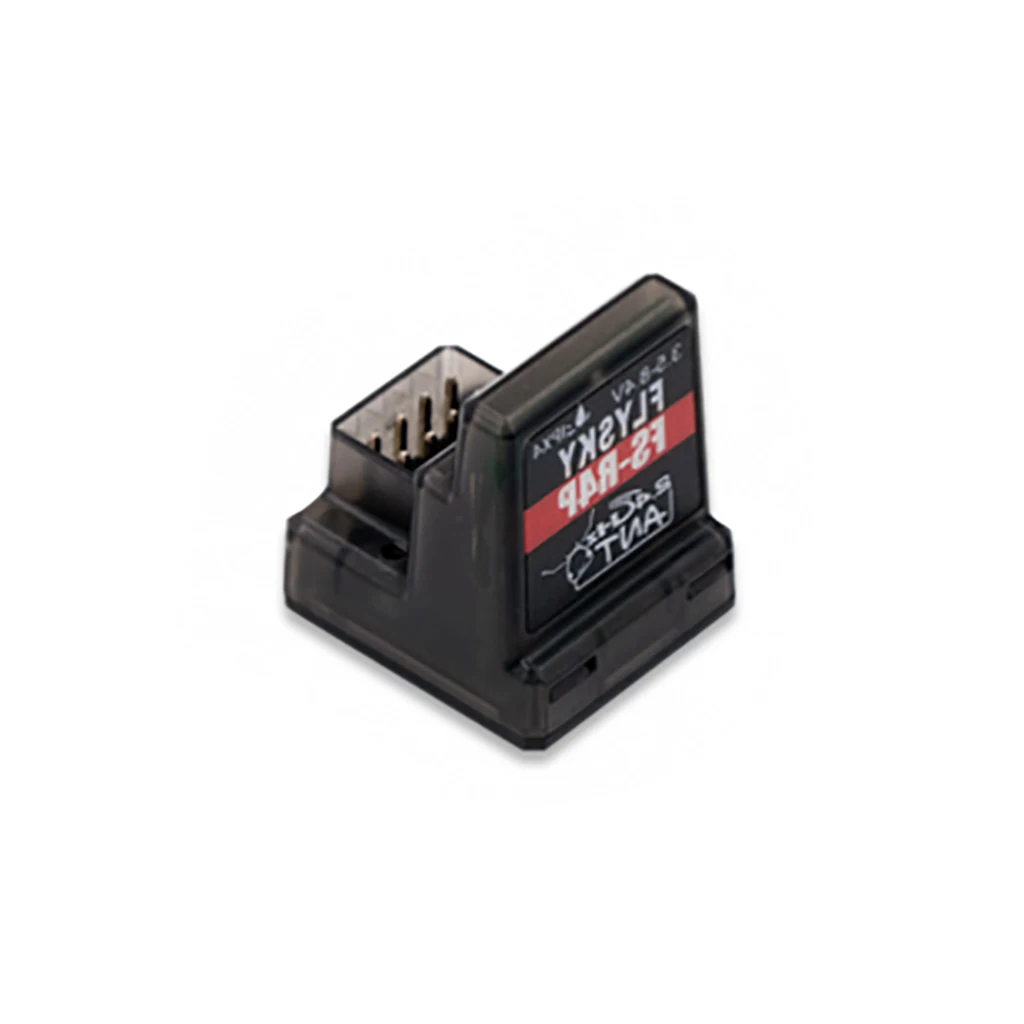

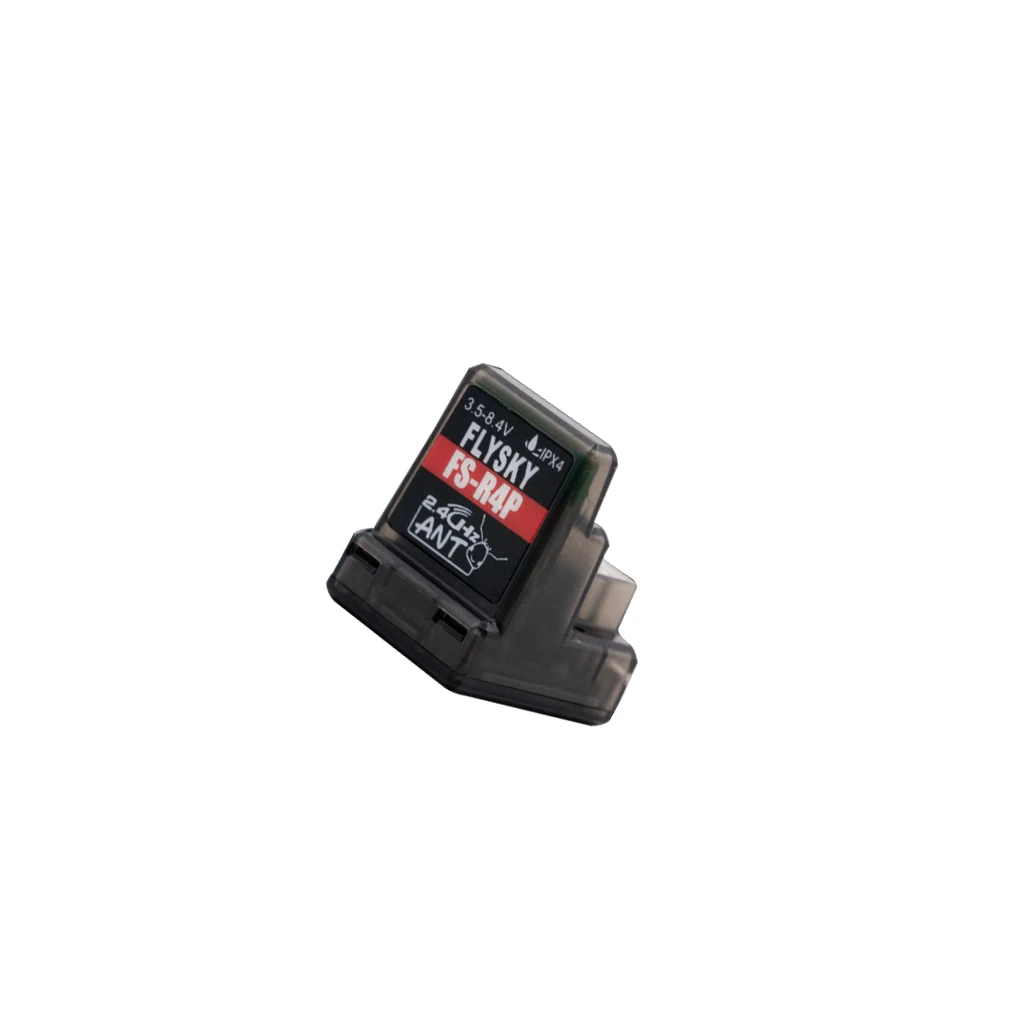

The FS- R4P is a built-in antenna receiver for ANT protocol vehicles.It has 4 pwm output channels, a built-in single antenna, IPX4 level waterproof, and vertical pin, automatic code matching, with

Small size, light weight, easy installation, no external antenna.




Product Model: FS-R4P

PWM channel: 4

Wireless frequency: 2.4G

Wireless protocol: ANT

Remote control distance: 100~300m (ground)

Antenna type : Built-in single antenna

Power supply : 3.5~8.4V

RSSI : Not supported

Data interface :PWM

Temperature range : -10°C to +60°C

Humidity range: 20%-95%

Online update: Not supported

Dimension : 22.6*20.6*25.5mm

Body weight : 6g

Certification : CE, FCC

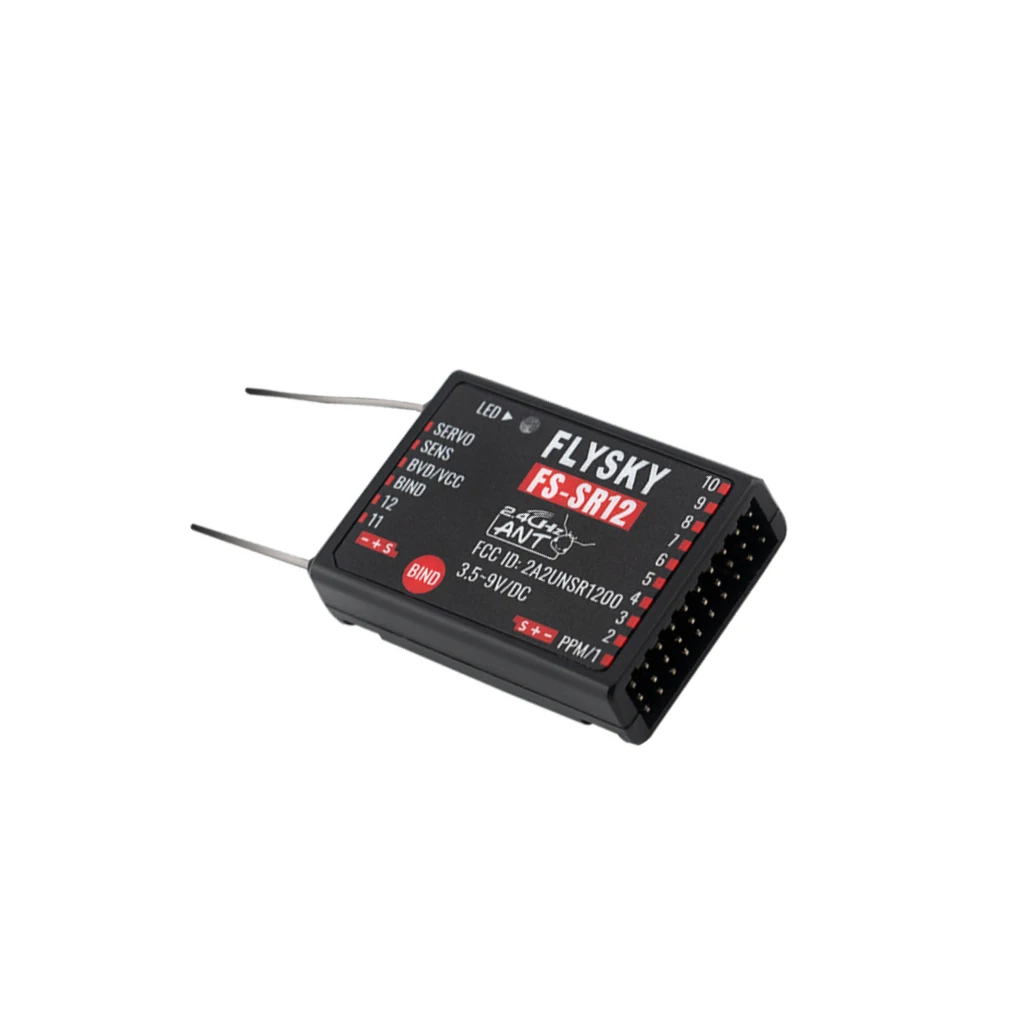

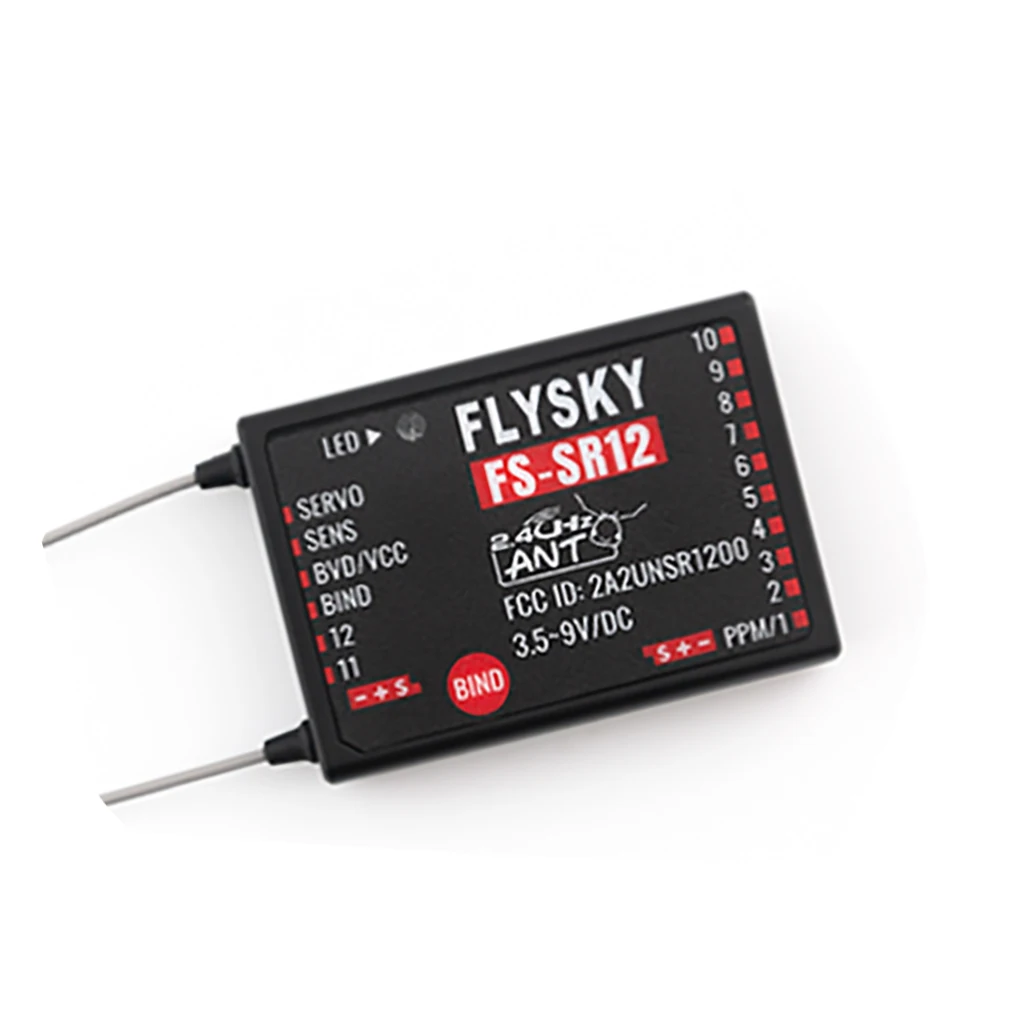

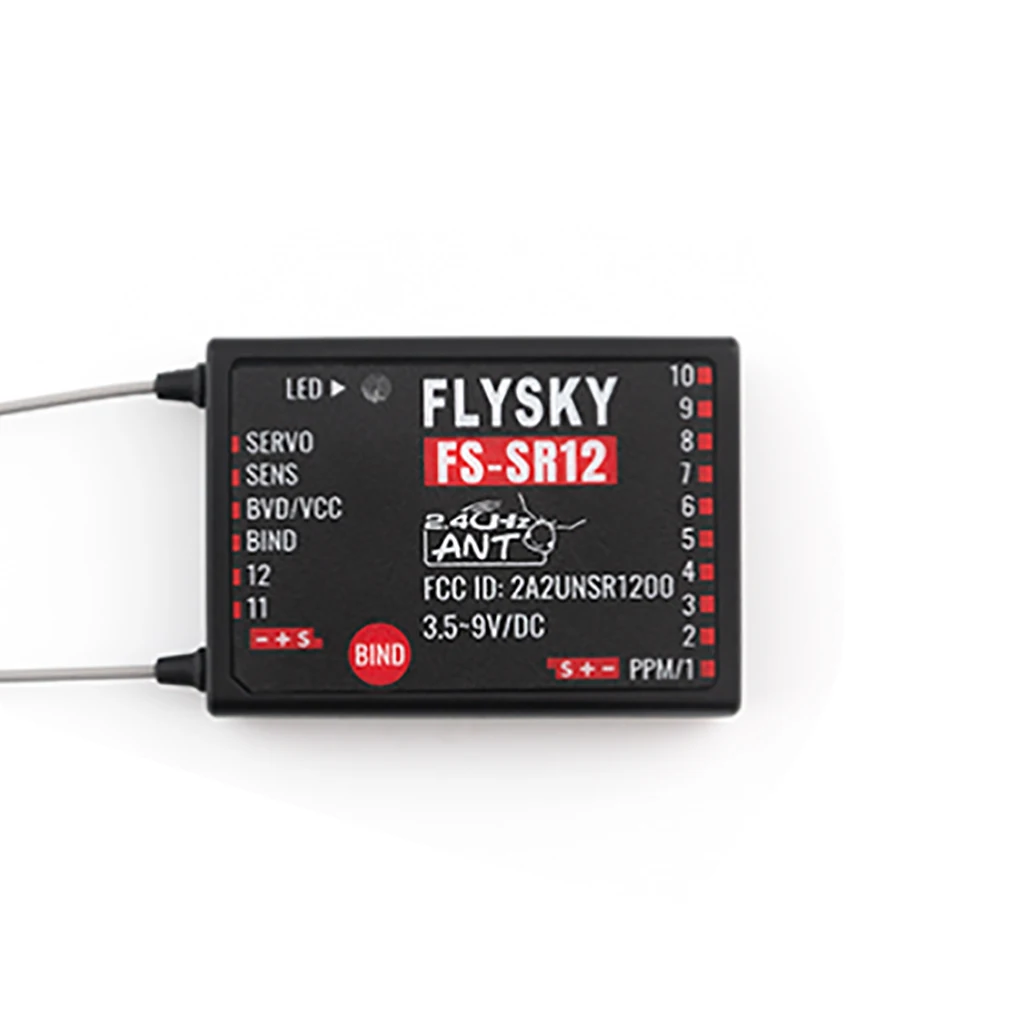

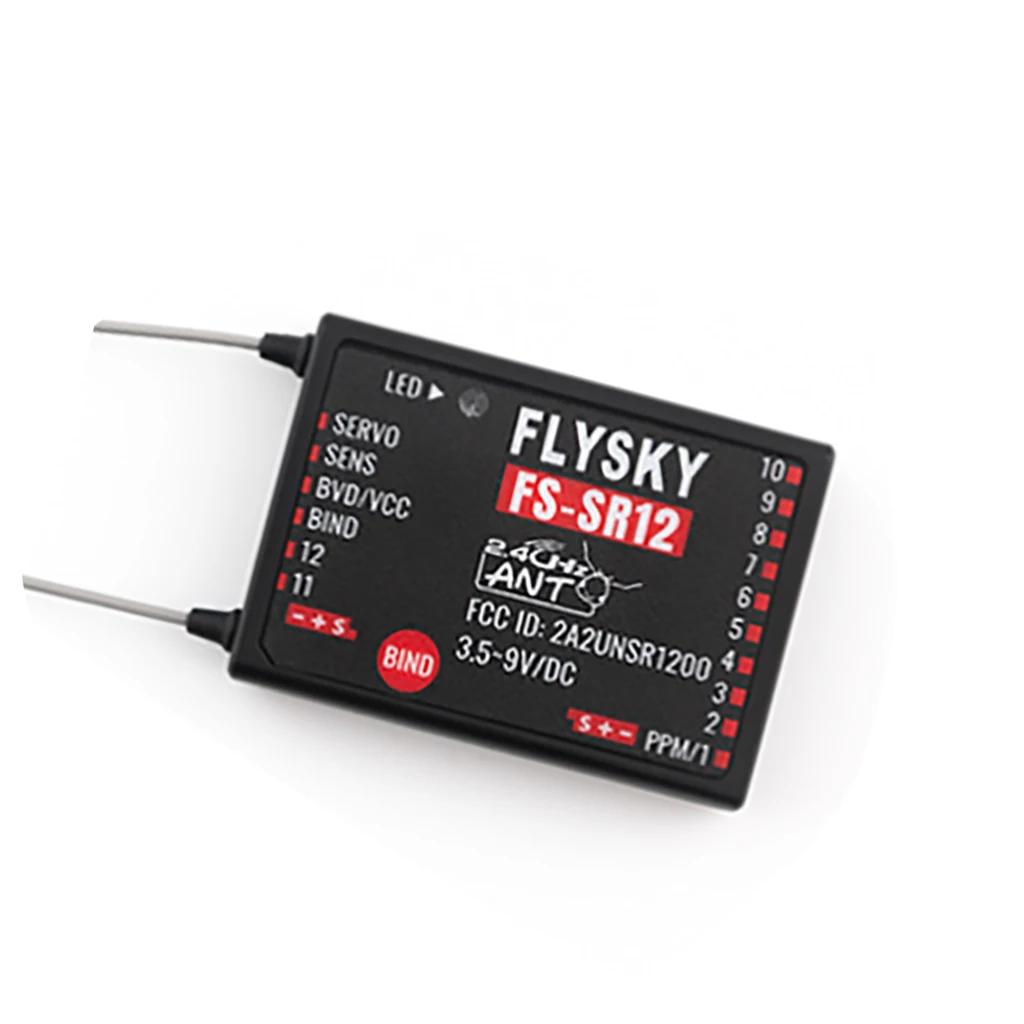

The FS-SR12 is a receiver that supports 12 PWM channel signal outputs using the ANT protocol.With dual antennas, it supports bi-directional transmission and backhaul functions.Compact design and can be adapted for use with a wide range of models.



Product Model: FS-SR12

Transmitter: ANT protocol transmitter (e.g. FS-ST8)

Suitable for: fixed wing, helicopter, glider, delta wing, multi-axis

Crossover, engineering vehicle, boat, robot or car model

Number of PWM channels: 12

Wireless frequency: 2.4GHz ISM

Transmit power: less than 20dBm

Wireless standard: ANT

Channel Resolution: 4096 levels

Antenna Type: Dual Antenna

Remote Distance: > 1500m (open air distance without interference)

Input power: 3.5~9V/DC

Operating current: 70mA/5V

Output data: PWM/PPM/i-BUS/S.BUS

Online update: Support

Temperature range: -10℃ ~ +60℃

Humidity range: 20% to 95%

Dimension: 44.8*32*11.3mm

Body weight: 13g

Certification: CE, FCC ID: 2A2UNSR1200
