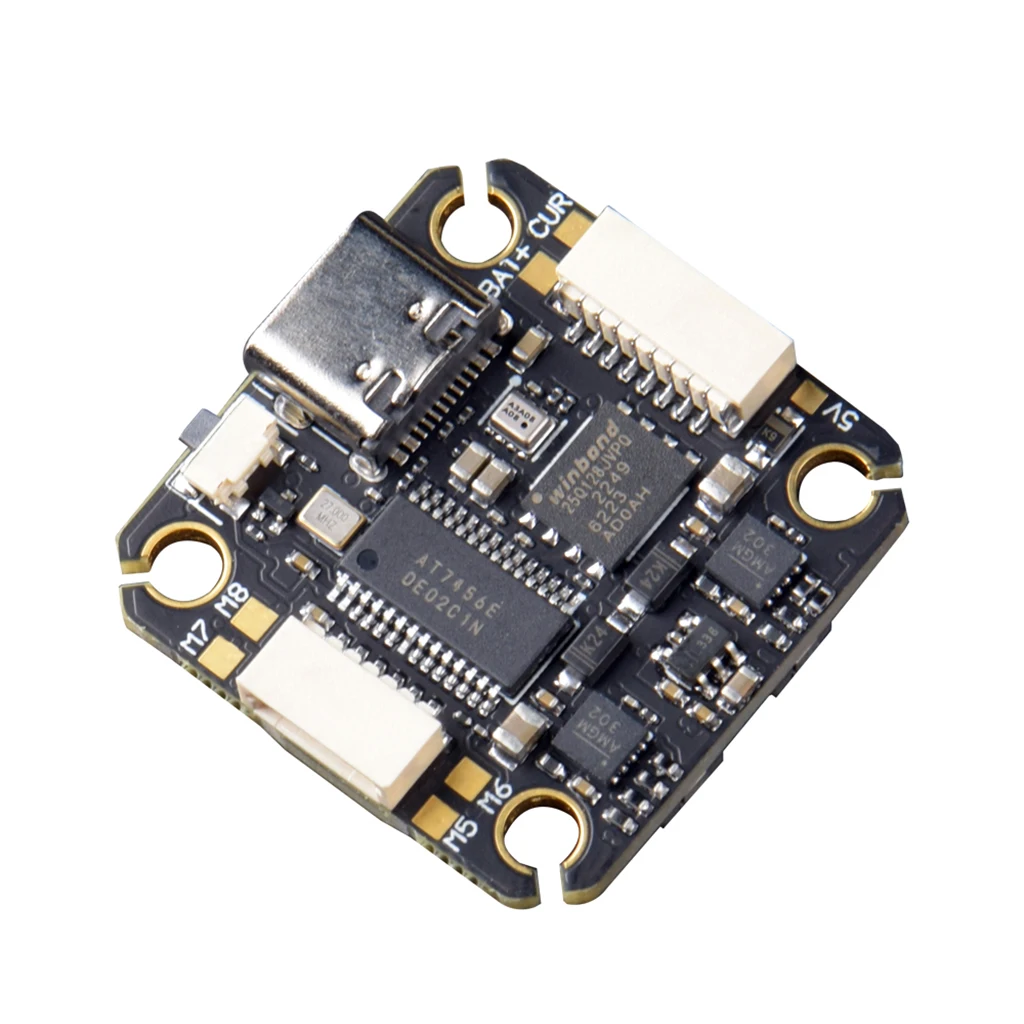

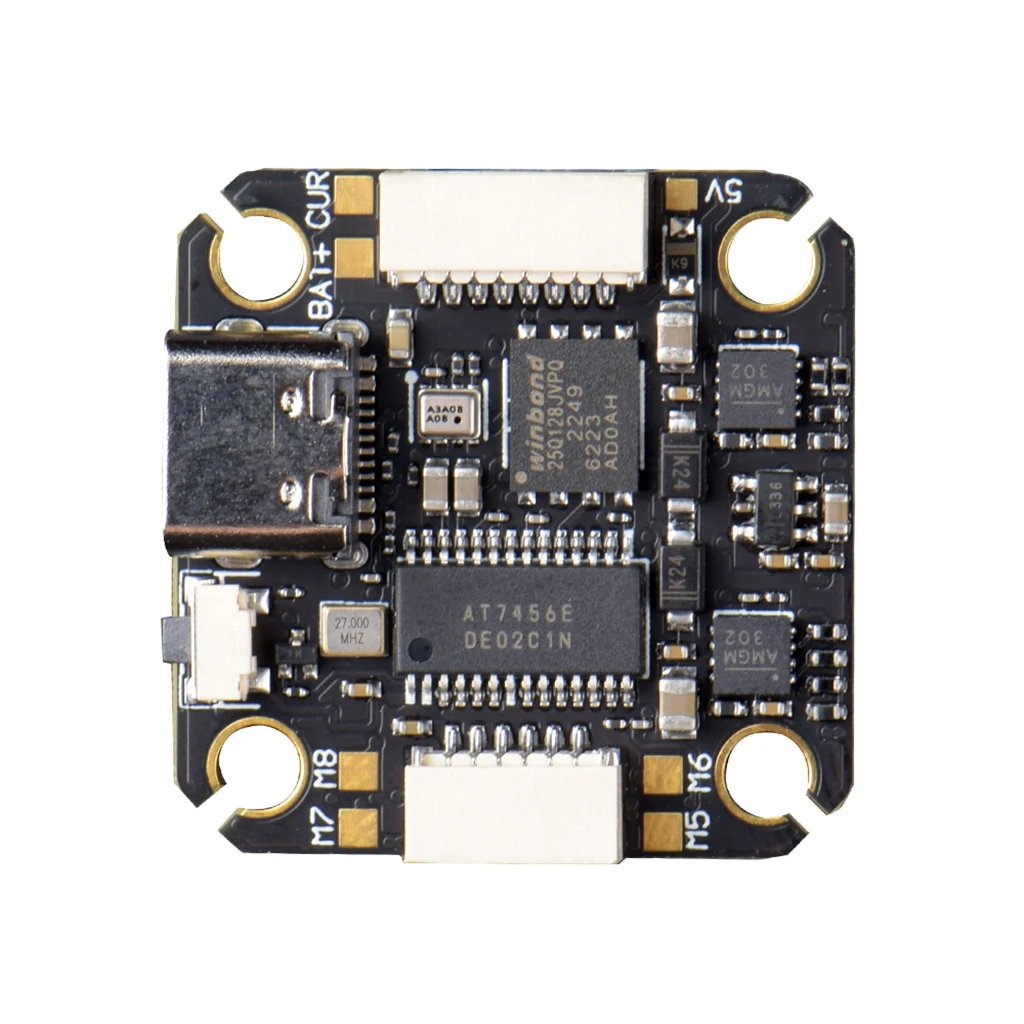

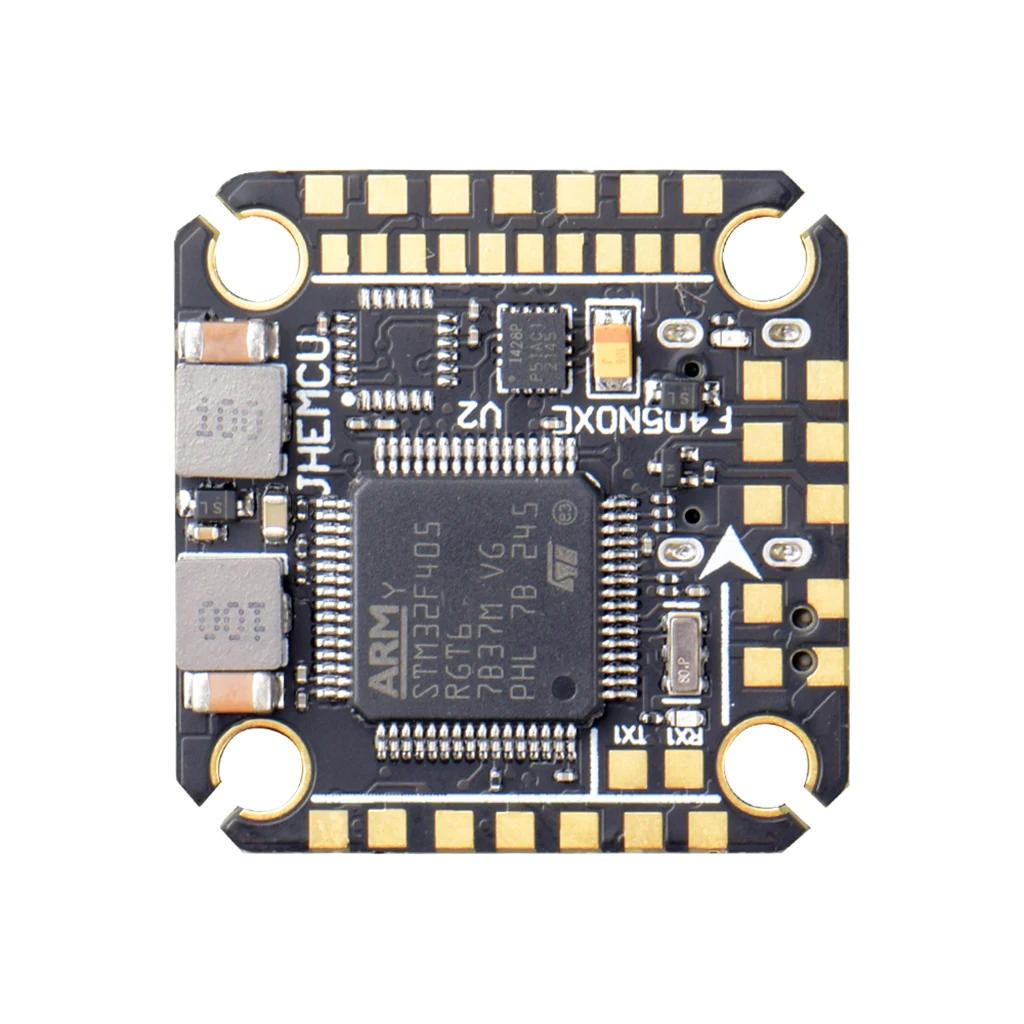

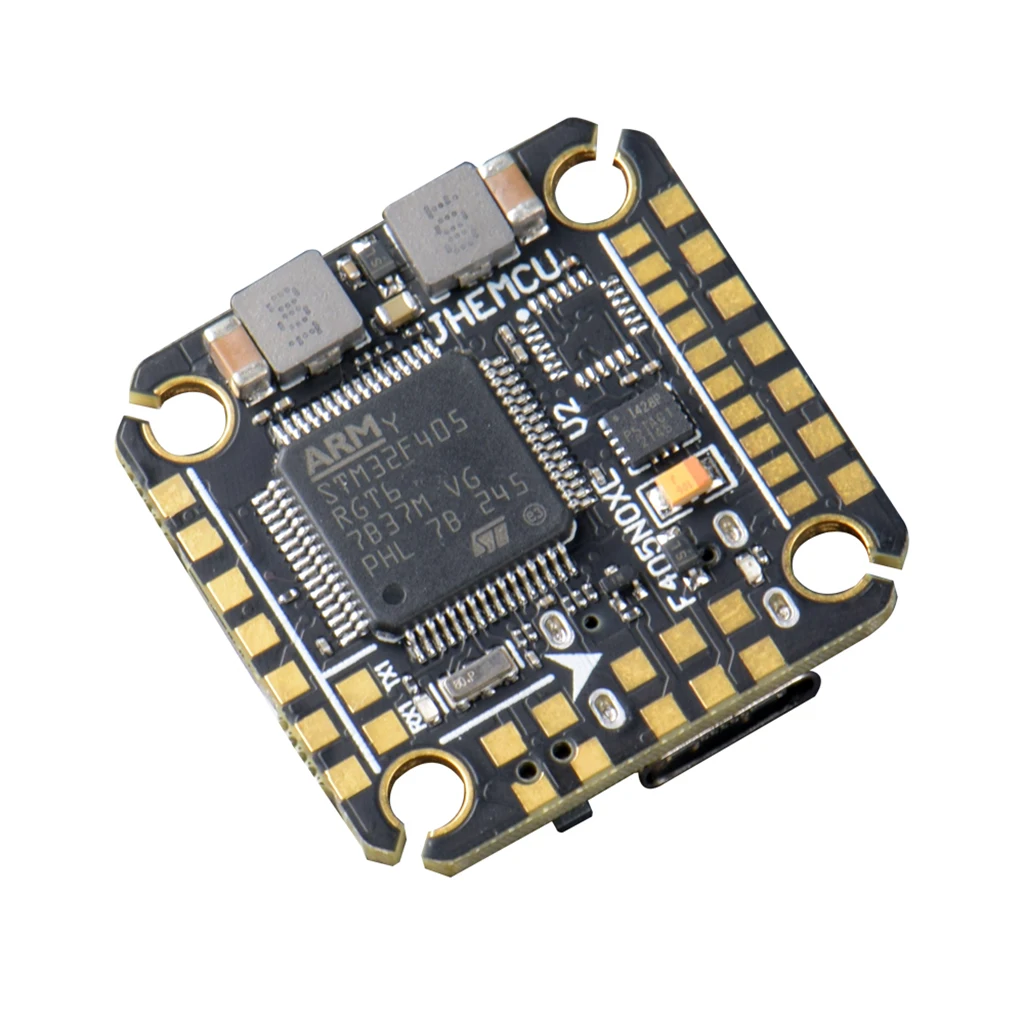

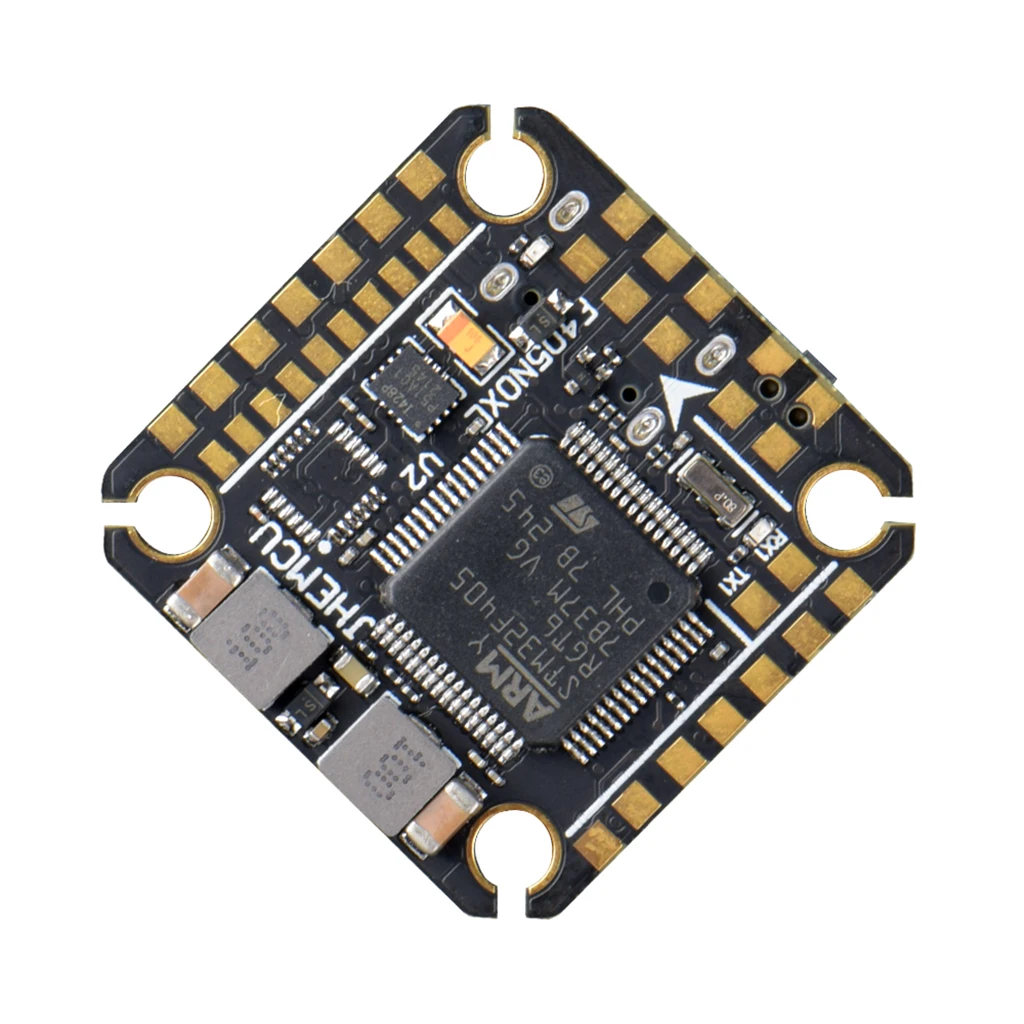

JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 3-6S LIPO for FPV Drone DIY Parts
-
Detail
- Product Name: JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 3-6S LIPO for FPV Drone DIY Parts
- Item NO.: F50730
- Weight: 0.02 kg = 0.0441 lb = 0.7055 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: JHEMCU
- Creation Time: 2023-08-23
- JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 3-6S LIPO for FPV Drone DIY Parts
JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 3-6S LIPO for FPV Drone DIY Parts

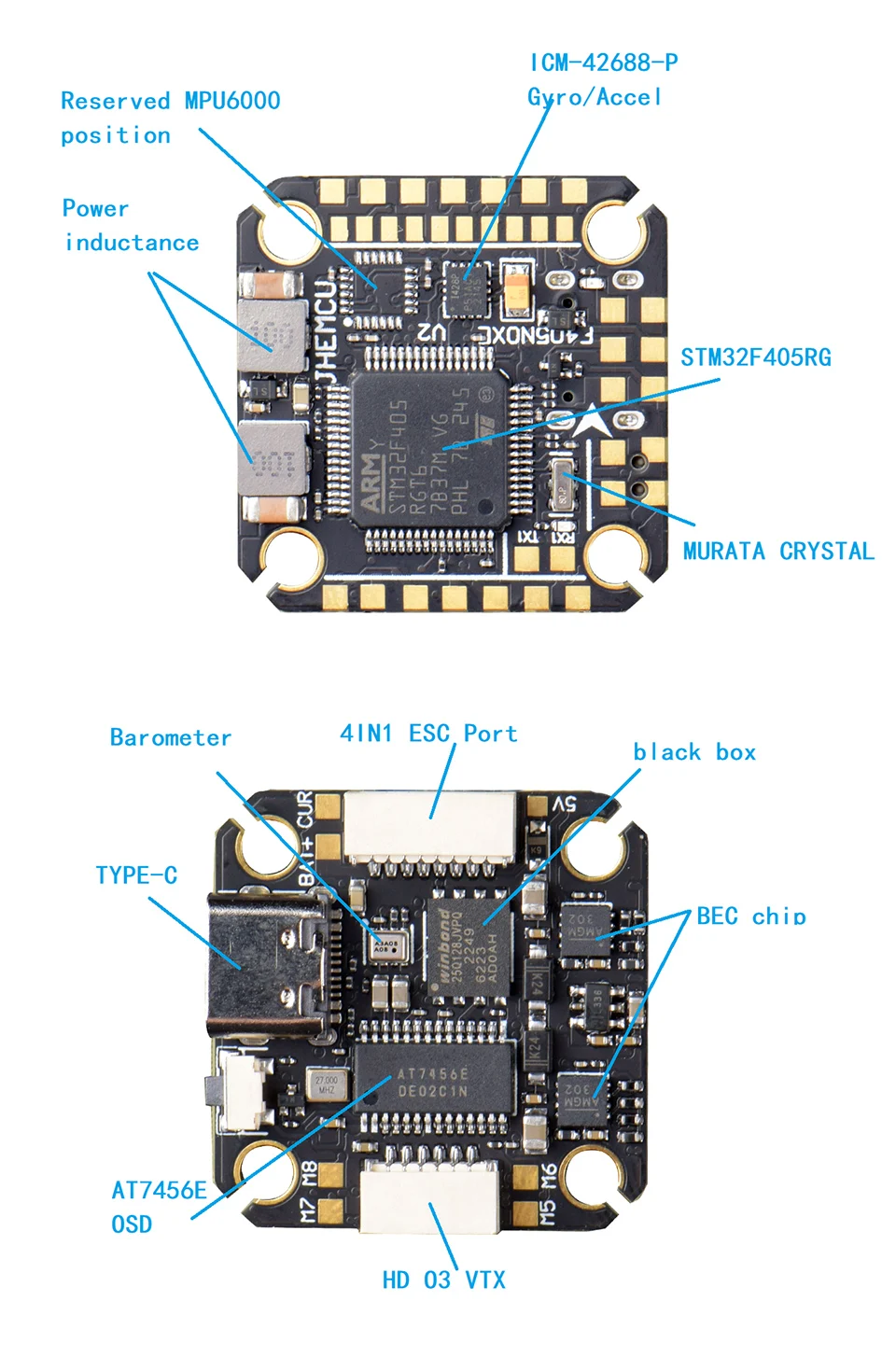

Specification:
Model: F405 NOXE V2
MCU： STM32F405/168MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD： AT7456E
Baro： YES
Blackbox： 16MB
Input voltage: 3S-6S（11.5V-26V）
5V-BEC： 5V/2.5A ±0.1V
10V-BEC: 10V/2A ±0.1V
Receiver： ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass： YES
HD O3： YES
USART: UART1,UART3,UART4,UART6
IIC： IIC1
Led_Strip: YES
Buzzer: 5V
ESC signal: Dshot150，Dshot300，Dshot600
USB: Micro USB
Current port： YES
Voltage sensor：YES
DFU button： YES
FC Firmware: betaflight_4.4.2 JHEF405PRO.HEX
Size: 27*27MM
Mounting Hole:20*20*3MM
Weight: 4.6g
Packaging List：
F405 NOXE V2 * 1
M2 * 6.5MM shock absorber * 4
8P*1.0MM *1
