JHEMCU GHF745AIO MPU6000 F745 Flight Controller BLHELI32 G071 40A /50A 4in1 ESC 25.5X25.5mm 3-6S for FPV Drone

US$ 74.64

Version: 40A 50A

Estimate Shipping Cost

Detail
- Product Name: JHEMCU GHF745AIO MPU6000 F745 Flight Controller BLHELI32 G071 40A /50A 4in1 ESC 25.5X25.5mm 3-6S for FPV Drone
- Item NO.: F50712-D1/F50712-D2
- Weight: 0.023 kg = 0.0507 lb = 0.8113 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: JHEMCU
- Creation Time: 2023-08-24
- JHEMCU GHF745AIO MPU6000 F745 Flight Controller BLHELI32 G071 40A /50A 4in1 ESC 25.5X25.5mm 3-6S for FPV Drone

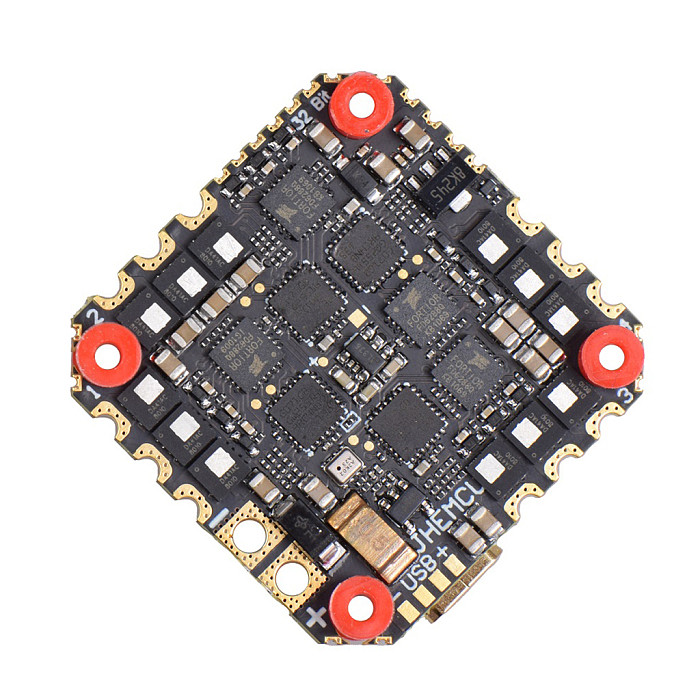

JHEMCU GHF745AIO MPU6000 F745 Flight Controller BLHELI32 G071 40A /50A 4in1 ESC 25.5X25.5mm 3-6S for FPV Drone

GHF745AI0 adopts STM32F745+MPU6000 gyroscope to realize stable flight effect, built-in 5V/2.5A,10V/2A BEC, built-in OSD module, barometer and black box.

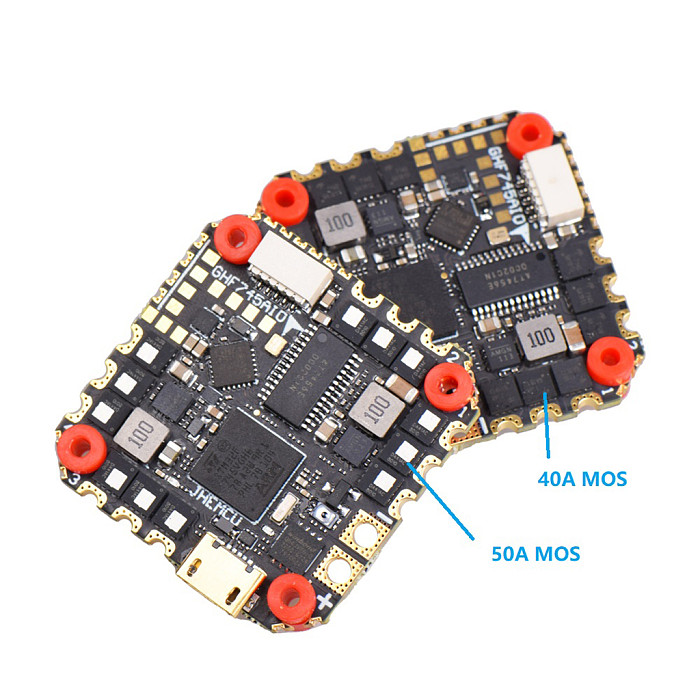

Brushless ESC part of the 32-bit STG071 with high-power MOS, built-in TVS module, no need to weld TVS module in the outer part.

Model: GHF745AIO

MCU： STM32F745/216MHZ

IMU: MPU6000/Gyro/Accel

OSD： AT7456E

Baro： YES

Blackbox： 8MB

Input voltage: 3S-6S（11.5V-26V）

5V-BEC： 5V/2.5A ±0.1V

10V-BEC: 10V/2A ±0.1V

Receiver： ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX

HD接口： YES

USART: UART1,UART2,UART3,UART4,UART5,UART6

IIC： IIC1

Led_Strip: YES

Buzzer: 5V

ESC signal: Dshot150，Dshot300，Dshot600

USB: Micro USB

Current port： YES

Voltage sensor：YES

DFU button： YES

FC Firmware: betaflight_4.4.2 JHEF745.HEX

Size: 33*33MM

Mounting Hole:25.5*25.5*3MM

Weight: 7.3g

ESC Current: 40A/50A

ESC MCU： STM32G071

ESC TYPE: Blheli_32

ESC Firmware: JHEMCU_G071_ESC_Multi_32_9.HEX

Packaging List：

GHF745AIO * 1

XT60 * 1

M2 * 6.5MM shock absorber * 4

50A-14AWG wire * 2

(40A-16AWG wire * 2)

O3 connecting line 5P to 6P * 1

470UF/35V capacitor * 1

TYPE-C adapter board * 1

28AWG Wire * 4

Welding practice board * 1
