Copy| Product Name | (Diatone) JH60877 Mamba MK4 F722MINI/F40_128K MINI Equipment Tower For FPV Traversing Machine |
| Item NO. | F47618 |
| Weight | 0.045 kg = 0.0992 lb = 1.5873 oz |
| Category | DIY RC Drone Accessories > Flight Control |
| Brand | DIATONE |
| Creation Time | 2022-06-17 |

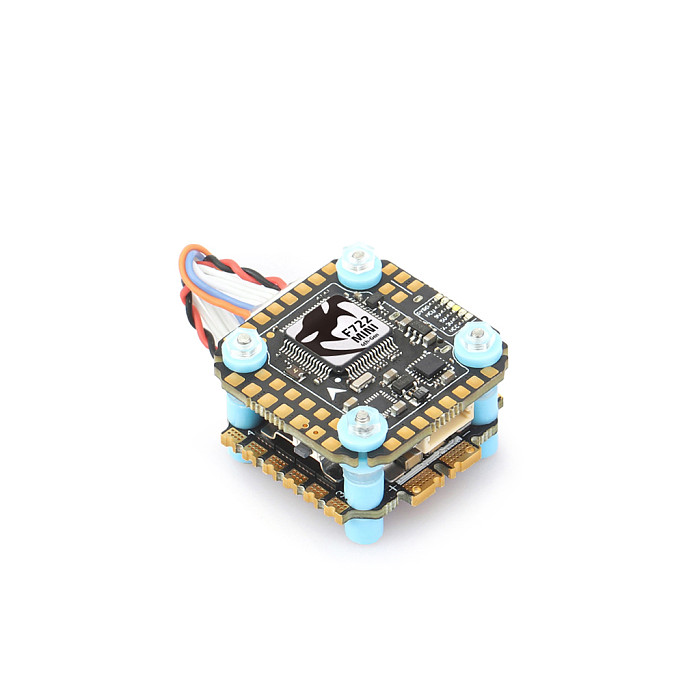

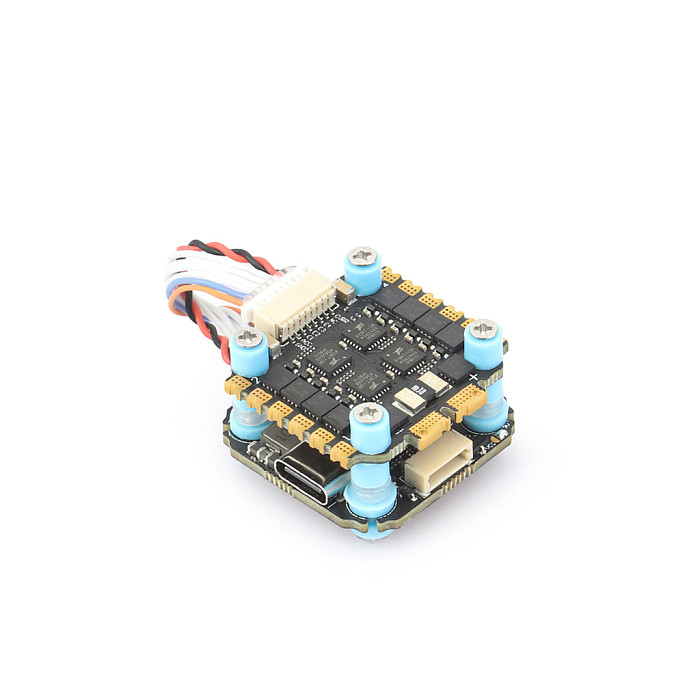

(Diatone) JH60877 Mamba MK4 F722MINI/F40_128K MINI Equipment Tower For FPV Traversing Machine
Product Description:
Brand: Diatone
MAMBA MK4 F722MINI
MCU: 216MHz STM32F722
GYRO: BMI270
OSD: Yes
Black box: 16M Flash Memory
Barometer: SPL06
Number of serial ports: 6Set
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer: Yes
Galvanometer: Yes
ESC signal: 8 Set
ESC program: Dshot300/600/1200
ESC kickback: Yes
Flight control status indicator: Yes
LED control switch: BF LED
Air terminal interface: Yes
WIFI: No
Video transmission power control: Yes
Receiver Short Circuit Protection: Yes
TVS power protection: Yes
BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
Input voltage: 3~6S Lipo (12.6~25.2V)
Mounting hole: 20mm, M2/M3"
MAMBA F40_128K_MINI
Input voltage: 3~6S Lipo (12.6V~25.2V)
Rated current: 40A×4
Peak current: 45A (10S)
BEC: No
Firmware: BLHeli_32 MAMBA F40_128K_MINI
Program: Dshot300/600/1200
PWM: 24~128K
TVS power protection: Yes
Mounting hole: 20mm, M2/M3"
The package contains:
Flight control*1
