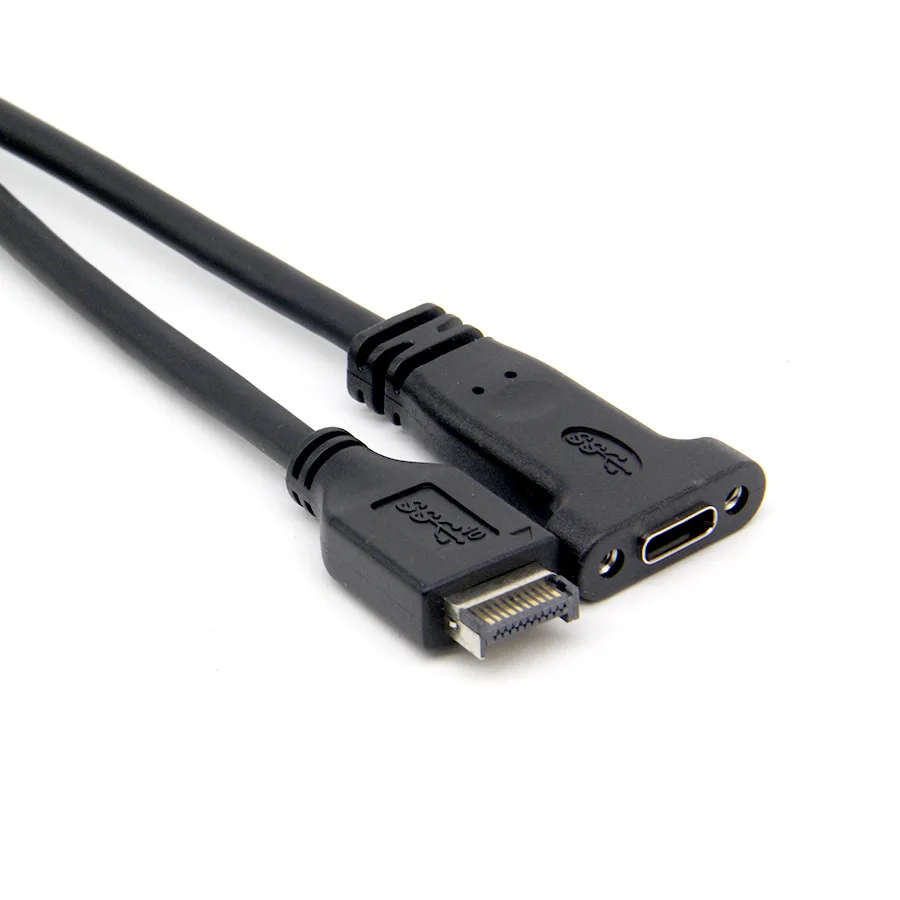

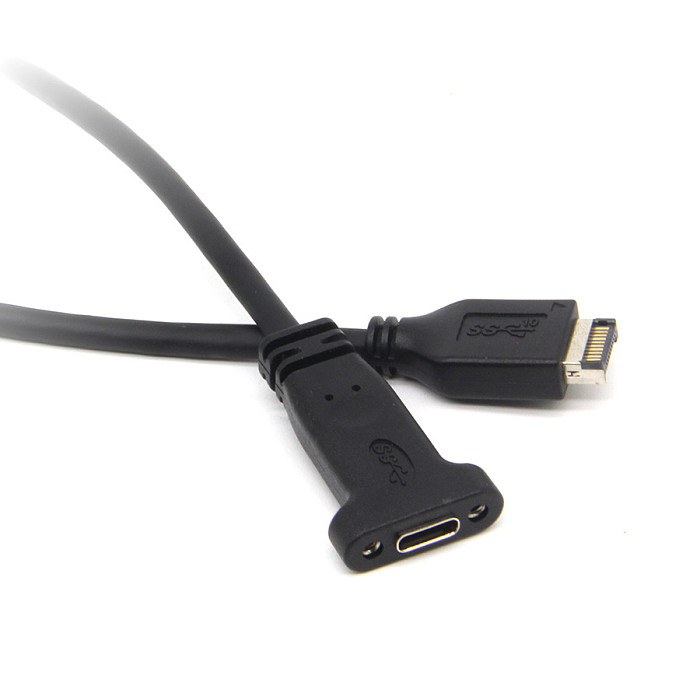

XT-XINTE USB 3.1 Front Panel Header Type E Male to Usb-C Type C Female Motherboard Expansion Cable Computer Connector 50cm

product description:

Brand: XT-XINTE

Colour: Black

specification:

Size: 0.5m

Weight: 50g

Features:

Note: The prerequisite for using this expansion accessory is that the motherboard is equipped with a USB3.1 Type-E port, so that it can be accessed normally. The equipped PCI full-height baffle can only be used for standard chassis, and cannot be used for mini chassis.

Be applicable:

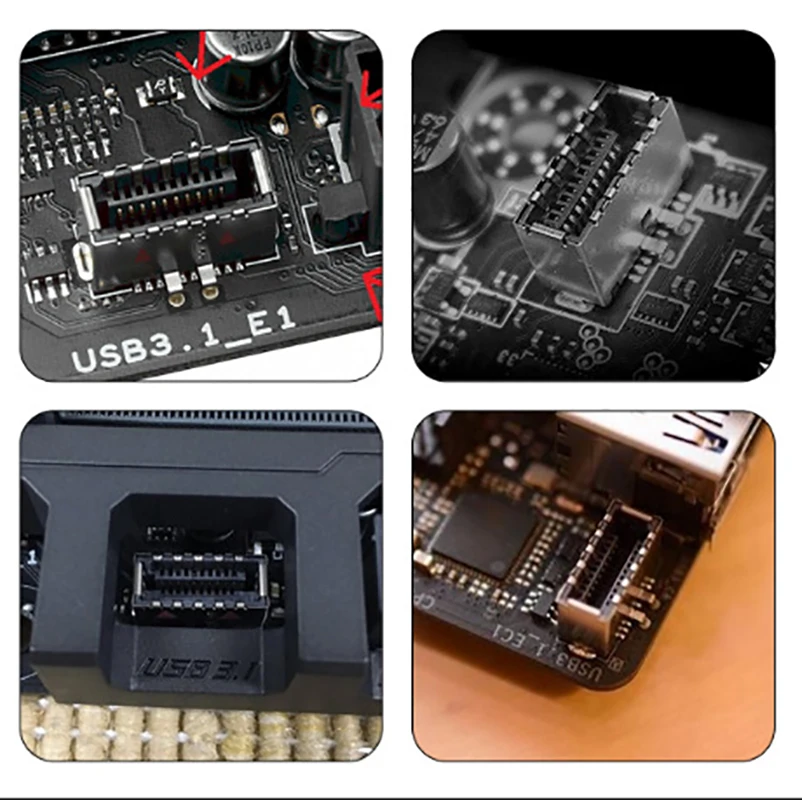

Convert the USB3.1 Type-E port of the motherboard to a Type-C female port and fix it through the PCI bit of the chassis to facilitate the connection of Type-C devices. Use a motherboard equipped with a Type-E female socket (such as ASUS Z270 and other high-end Motherboard)

Features:

1. Through the expansion of the motherboard USB3.1 front (Type-E) port, the USB Type-C interface brings forward and backward plugging, 100W power supply and other functions.

2. Developed according to the USB Association standard, using 16-core USB3.1 connection line, 4 groups of high-speed signal lines, using silver-plated material to reduce conductor impedance, so that data transmission speed is fast, shielding layer uses tinned copper wire winding process to achieve complete shielding Standard, data transmission is more stable and efficient;

3. The Type-C female head has a nut design, which is convenient for fixing the PCI position baffle at the rear of the chassis. The product has passed the compatibility test, and the equipment equipped with Type-E port can be used normally

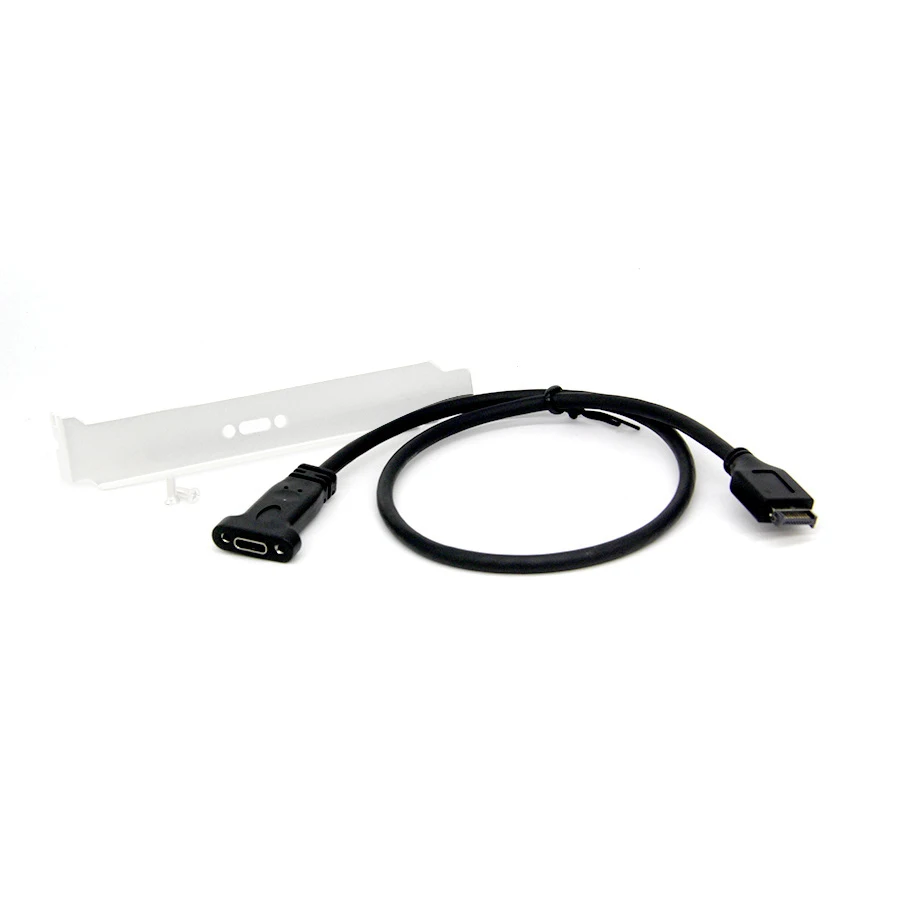

Products include:

USB3.1 Type-E to Type-C extension cable * 1

PCI full height baffle * 1

Fixing screws * 2
