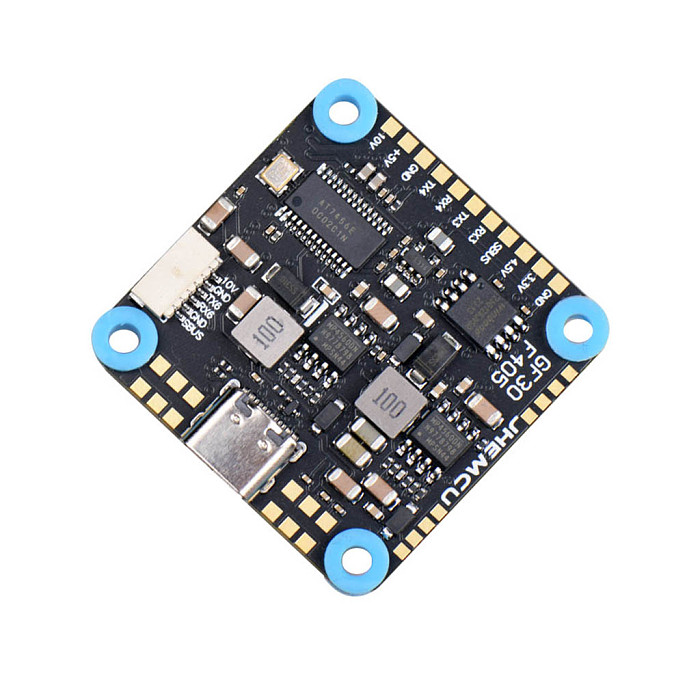

(JHEMCU) GF30F405-ICM 30.5MM TYPE-C Interface Flight Control For FPV Traversal Aircraft Item NO.: F50359

Name: (JHEMCU) GF30F405-ICM 30.5MM TYPE-C Interface Flight Control For FPV Traversal Aircraft
Brand: JHEMCU
SKU: F50359
Price: 19.71 USD
Availability: InStock

Write a Review Sold (8)

US$ 19.71

US$ 23.19 Save US$ 3.48 (15% Off)

Quantity: Stock ( 9999991 )

Estimate Shipping Cost

Add to Cart

(JHEMCU) GF30F405-ICM 30.5MM TYPE-C Interface Flight Control For FPV Traversal Aircraft

Product Name	(JHEMCU) GF30F405-ICM 30.5MM TYPE-C Interface Flight Control For FPV Traversal Aircraft
Item NO.	F50359
Weight	0.042 kg = 0.0926 lb = 1.4815 oz
Category	DIY RC Drone Accessories > Flight Control
Brand	JHEMCU
Creation Time	2023-06-26

(JHEMCU) GF30F405-ICM 30.5MM TYPE-C Interface Flight Control For FPV Traversal Aircraft

GF30F405-ICM
MCU: STM32F405RGT6
Power supply: 3-8S (11V-36V)
Signal protocol: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
Sensor: ICM-42688-P
Size: 36 * 36mm (30.5mm mounting hole, diameter 4MM)
Firmware version: Betaflight JHEF405pro/INAV_ 6.1.0_ JHEMCUF405
Black box: 16MB
Barometer: SPL06
OSD: Support
DJI VTX: With reserved interfaces, supports
USB: TYPE-C interface
IIC: Support
UART: 4-way, UART1, 3, 4, 6, where UART3 is the receiver
BEC: BEC 5V/3A and 10V/2A
Receiver: SBUS, IBUS, DSM2/X, TBS, CRSF, etc
Support WS2812 programmable LED
Support buzzer
Built in voltage sensor with Charged current detection port
Weight: 8.7 grams

Packaging list:
GF30F405-ICM * 1
8P plug cable * 1
M3 shock absorber ball * 4
