3DR Mini OSD MiniOSD Mavlink APM2.6 2.8 PIXHAWK Flight Control For Aircraft Accessories
-
Detail
- Product Name: 3DR Mini OSD MiniOSD Mavlink APM2.6 2.8 PIXHAWK Flight Control For Aircraft Accessories
- Item NO.: F48652
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories > Flight Control
- Creation Time: 2022-11-18
- 3DR Mini OSD MiniOSD Mavlink APM2.6 2.8 PIXHAWK Flight Control For Aircraft Accessories
3DR Mini OSD MiniOSD Mavlink APM2.6 2.8 PIXHAWK Flight Control For Aircraft Accessories
Product description

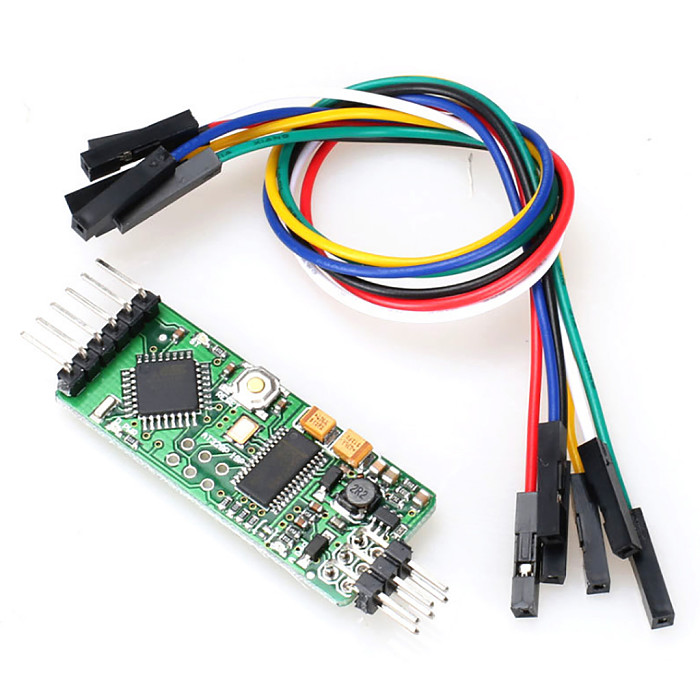

MINI OSD English word library, if you need to connect the flight control (APM, PIX flight control) connecting line, please contact.
Note: This osd can only be used for flight control that supports the mavlink protocol, such as APM pirates. It cannot be used by connecting to GPS alone. It can only read the mavlink protocol.
If it is used alone, please connect the TX RX to APM
If it is used together with data transmission, the TX definition of the OSD is not connected, and the RX can be used directly
This OSD automatically recognizes the camera video format. However, if the camera is not connected, you can select the system without camera output by having a solder joint on the back. The default is N, and the PAL is output when the PAL is welded
MinimOSD is an OSD based on Arduino. This is specially designed for flight control of ArduPilot MEGA and MAVlink protocols
Its main components are an Arduino ATmega328 MCU and a MAX7456 monochrome screen overlay chip. Programming is via a FTDI compatible 6-pin connector
It features two independent power supply and ground part isolated OSD function simulation stages: a 5V part ATMEGA and a 5V part OSD function digital stage, which supplies power through FTDI cables or other 5V sources; The analog phase of the OSD function with a regulated voltage of 5 V can handle up to+12 V input power supply through the video/output connector. Welding jumper, power supply and ground are combined, if necessary.
MinimOSD adopts a high cost and high efficiency DC-DC regulator, which is not comparable to the old v0.1 from other manufacturers. The original version of the official v0.1 uses a linear voltage regulator. When it is powered independently, 12V input will cause very serious heating. Although parallel power supply can solve the heating problem, it also brings two other problems: increasing the power supply pressure of flight control and noise from signals.
MAVLink OSD cancels the single power supply mode selection jumper and completely uses the isolated dual power supply mode for operation.
Hardware features:
Size: 39mm × 19mm (excluding row needle)
Weight: 6g (excluding connecting wire)
If you need to modify OSD parameters, please provide or purchase FTDI.
