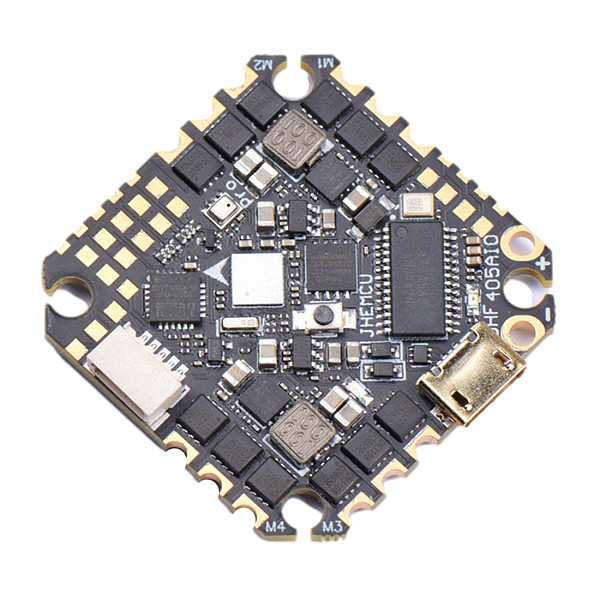

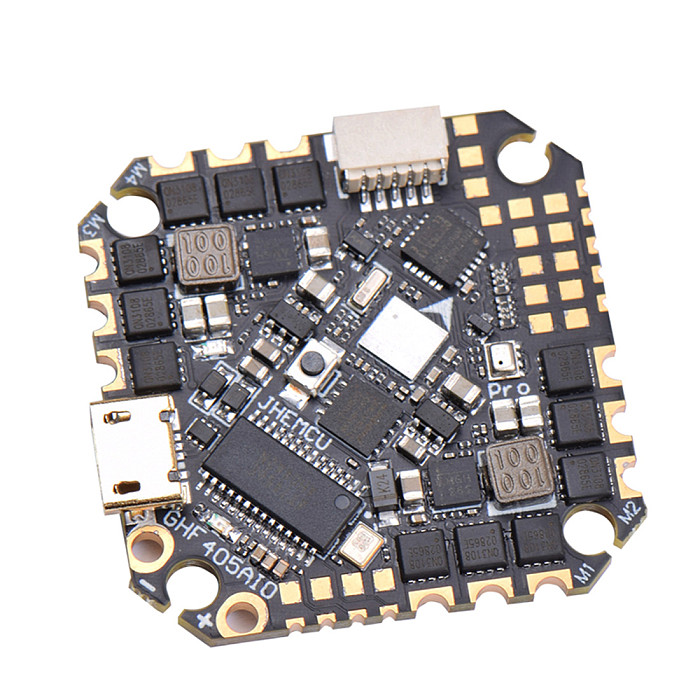

JMT GHF405AIO-HD 40A AIO Flight Controller F405 F4 Build-in OSD Blheli-S ESC 2-6S Lipo For RC FPV Toothpick Racing Drone
-
Detail
- Product Name: JMT GHF405AIO-HD 40A AIO Flight Controller F405 F4 Build-in OSD Blheli-S ESC 2-6S Lipo For RC FPV Toothpick Racing Drone
- Item NO.: F43637
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: JMT
- Creation Time: 2021-04-29
- JMT GHF405AIO-HD 40A AIO Flight Controller F405 F4 Build-in OSD Blheli-S ESC 2-6S Lipo For RC FPV Toothpick Racing Drone
JMT GHF405AIO-HD 40A AIO Flight Controller F405 F4 Build-in OSD Blheli-S ESC 2-6S Lipo For RC FPV Toothpick Racing Drone
Product Introduction
ESC output current 40A continuous current, 4 independent current outputs
USB port is installed on the side, built-in USB ESD chip
All signal ports add protection buffer elements
Imported originals, stable quality
Reserving common functional interface pads, there are 5 UART ports (UART1, UART2, UART3, UART4, UART6).
Half-hole motor pad, supporting high current output
Integrated with Betaflight F405 processor flight controller, OSD BEC 5V/2.5A and 10V/2A, support 3-6S battery
Flight control parameters

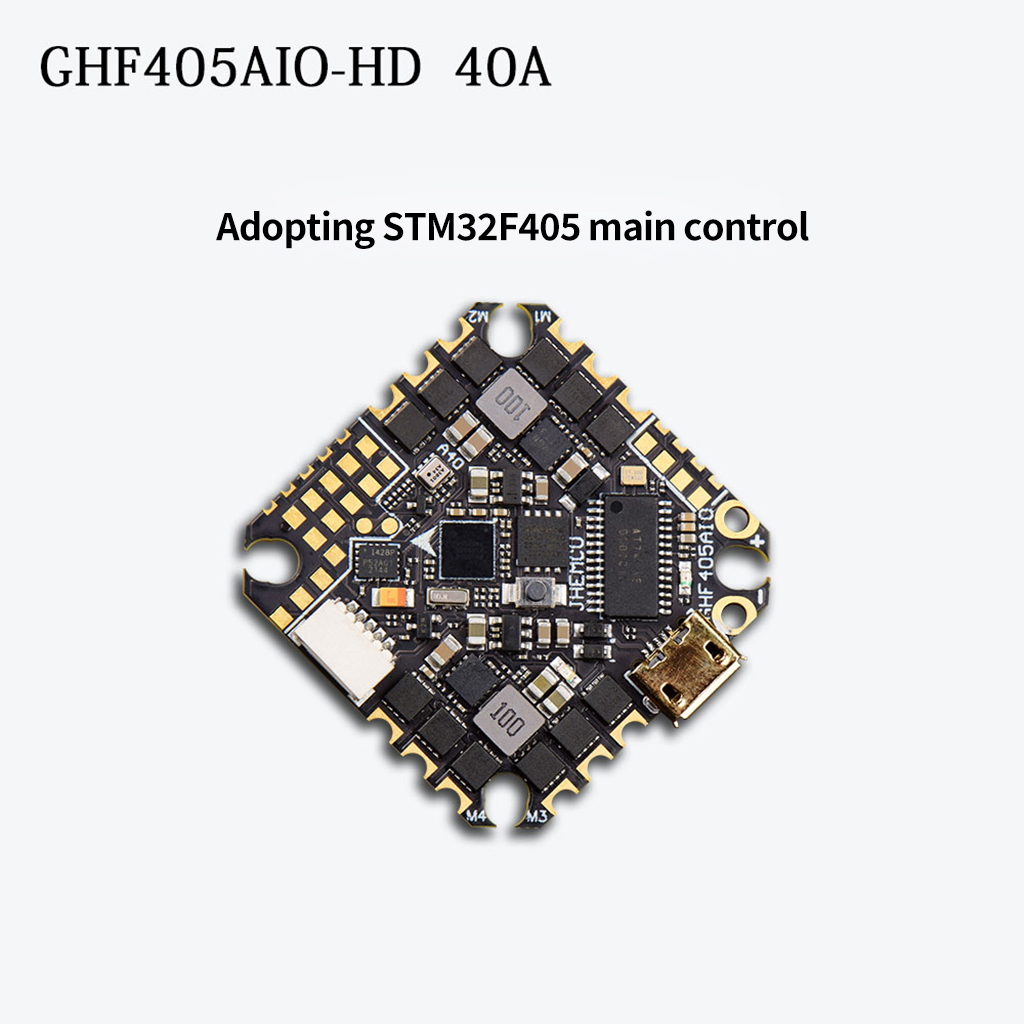

CPU: STM32F405
Sensor: MPU6000 (SPI connection)
Size: 33*33mm (25.5mm mounting hole)
Firmware version: Betaflight JHE405

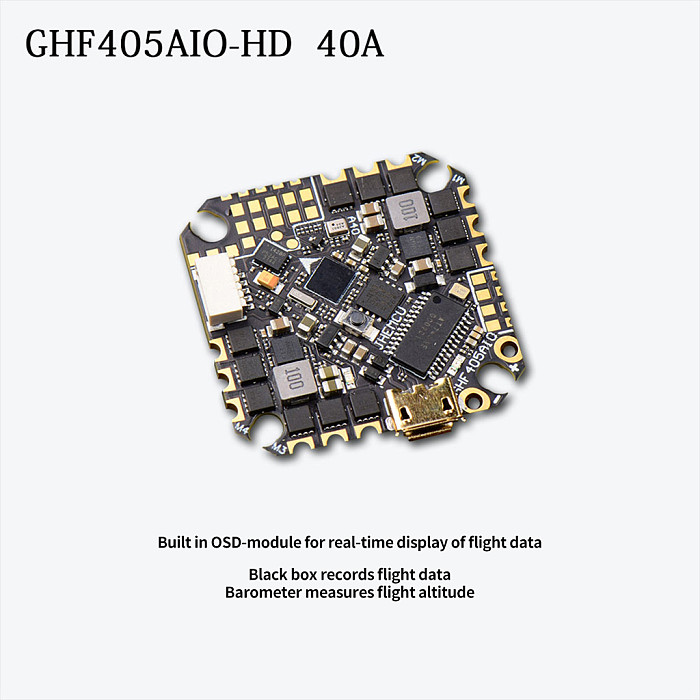

Black box: support
Barometer: Support
OSD: Support
IIC: Support
UART: support, UART1: receiver, UART6: DJIVTX/IRC/Smart Audio
BEC: BEC 5V/2.5A and 10V/2A
DJIVTX: Support, reserved special socket, equipped with plug wire.

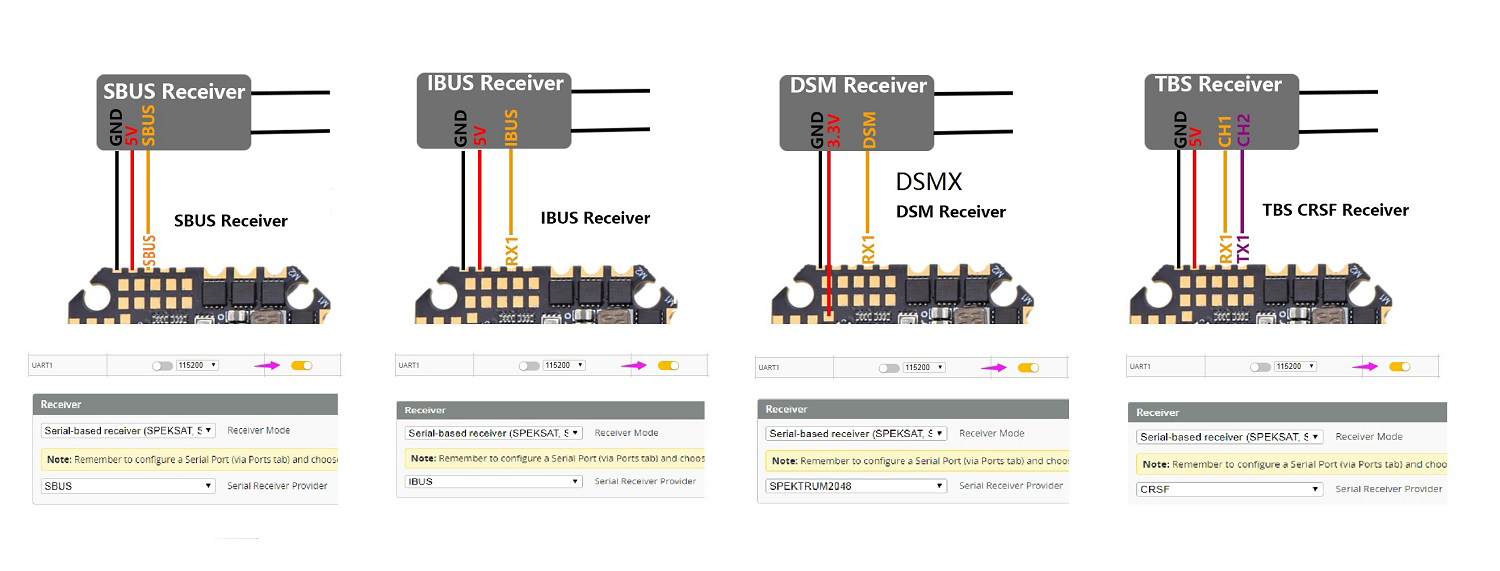

Receiver: SBUS, IBUS, DSM2, DSMX, TBS, etc.
Support WS2812 programmable LED
Support buzzer
Built-in voltage and current sensors
Weight: 7.1 grams

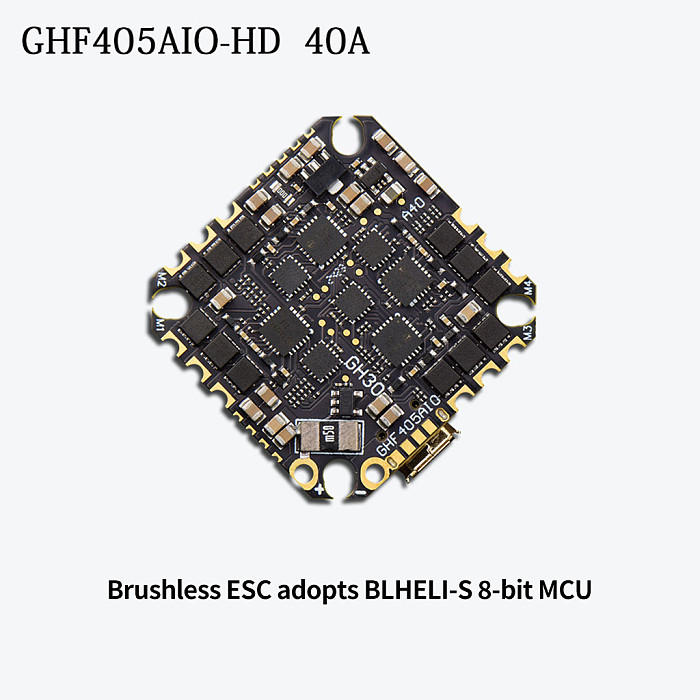

ESC parameters
BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 3S-6S Lipo
Continuous current: 25A/45A (two models are optional)
Firmware: BLHELI_S G_H_30_REV16_7.HEX
Shipping packaging
Toothpick GHF405AIO pro brushless flight controller *1
Power cord *2
DJIVTX adapter cable *1
Electrolytic capacitor *1
Shockproof rubber shock absorber *4
XT30/XT60 (one of them) *1
