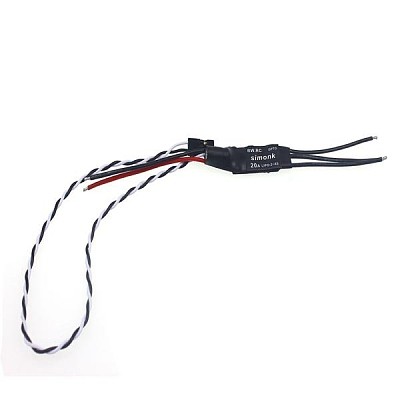

Product Name Mini SimonK 16A / 20A ESC OPTO 20-499Hz 18KHz PWM 2-4S for DIY FPV RC Quadcopter Multicopter Q250 250 Alien Drone
Item NO F15559/F15560
Weight 0.0400 kg = 0.0882 lb = 1.4110 oz
Category FOR SALE > Promotion on Auguest
Brand XT-XINTE
Creation time 2017-07-25

1 Piece Mini SimonK 16A / 20A ESC OPTO 20-499Hz 18KHz PWM 2-4S for DIY FPV RC Quadcopter  Multicopter Q250 250 Alien Drone


16A or 20A,please choose the one you request.







Description:
Specifications: RW.RC MINI 16A 2-4s
Voltage: 6-16.8V (2-4S Lipo)
Output Current: 16A
BEC: No

Signal frequency: 20-499Hz
Output PWM Frequency: 18KHz
Firmware: SimonK firmware
Weight: 2.5 grams (without wires)
Weight: 7.8 grams (including lead)
Size: 24 * 13 * 5mm

Specifications: RW.RC MINI 20A 2 -4S
Voltage: 6-16.8V (2-4S Lipo)
Output Current: 20A
BEC: No
Signal frequency: 20-499Hz
Output PWM Frequency: 18KHz of
Firmware: SimonK firmware
Weight: 3 g (without wires)
Weight: 8.5 grams (including lead)
Size: 24 * 13 * 5MM



Features:
Specially for Multi-copter, throttle respond fast;
Suit for throttle, which can compatible well with motor;
Throttle signal is twisted pair cable, reduce the crosstalk while the signal transfer by the copper wire and flight more stable;
The maximum refresh frequency up to 500Hz throttle signal, compatible with all flight controls;
Use new process ultra-low resistance MOSFET with miniaturization, and all flashes are N MOS with high withstanding current;

Package Included:
1x 16A/20A ESC
