F550 Hexa-Rotor Air Frame FlameWheel Kit 550 mm As DJI For KK MK MWC MultiCopter Hexacopter UFO Heli Item NO.: F05114

Write a Review
US$ 10.94 (5% Off)
US$ 11.52 Save US$ 0.58
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name F550 Hexa-Rotor Air Frame FlameWheel Kit 550 mm As DJI For KK MK MWC MultiCopter Hexacopter UFO Heli
Item NO. F05114
Weight 0.605 kg = 1.3338 lb = 21.3407 oz
Category DIY RC Drone Accessories > Frame
Tag
Brand DJI
Creation Time 2017-07-25

Assembled F550 6-Aix RTF Full Kit with APM 2.8 Flight Controller GPS Compass No Gimbal



Packing including :


1 X F550 Hexa-Rotor Air Frame FlameWheel

3 X D2212 920KV Clockwise Brushless Motor

3 X D2212 920KV Counter-clockwise Brushless Motor

6 X 30A Brushless ESC

3 X 9443 propellers

1 X APM 2.8 Multicopter Flight Controller

1 X GPS with Compass

1 X Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver

1 X Tall Landing Skid PTZ

1 X 11.1V 3300Mah 25C 3S lithium battery

1 X IMAX RC B3 Pro Compact Balance Charger

4 X 65mm Impact Resistance Skid-Proof Sponge Foam Tube Ball

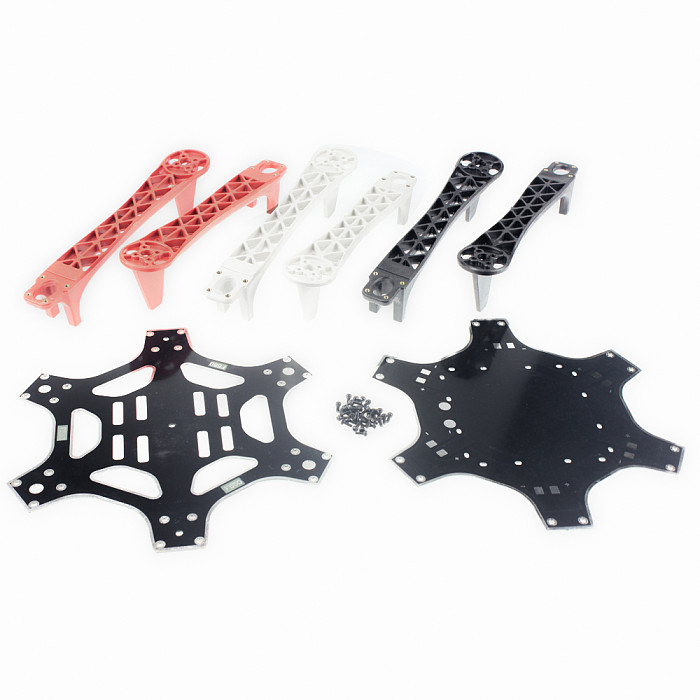

F550 Hexa-Rotor Air Frame FlameWheel Kit

(The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again)

Materials: glass fiber +ABS plastics,

Color: Random as picture

Rack weight: 424 g

Wheelbase symmetrical motor: 550 mm,

Takeoff weight: 1200-2400 grams

Propeller: 10 x 4.5in; 8 x 4.5in

(Not included)

Recommended battery: 3S-4S LiPo,

Recommended motors: 22 x 12 mm

Recommended ESC: 30A or 18A,

Includes connecting arm x 6, top cover x 1, the next cover x 1, x 36 screw





D2212 920KV Clockwise Counter-clockwise CW CCW Brushless Motor

31
Outer diameter: 28.0 mm
Height: 24.0 mm (Without Shaft)
K V: 920kv




30A Brushless ESC Speed Controller


1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.



propeller 9443

Length: 9.4 inches Product Pitch: 4.3 inches Color: White



APM2.8 ArduPilot Mega APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded


HTB1ZvoLHFXXXXcJXXXXq6xXFXXXy
Size: 70*45*13.5
Weight: 28G
APM is an open source flight control, can you play APM well depend on individual ability.
Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.
Introduction: Eliminate V2.52  Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass, more convenient to connections GPS with external compass.
Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme.
Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission.
New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.
