CopyProduct Name | HAKRC HK 32Bit 60A 2-6S 4in1 Brushless ESC DShot150/300/600/1200 PWM Oneshot125/42 Ready STM32F051 Advanced PCB for FPV Drone |
Item NO. | F43054 |
Weight | 0.052 kg = 0.1146 lb = 1.8342 oz |
Category | DIY RC Drone Accessories > Flight Control |
Brand | Hakrc |
Creation Time | 2021-02-27 |

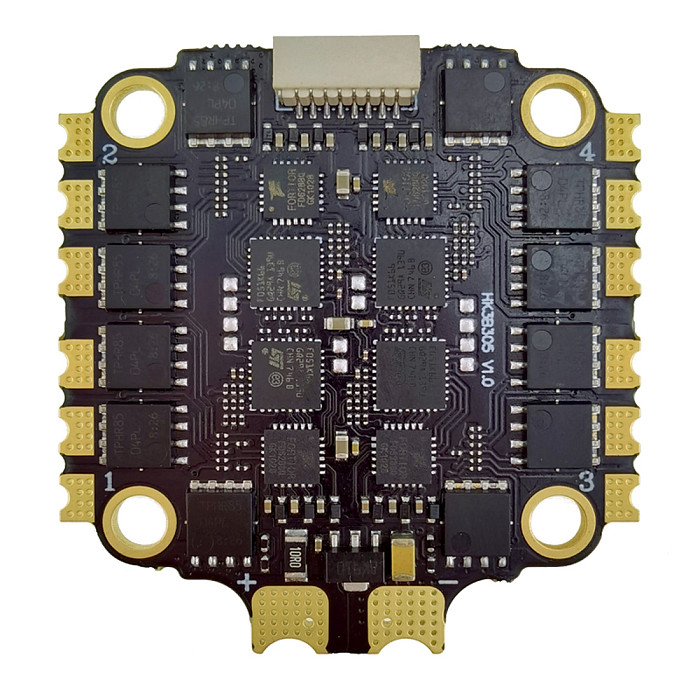

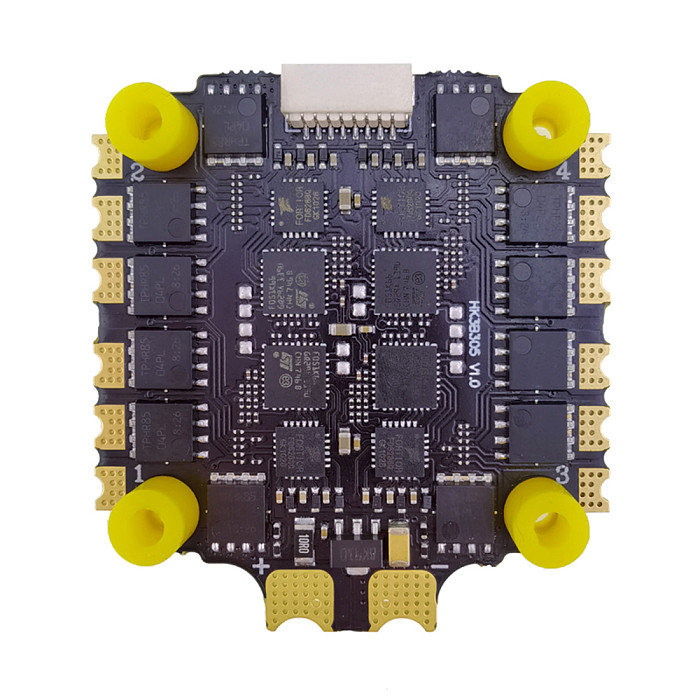

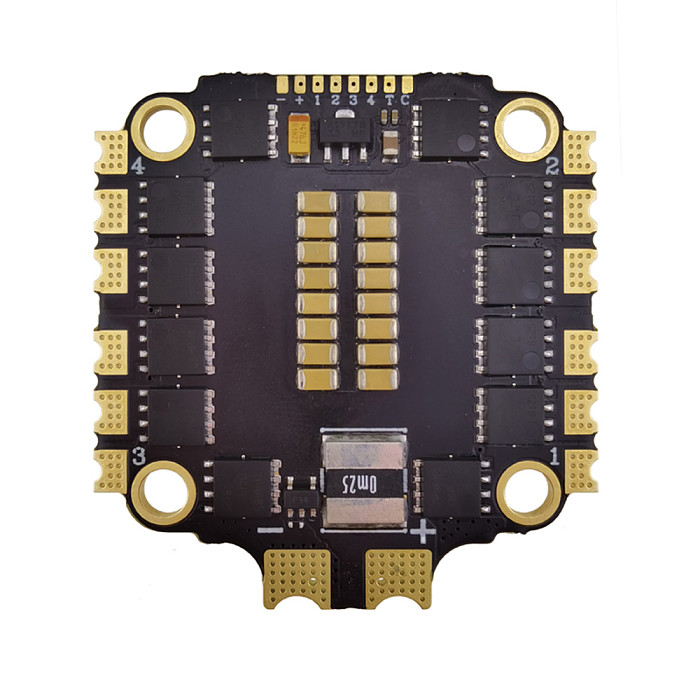

HAKRC HK 32Bit 60A 2-6S 4in1 Brushless ESC DShot150/300/600/1200 PWM Oneshot125/42 Ready STM32F051 Advanced PCB for FPV Drone
High-quality hardware
STM32F051 main control chip, operating frequency up to 48MHz. Imported mosfet, three-in-one IC driver, imported high-quality high-frequency ceramic capacitors. In the high-end PCB production process, the pads are all covered with metallization, so that you can avoid the pads from falling off during use; 3 ounces of copper thickness, 6-layer board, greatly reducing heat generation and higher efficiency.
Highly integrated, compact
It integrates 4 high-performance 60A ESCs, built-in galvanometer, and purchases new advanced SMT. After such a high degree of integration, the volume is only the same size as the flight control of the rider, and the installation and wiring will become very simple. Such an incredible size and volume are tailor-made for competition-level traversing machines.
Native support for BLHeli-32
Use BLHeli-32 firmware, which has powerful performance and rich functions; and supports multiple ways to set ESC parameters, or upgrade the ESC firmware (such as through the throttle signal line, use other development boards, or use cleanflight or betaflight firmware to control the flight control Set up or upgrade).
Hardware PWM, Damped Light
The hardware PWM drives the motor with low noise and smoother throttle response. Damped Light technology, regenerative braking function, make the motor deceleration more sensitive and effective, and control more precise; Active freewheeling technology allows the battery to recover power and extend the battery life;
DShot150/300/600/1200 Ready
It not only supports ordinary PWM throttle signal mode, Oneshot125, Oneshot42 and Multshot ultra-high speed throttle signal, but also supports the latest DShot150/300/600/1200 digital throttle, with strong anti-interference ability and fast response. The input and output wires use soft silicone wires, which are very durable, resistant to high temperatures and convenient for soldering.
HK 32BIT 60A 4IN1 ESC Parameter
Working voltage: 2-6s
Maximum continuous working current: 60A
Maximum instantaneous working current: 70A
Support communication mode: dshot150 / 300 / 600 / 1200 PWM, oneshot 125, oneshot 42 and multshot
Parameter adjustment software blheli 32
Firmware version bl32.7
Installation hole spacing: 30.5 * 30.5mm
Product size: 45 * 42.5 * 6mm
Package size: Φ 62 * 33mm
The net weight of the product is 14.5g
Package weight: 40g
