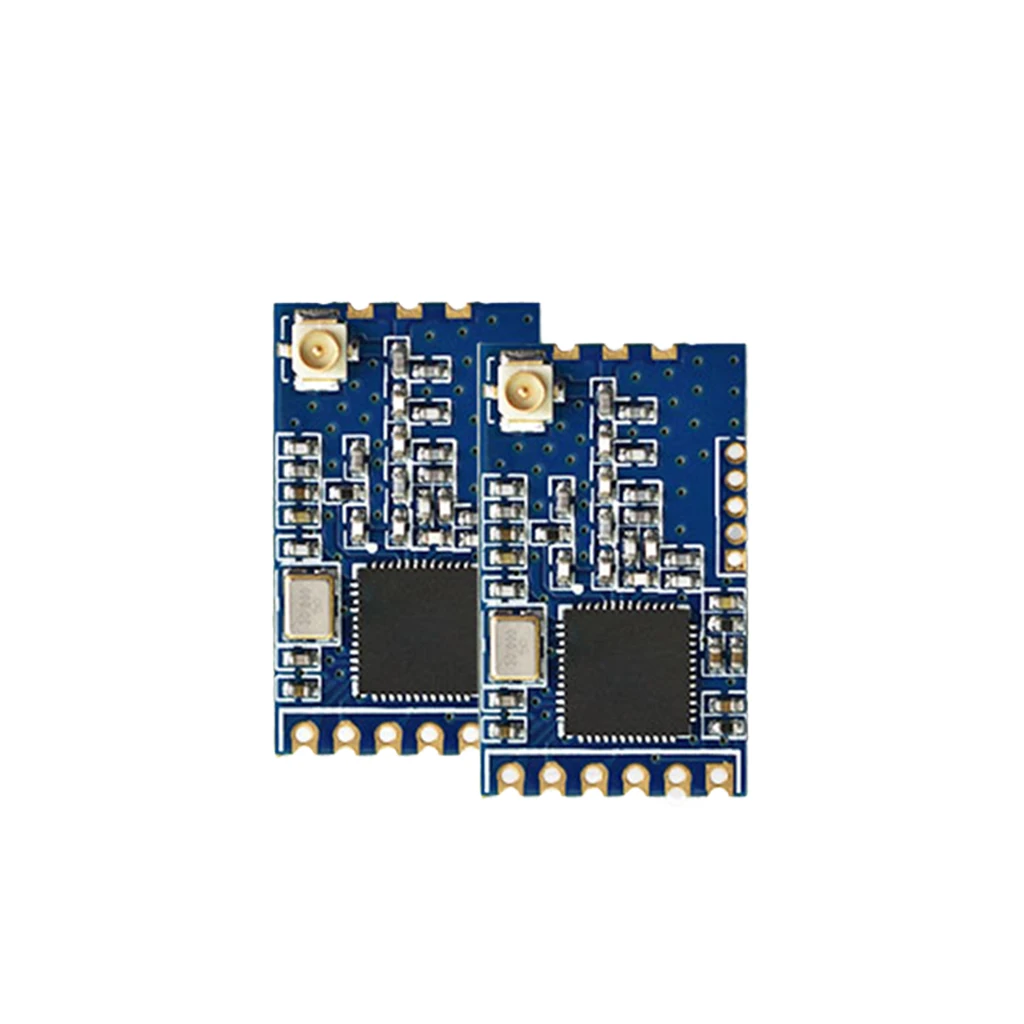

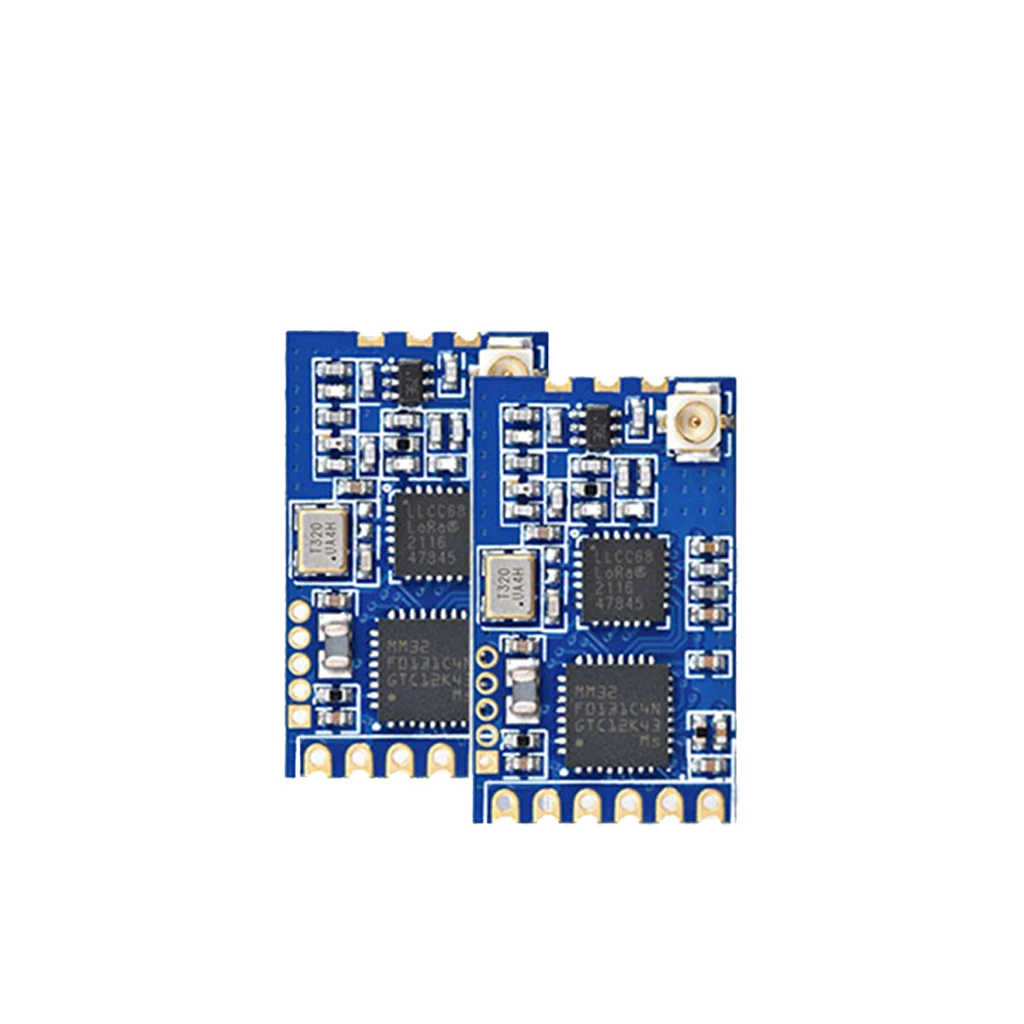

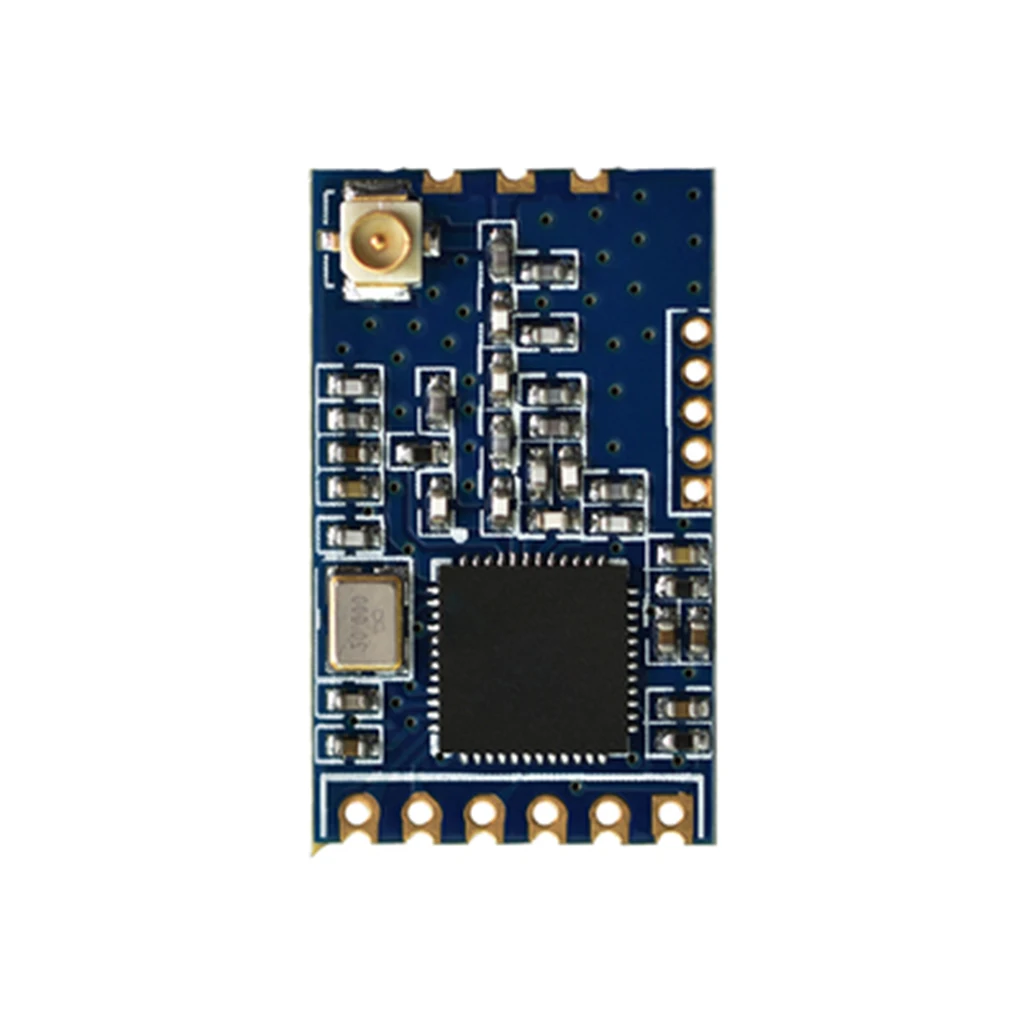

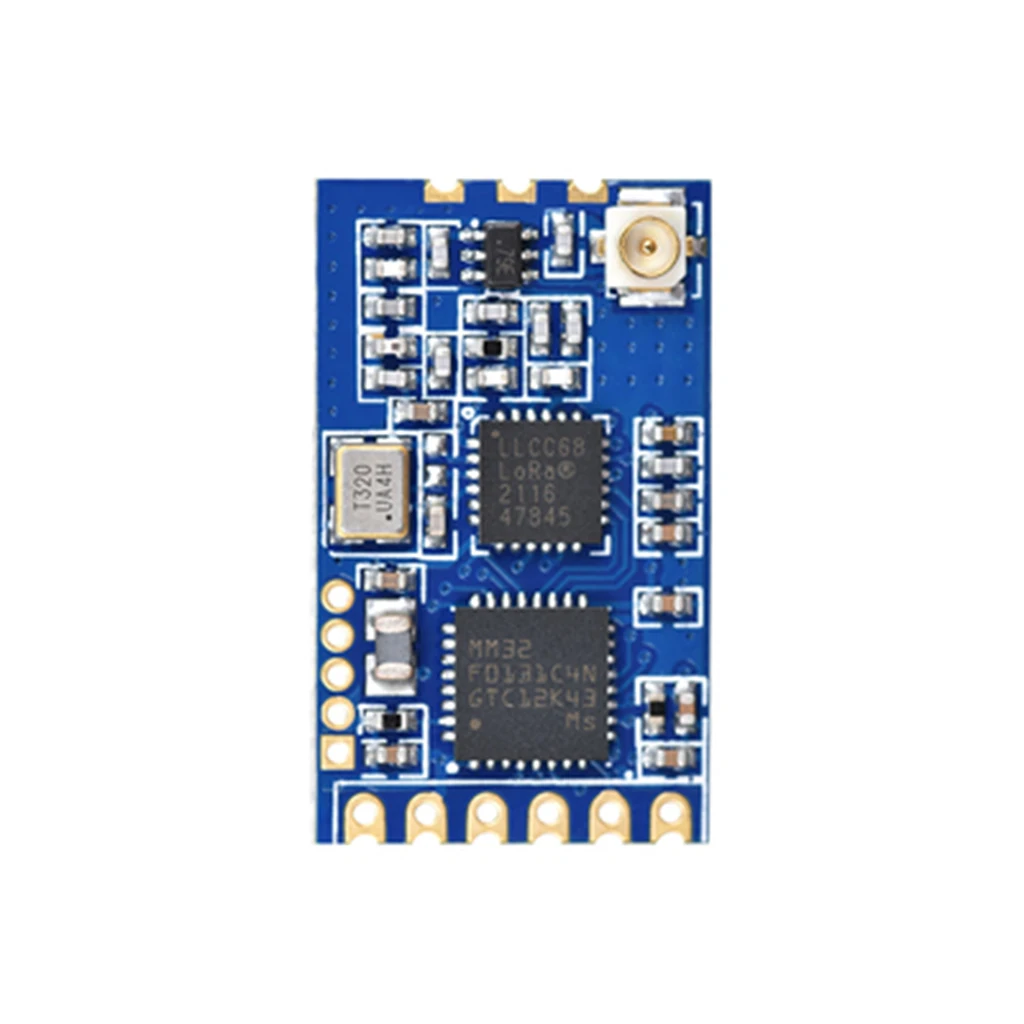

Wireless data transmission module, 433M wireless serial port network module, UART interface, low power free development mode Item NO.: F46772-D1 F46772-D2 F46772-D3

Wireless data transmission module, 433M wireless serial port network module, UART interface, low power free development mode

Characteristic
UART interface
Power and
SI4438 chip
Compatible with 420MHz-444.8MHz frequency band
Ultra low power consumption mode
In the config command
multiple of options
1500m transmission distance
High sensitivity
SMD type
Standard TTL level communication, simple at command to set various RF parameters. Power on and ready to use, quick start, no need to develop any protocol, beginner can also use easily.

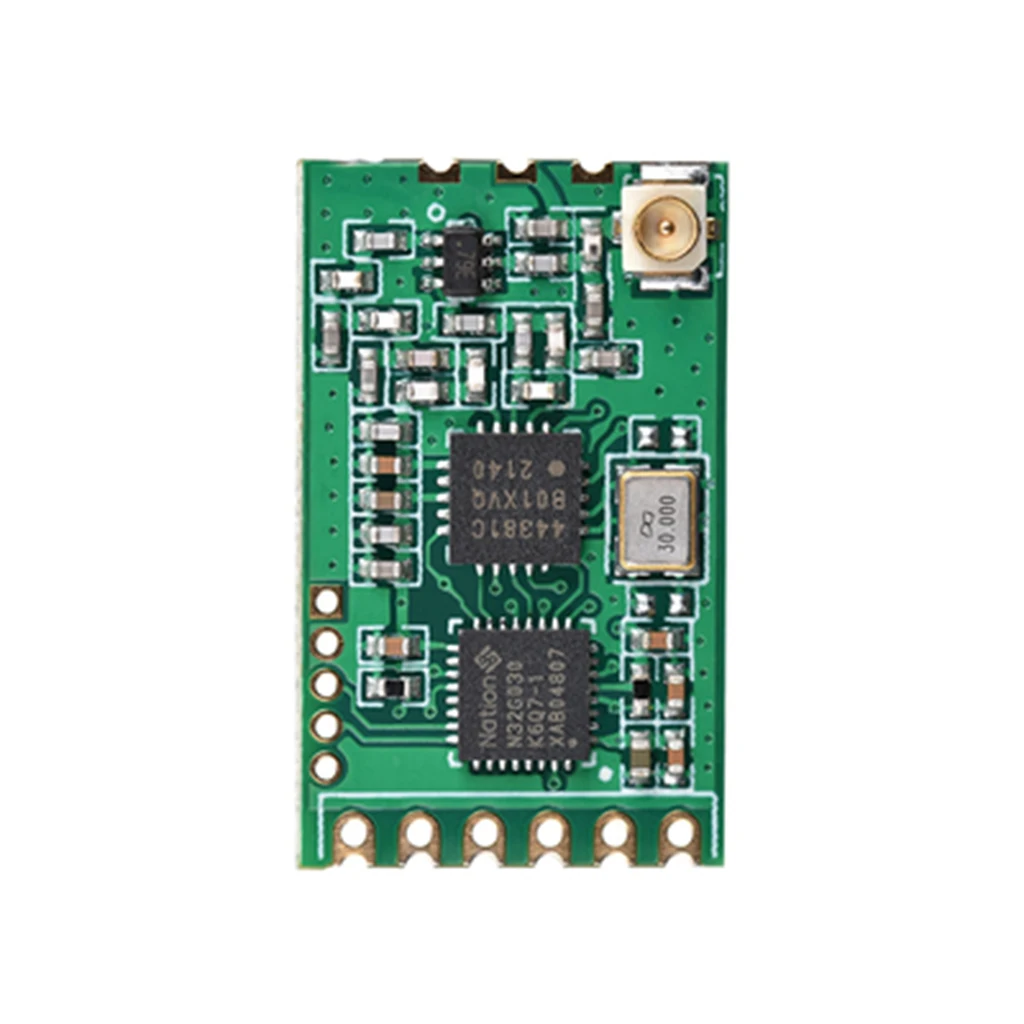

Onboard Sli4438 chip, support 32 configurable channels (420MHz-444.8MHz)
8 baud rates over the air (0.6kbps-500kbps) and 8 power levels (-15dBm ~ +20dBm), and support ultra-low power mode (10ΜA)
Maximum single packet support 252bytes, more flexible applications.

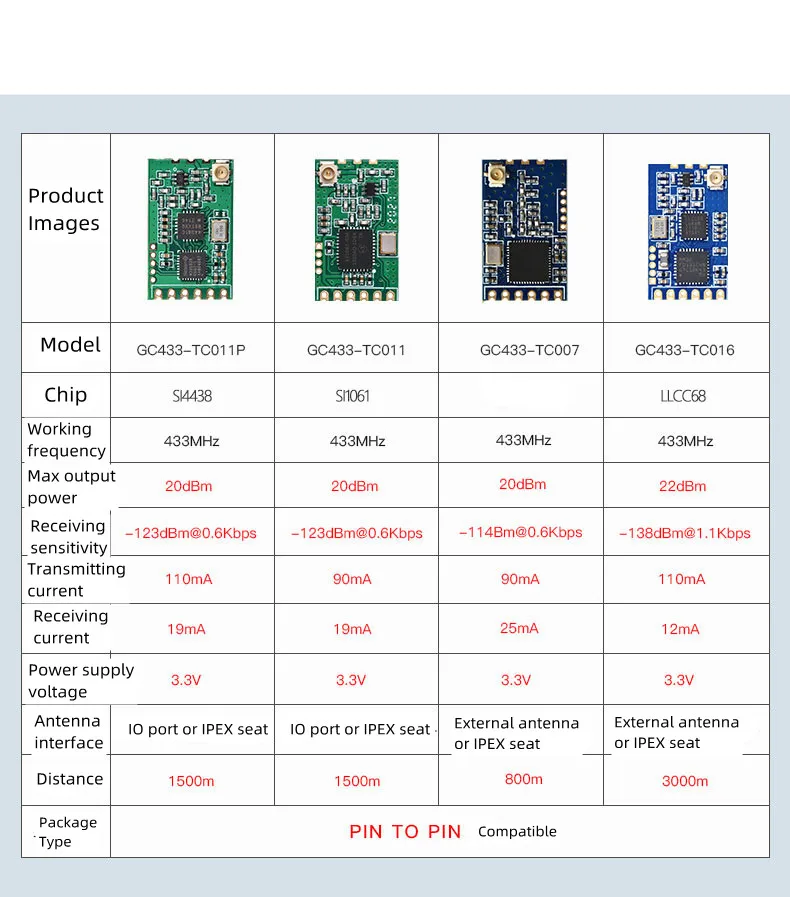

Parameters

Q&A
Q: What is the UART hardware module?
A: It is a module that can be used for wireless communication through the serial port. Users do not have to worry about its simple wireless parameters, but only need to send and receive the data that needs to be processed through the serial port, which greatly reduces the development cost of wireless communication and shortens the cycle time. R&D
