BETAFPV Air75 II Brushless Whoop Frame Item NO.: F54394-A1 F54394-A5

Sold (11)

US$ 4.99

Color: Black Clear Blue Clear Orange Clear Purple Clear White

Quantity: Stock ( 49999984 )

Estimate Shipping Cost

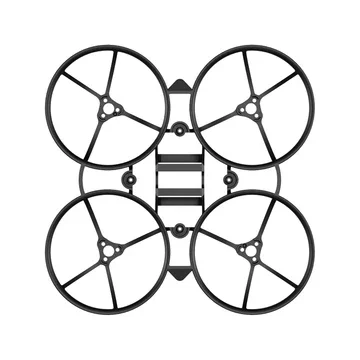

BETAFPV Air75 II Brushless Whoop Frame

Product Name	BETAFPV Air75 II Brushless Whoop Frame
Item NO.	F54394-A1 F54394-A5
Weight	0.02 kg = 0.0441 lb = 0.7055 oz
Category	DIY RC Drone Accessories > Frame
Brand	BETAFPV
Creation Time	2025-07-01

For more than one year, the Air75 Frame defined lightweight agility. Now, forged alongside our global pilot community, the lighter Air75 II Frame (4g) reimagines the form. Our R&D team deconstructed every arm brace, duct geometry, and crash point. The result? A radical yet refined frame: 4 arm braces replace 6, paired with optimized ducts and connecting structure. This shaves frame amplitude while adding 11% thrust and delivering near-perfect PID response. Beneath the form lies resilience. An optimized PP matrix absorbs brutal impacts from crashes. Refined details – screw protection structure, enlarged FC holes, and a lowered duct profile – ensure dominance. All engineered for relentless, worry-free flying.

Air75 II Brushless Whoop Frame - new form, peak performance

Bullet Points

Arm braces reduced from 6 to 4 + optimized duct geometry increase 11% thrust—while maintaining uncompromising durability.
Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.
Optimized PP blend makes it crash ready.
Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.
At just 4g, the Air75 II achieves a 10% weight reduction compared to Gen 1.

Specifications

Item: Air75 II Brushless Whoop Frame
Material: PP
Weight: 4.00g
Wheelbase: 75mm
Motor Mounting: 3-M1.4-6.6mm
Flight Controller Mounting Hole: 25.5×25.5mm
Battery Slot Size: 16.3×6.3mm
Maximum Size: 99.1*99.1*16.2mm
Color: Black, Transparent Blue, Transparent Orange, Transparent Purple, Transparent White

	Air75 II Brushless Whoop Frame	Air75 Brushless Whoop Frame
Weight	4.00g	4.45g
Wheelbase	75mm	75mm
Duct Diameter	42.0mm	42.5mm
Duct Height	4.5mm	4.7mm
Arm Braces	4	6
Motor Fixed Slot	Supported	Supported
Screw Protection Structure	Supported	Not Supported
Propellers	40mm propellers	40mm propellers

Air75 II Brushless Whoop Frame arm braces

Diagram

Air75 II Brushless Whoop Frame diagram

Frame Reshaped: +11% Thrust

By strategically reducing arm braces from 6 to 4 and refining duct aerodynamics, the Air75 II achieves 11% higher thrust versus Gen 1 – delivering instant throttle response and sustained power for the quadcopter.

Air75 II Brushless Whoop Frame thrust increase 11%

Reliable Flight

After dozens of structural refinements, our final connecting arms design effectively reduce frame vibration. Paired with Feedforward tuning, this achieves a near-perfect PID step response – translating to crisp maneuvers and buttery-smooth freestyle flow.

Air75 II Brushless Whoop Frame connecting structure

Optimized Resilient Material

Our battle-tested PP blend laughs off concrete kisses and tree bites. Survive your most violent freestyle crashes – and fly home.

Air75 II Brushless Whoop Frame - fly harder, worry less

Details Matter

Every gram perfected: Retained motor fixed slots ensure precise alignment, new motor screw protection structures deflect crash impacts, and enlarged 1.2mm FC holes fit 1.4mm screws effortlessly. Where pilot priorities meet engineering obsession.

Air75 II Brushless Whoop Frame - details
