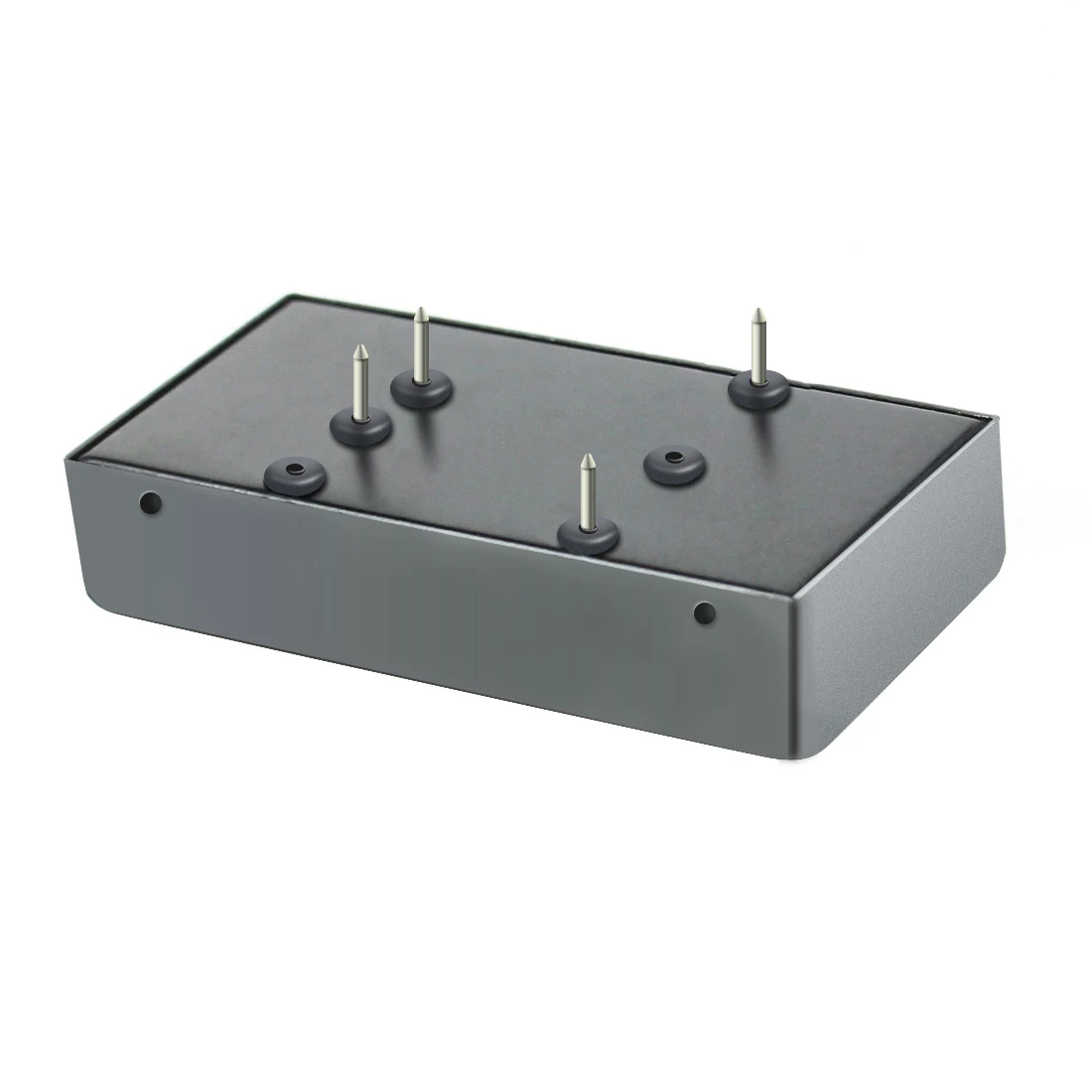

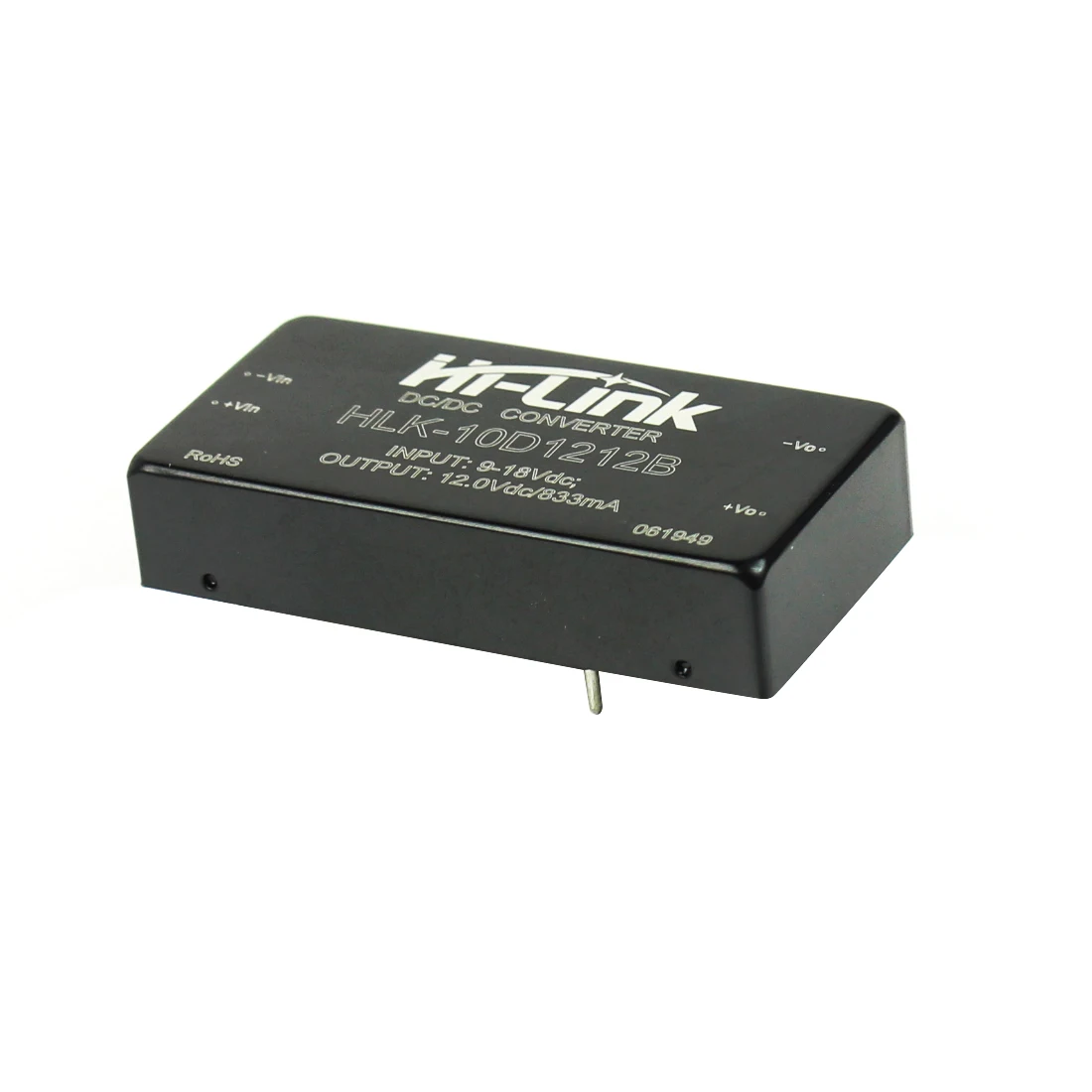

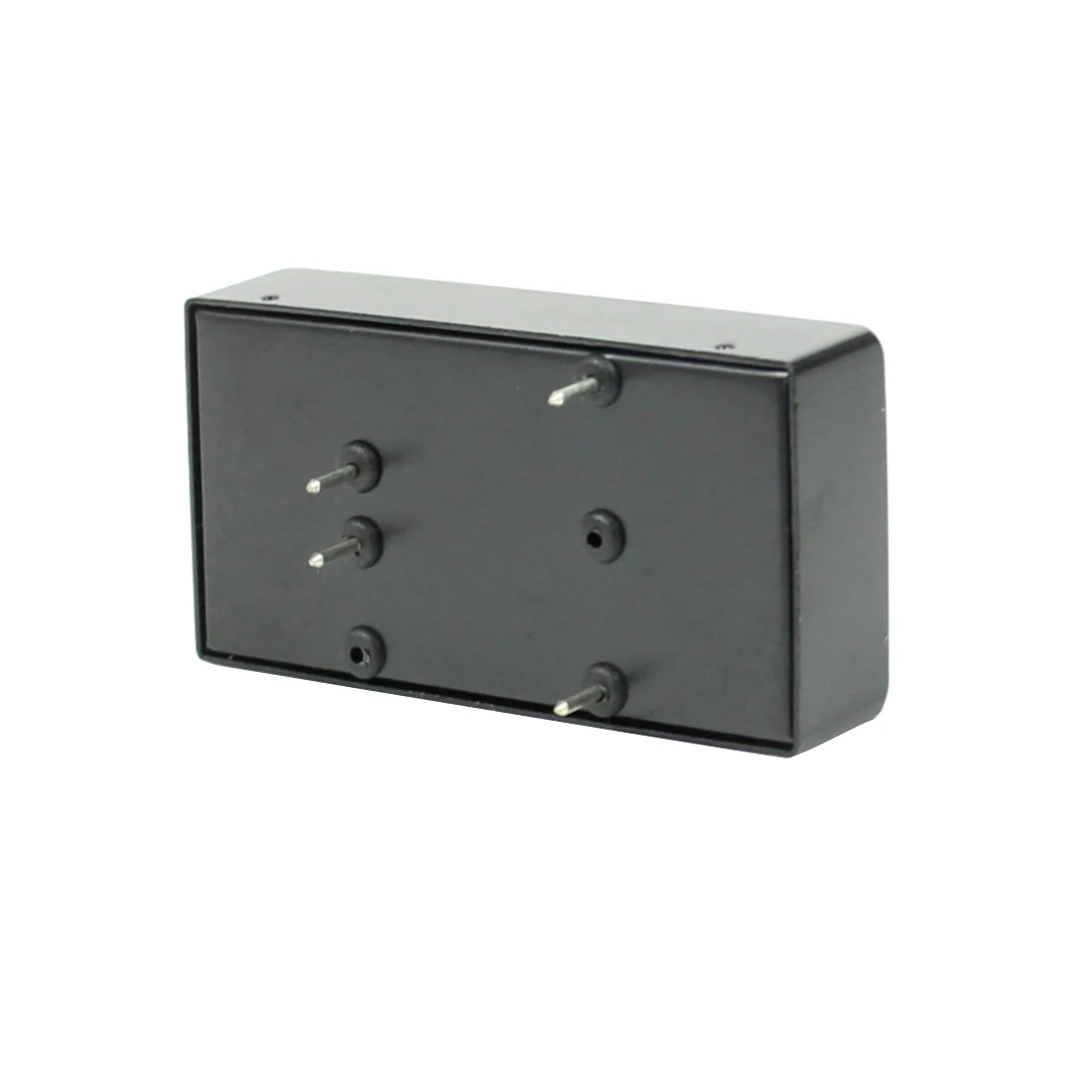

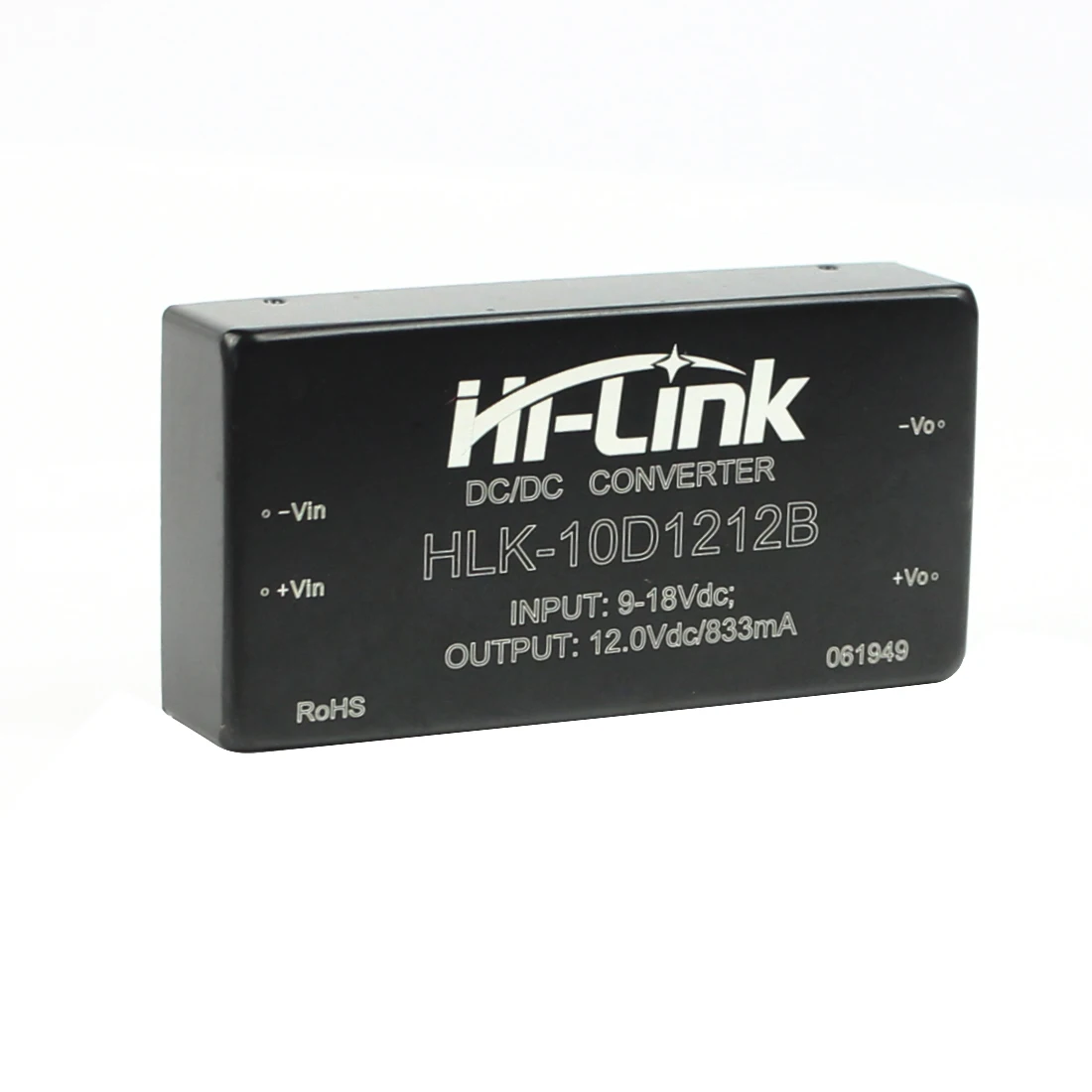

Copy| Product Name | HI-LINK HLK-10D1212B 12V to 12V833mA10W Isolated DC Switching Power Supply Module DCDC Wide Voltage Input |
| Item NO. | F37269 |
| Weight | 0.045 kg = 0.0992 lb = 1.5873 oz |
| Category | Consumer Electronics > Industrial Module |
| Brand | HI-LINK |
| Creation Time | 2020-04-17 |
Product performance description
1.Ultra wide range input (2: 1), output 10W.Voltage:9-18VDC
2.Conversion efficiency 86%（Typ）
3.Isolation voltage 1500Vdc
4. Ultra-low standby power: 0.3W(Typical value)
5. Super fast startup: 100mS (Typical value)
6. range of working temperature: -40°C~+85°C
7. Output short circuit protection, over current protection
8. Metal case, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting,dust-proof, moisture-proof, vibration-proof.
11.High reliability, long life design, long continuous working time
12.Size: 50.8 * 25.4 * 11mm
