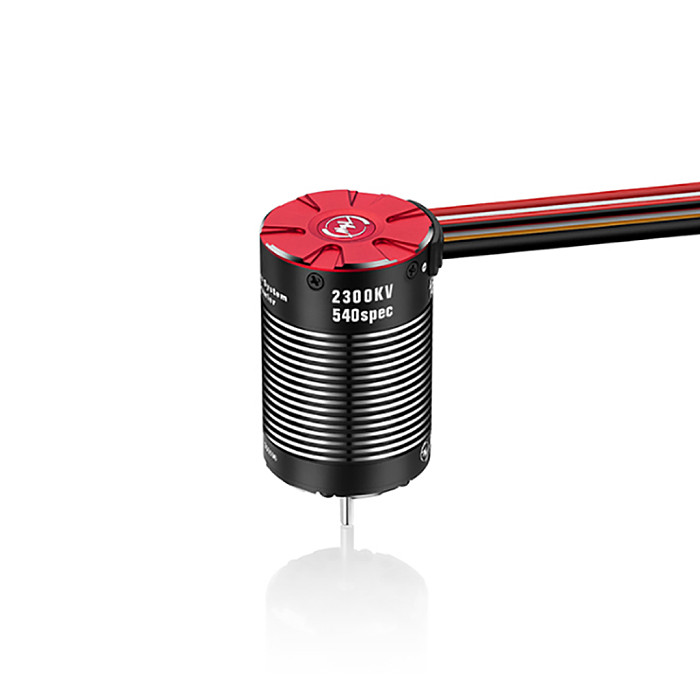

(HobbyWing) QuicRun Fusion PRO Brushless Waterproof 60A 2-in-1  2300KV Motor For 1/10th Rock Crawler Car Vehicles

(HobbyWing) QuicRun Fusion PRO Brushless Waterproof 60A 2-in-1 2300KV Motor For 1/10th Rock Crawler Car Vehicles Item NO.: F47605

Write a Review
US$ 116.49
US$ 129.43 Save US$ 12.94 (10% Off)
Quantity
Out Of Stock

Copy and share this link on social network or send it to your friends

Copy
  • (HobbyWing) QuicRun Fusion PRO Brushless Waterproof 60A 2-in-1 2300KV Motor For 1/10th Rock Crawler Car Vehicles
Product Name (HobbyWing) QuicRun Fusion PRO Brushless Waterproof 60A 2-in-1 2300KV Motor For 1/10th Rock Crawler Car Vehicles
Item NO. F47605
Weight 0.23 kg = 0.5071 lb = 8.1130 oz
Category Toy and Hobbies > DIY Motor Parts
Brand Hobbywing
Creation Time 2022-06-16

(HobbyWing) QuicRun Fusion PRO Brushless Waterproof 60A 2-in-1  2300KV Motor For 1/10th Rock Crawler Car Vehicles

Product Description:
Brand:HobbyWing
QuicRun Fusion Pro

Specifications
Product Name:QuicRun Fusion Pro
Product Number :30120402
Type :
  Scale  1/10th
  Brushed/Brushless  BL
  Sensored/Sensorless  SD
  Waterproof  Waterproof

Specifications:
Cont./Peak Current :   60A/200A
Input Voltage 2-3S Lipo/6-9 Cell NiMH
BEC Output Switch Mode:6V/7.4V,6A
Motor kv:2300KV
Diameter/length of Motor 37mm/58mmm
Shaft diameter / exposed shaft length 3.175mm/16mm
Motor Poles :4

Wires & Connectors:
 Input Wires Red-14AWG-330mm*1/Black-14AWG-330mm*1
 Input Connectors XT60
 (Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via :
 SET Button on ESC  Not Supported
 LED Program Box Supported
 LCD Program Box Not Supported
 WiFi Module Not Supported
 Program Port Independent programming interface(switch position)

Firmware: Firmware Upgrade Not Supported

Size &Weight:
Size 37*58mm
Weight 209g (including wires&connectors)

Applications: Vehicles 1/10throck crawler


The package contains:
Motor*1
