Serial to WiFi Converter USR-W610 1-Port RS485 RS232 to Wifi Ethernet TCP/IP Wireless Server Support WatchDog Modbus Gateway RTU
-
Detail
- Product Name: Serial to WiFi Converter USR-W610 1-Port RS485 RS232 to Wifi Ethernet TCP/IP Wireless Server Support WatchDog Modbus Gateway RTU
- Item NO.: Q24970-2 Q24970-D2-2 Q24970-D3-2 Q24970-D4-2
- Weight: 0.967 kg = 2.1319 lb = 34.1099 oz
- Category: Consumer Electronics > Industrial Module
- Creation Time: 2023-02-03
- Serial to WiFi Converter USR-W610 1-Port RS485 RS232 to Wifi Ethernet TCP/IP Wireless Server Support WatchDog Modbus Gateway RTU

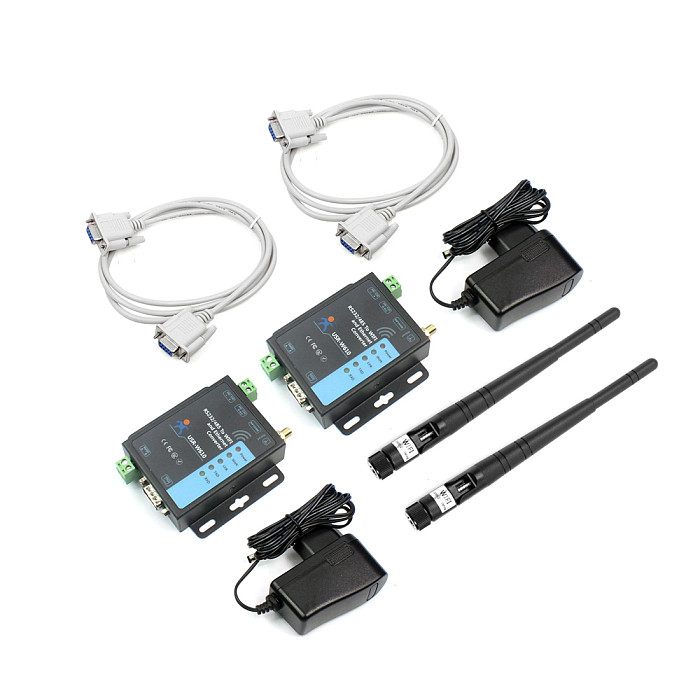

2 Units Serial to WiFi Converter USR-W610, which can realize bidirectional transparent transmission between RS232/RS485 and WiFi/Ethernet.
Note, there are different kinds of Power adapters optional, UK/EU/US/AU Plug, please choose the product you like.

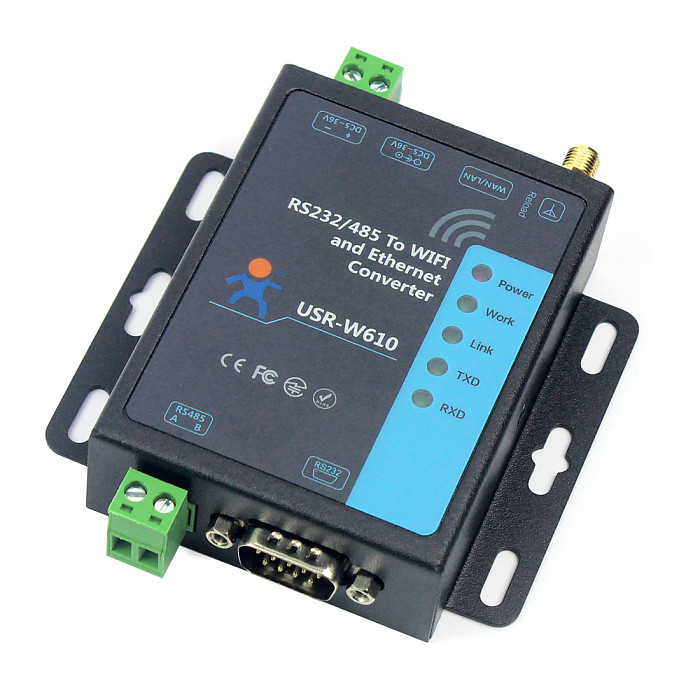

USR-W610 is both an RS485 to WiFi Converter and an RS232 to WiFi Converter, which can realize the bi-directional transparent data transmission between RS232/RS485, WiFi and Ethernet.
● 1-port RS-232 or RS485 to 802.11 b/g/n WLAN serial device server
● Links serial and Ethernet devices to an IEEE 802.11b/g/n network
● Supports TCP server/client, UDP server/client,https client, Virtual COM
● Supports Modbus RTU to Modbus TCP
● Supports multiple networking mode with 1 RJ45 ethernet port
● MQTT/SSL special firmware (contact sales)Introduction
Serial To WiFi and Ethernet Converter USR-W610, which can realize bidirectional transparent transmission between RS232/RS485 and Ethernet/WiFi. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by converter.
Features
-
Support WIFI 2.4GHz 802.11b/g/n wireless standards.
-
Support TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
-
Support AP, STA, AP+STA.
-
Support RS232 and RS485 serial ports.
-
Support electrostatic protection.
-
Support identity packet function.
-
Support heartbeat packet function.
-
Support Websocket function.
-
Support timeout reset function, timing reset function.
-
Support Web Server, setup software, serial/network AT command to configure module.
-
Support hardware reload.
-
Support usrlink.
Wi-Fi
Certificate
FCC/CE
WiFi
802.11 b/g/n
Frequency Range
2.412GHz-2.484GHz
Transmit Power
802.11b: +19dBm(Max)
802.11g: +18dBm(Max)
802.11n:+17dBm(Max)Receive Sensitivity
802.11b: -89dBm
802.11g: -81dBm
802.11n: -73dBmHardware
Interface Standard
RS232:300～460.8Kbps
RS485:300～230.4KbpsInput Voltage
DC5～36V
Operating Temp.
-40℃～ 85℃
Storage Temp.
-40℃～ 125℃
Size
86*82.5*25mm(L*W*H)
Software
Network Mode
Station/AP/AP+Station
Security
WEP/WPA-PSK/WPA2-PSK
Encryption
WEP64/WEP128/TKIP/AES
Work Mode
Transparent transmission / serial AT command/
HTTP Client,Modbus TCP<=>Modbus RTUSetting Command
AT+command
Networking Protocol
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
Max. Client Number in TCP Server Mode
24
Configuration
Web sever+ AT command
