CC1101PA+LNA RF 433M 30dBm Wireless Transceiver Module 1W High Power Industrial Data Acquisition Module with IPEX Antenna Item NO.: F46766 F46767

Write a Review Sold (10)

US$ 7.46

Version: with IPEX Antenna Module Only

Quantity: Stock ( 19999988 )

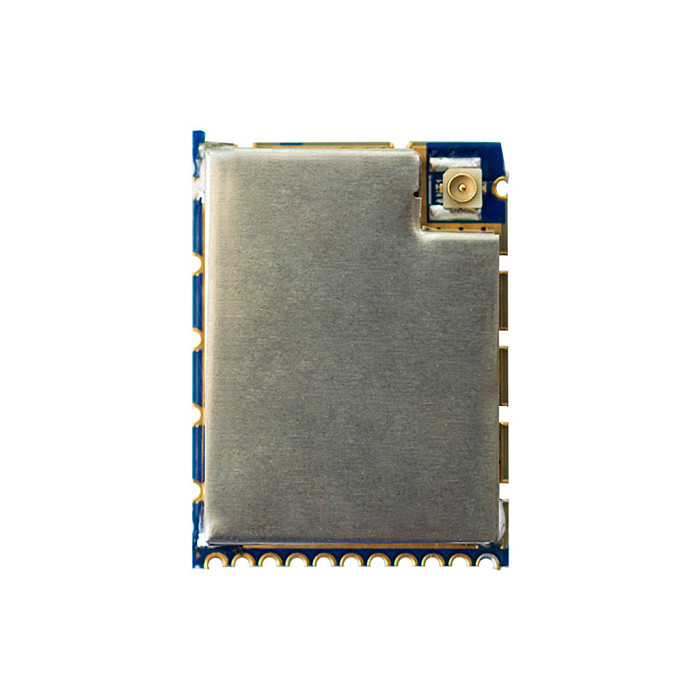

CC1101PA+LNA RF 433M 30dBm Wireless Transceiver Module 1W High Power Industrial Data Acquisition Module with IPEX Antenna

Product Name	CC1101PA+LNA RF 433M 30dBm Wireless Transceiver Module 1W High Power Industrial Data Acquisition Module with IPEX Antenna
Item NO.	F46766 F46767
Weight	0.015 kg = 0.0331 lb = 0.5291 oz
Category	Consumer Electronics > Industrial Module
Creation Time	2022-04-15

CC1101PA+LNA RF 433M 30dBm Wireless Transceiver Module 1W High Power Industrial Data Acquisition Module with IPEX Antenna

Characteristic

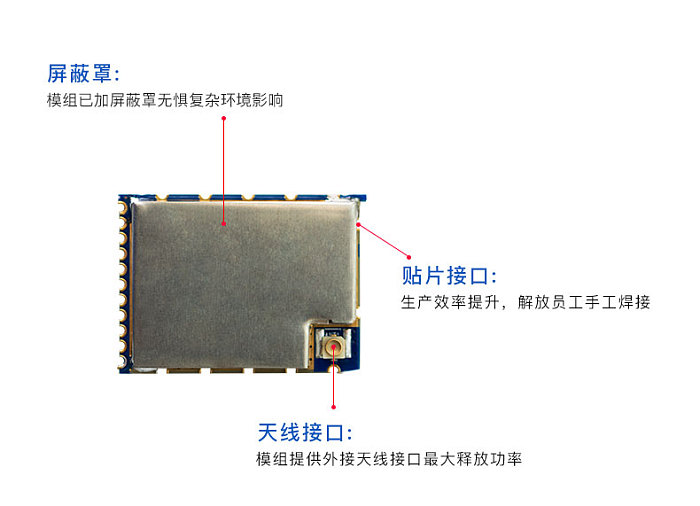

Shield cover, the module has added the shield cover fearlessly to the complex environment.
SPI communication
1500m distance, transmission power 30dBm.

Parameters
Chip: CC1101
Transport frequency: 433MHz
Operating voltage: 3.3V / 9V
Transmission power: 30dBm
Receive Sensitivity: -115dBm
Communication distance: 1.5KM
Communication interface: SPI
Antenna interface: IPEX antenna support
Package Method: SMD
Size: 21x28mm

Q&A
Q: What is the SPI hardware module?
A: The SPI wireless module is a pure hardware wireless module, its interface uses SPI universal mode, it needs external MCU connection. MCU programming to set the module chip register parameters to complete data communication.
