Copy| Product Name | DIEWU TXB026 Active RS232 to RS485 Converter with High Quality Converter Power Cable Converter for Industrial use |
| Item NO. | F35730/F35731 |
| Weight | 0.204 kg = 0.4497 lb = 7.1959 oz |
| Category | Consumer Electronics > Industrial Module |
| Brand | DIEWU |
| Creation Time | 2020-01-18 |

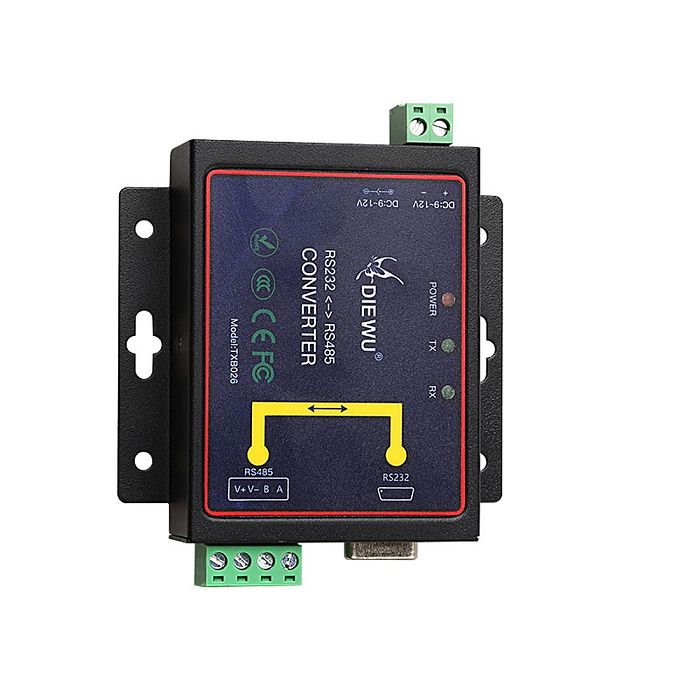

DIEWU TXB026 Active RS232 to RS485 Converter with High Quality Converter Power Cable Converter for Industrial use
Product specification
|
Model number |
TXB026 |
|
Chipset |
ZT323+ZT485 |
|
Port number |
1*fe-male com port,1*RS485 port |
|
Standard |
compatible with RS232 and RS485 standard |
|
LED Indicator |
Power, TX, RX |
|
Baud rate |
300bps~115200bps |
|
Dimension |
94*86*25mm |
|
Power Input |
DC9V-12V |
|
Power Consumption |
Max0.15W |
|
Environment |
Operating Temperature: -10 ℃-55 ℃ |
|
Relative Humidity: 10%-90%(non-condensing) |
|
|
Storage Temperature: -40℃-85℃ |
|
|
Relative Humidity: 5%-90%(non-condensing) |
RS232 Pin define：
|
DB9 Fe-Male Connector |
Pin |
RS-232 |
|
|
1 |
DCD |
|
2 |
TXD |
|
|
3 |
RXD |
|
|
4 |
DTR |
|
|
5 |
GND |
|
|
6 |
DSR |
|
|
7 |
RTS |
|
|
8 |
CTS |
|
|
9 |
RI |
RS485 Pin define：
|
4P |
Pin |
RS-485 |
|
|
1 |
Power output (max200mA) |
|
2 |
GND |
|
|
3 |
B |
|
|
4 |
A |
