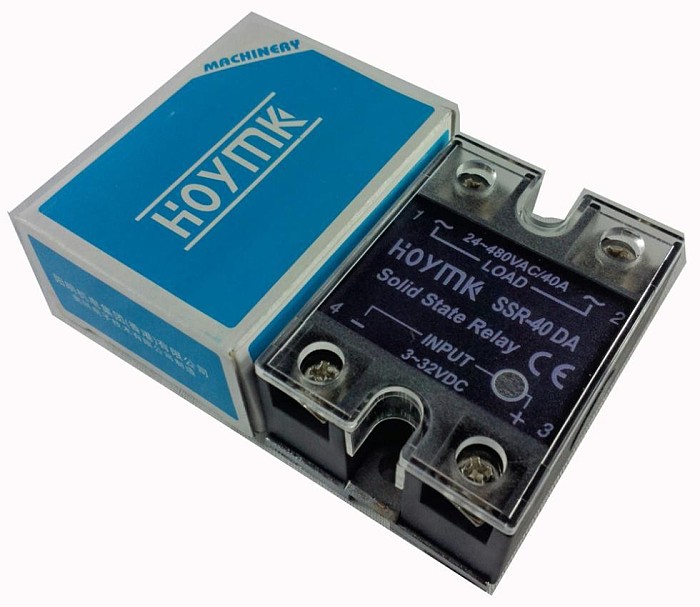

Hoymk SSR-40DA 40A DC-AC SSR 40DA Single Phase Solid State Relay

Hoymk SSR-40DA 40A DC-AC SSR 40DA Single Phase Solid State Relay

US$ 4.87
Customized Requirements
Add to Cart
Estimate Shipping Cost
  • Detail

    Hoymk SSR-40DA 40A DC-AC SSR 40DA Single Phase Solid State Relay


    Product Features:

    1, TRIAC Output,Zero Voltage Opens, Zero Current Turnoff;

    2, Optical Isolation between the Input Loop and Output Loop;

    3, Dielectric Strength 2500V between Input-Output;

    4, 100% Load Current Aging Test.



    This is Solid State Relay SSR-40DA 40A 3-32VDC.

    Control: DC Control AC

    Load Voltage :24-480VAC

    Control Voltage 3-32VDC

    Current DC:3-25mA

    -State Leakage Current: 2mA

    -State Pressure 1.5VAC

    Off Time 10mS

    Dielectric Withstand Voltage :2500VAC

    Insulation Resistance: 500M /500VDC

    Working Temperature:-30 -+ 75

    Mounting:Bolts

    Indicating:LED

    Original Box: Yes

    Color: As Picture

    Weight:132g

    Size:62MM*45MM*26MM

    Packing Content: 1 x Solid State Relay SSR-40DA



    Safety Precautions :


    1 , Must be used when the load current is higher than 5A is mounted on a heat sink or metal base plate with the corresponding cooling effect , and coated with thermal grease between the SSR Heat bottom mounting surface , 40A above plus fan forced cooling or water .

    2 , Using the AC inductive load , high transient voltages and inrush current is applied to the output, which may cause the solid state relay conduction or damaged, usually require access at the output voltage with a specific clamping voltage control devices, such as double Zener diode or varistor (MOV). Rated voltage varistor is recommended to take a 1.6-1.9 times ;

    3, The control close to the minimum load current is small current load shall load a dummy load resistor in parallel to reduce the leakage current compared to the output of the load high residual voltage.

    4, In order to avoid the temperature exceeds the allowable value of solid-state relays , considering the cooling effect of the application should be designed and installed position , only when two or more solid state relays mounted side by side , you should leave appropriate spacing.

    5 , The parallel between the output may not be more than just the use of solid-state relays , in an attempt to increase the output current. However, output can be used in tandem in order to apply a higher operating voltage.

    6, When using more than just a solid state relay when shared control power inputs that can be used in tandem can also be used in parallel .

    7 , Capacitive load caution this piece , please select the capacitive load dedicated solid state relays.
