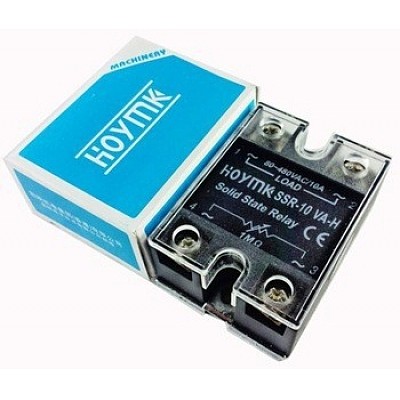

Hoymk SSR-10VA-H 10A Resistance Regulator Single Phase Solid State Relay
Temperature Control SSR 10VA
Feature:
1,The Input and Output - Isolation Voltage between the Heat Plate 2500VAC;
2,Built-in RC Snubber Circuit ;
3,With a Security Seal ;
4,External Potentiometer Output Voltage Regulation Can be Achieved , So That the Application Simplistic ;
5,SCR Phase Output , Wide Adjustment Range ;
6,100 % Load Current Aging Test , Through European CE Certification
Specifications:
Control: Resistance Type Pressure Regulating
Load Current:10A
Load Voltage: 24 -380VAC/80-480VAC
Control Voltage: VR:250KΩ/110VAC.500KΩ/220VAC.1MΩ/380VAC
Control Current :/
State Drain Current: ≤12mA
State Buck :≤1.5VAC
Off Time: /
Dielectric Strength: Input and Output Side - Cooling Pads 2500VAC
Insulation Resistance: 1000MΩ/500VDC
Work Instructions: LED
Weight: 132G
The characteristics of solid state relays :
Solid-state relays because there is no
mechanical contact, and other mechanical parts, so it's very high
reliability, long life, at the moment of breaking through with no spark,
and no noise, the switching speed is quite fast, the operating
frequency is quite high . Because this kind of relay between input and
output using optocouplers, and therefore it has a good anti-jamming
performance.
Another feature is the solid state
relay driving voltage, current is small, that is, to the input terminal
of a small signal, to complete control of the system. So by TTL, CMOS
and other digital circuits directly drive. It is widely used in digital
program-controlled device, a data processing system terminal devices,
and other kinds of automatic control systems.
