USR-GPRS232-7S3 Serial UART TTL to GPRS/GSM/EDGE Module Httpd Client Supported Highly-Integrated GPRS Module

US$ 7.73

Customized Requirements

Add to Cart

Estimate Shipping Cost

Detail

Product Name: USR-GPRS232-7S3 Serial UART TTL to GPRS/GSM/EDGE Module Httpd Client Supported Highly-Integrated GPRS Module
Item NO.: F17058
Weight: 0.044 kg = 0.0970 lb = 1.5521 oz
Category: Consumer Electronics > Industrial Module
Brand: USRIOT
Creation Time: 2017-07-25

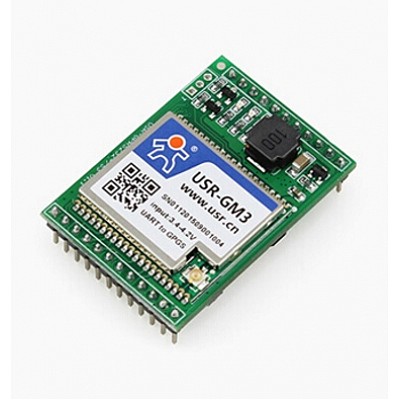

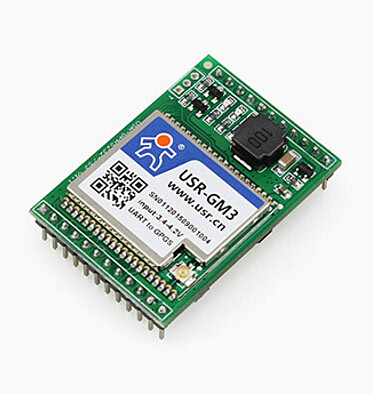

USR-GPRS232-7S3 Serial UART TTL to GPRS/GSM/EDGE Module Httpd Client Supported Highly-Integrated GPRS Module

Highly-integrated GPRS Module,serial gprs module - 1 Piece

TTL to GPRS Bi-directional Transmission

This is a serial uart to gprs module, used for data transparent transmission. USR-GPRS232-7S3 is highly-integrated UART to GSM/GPRS module, Users can easily make communication with it among serial device,cellphone and network device.USR-GPRS232-7S3 is based on USR-GM3 gprs module.Clients can use the product to realize bidirectional transparent transmission from serial port to network through simple AT command.

Product Features of serial gprs module

Support GSM850/900,DCS1800/1900
Support GSM/GPRS/EDGE and 2G/3G/4G card, but don't support 3G/4G network
Support 2 sockets, Support TCP and UDP
4KB cache for each of sockets, user can choose to cache data or not
Support register package and heart beat package
Support setting parameters via SMS message
Support multi work modes: SMS message transmission mode, network transmission mode and HTTPD mode
Support basic and extend AT command sets
Support similar RFC2217
Support flow control: RTS/CTS

Function of serial gprs module

serial gprs module

Application of serial gprs module

More Images of serial gprs module

Network
Standard	GSM / GPRS
Rate	14.4 Kbps ~ 57.6 Kbps
Standard Frequency Range	850/900/1800/1900MHz
GPRS Multi-slot Class	GPRS Class 10
GPRS Terminal Device Class	Class B
GPRS Coding Schemes	CS1 ~ CS4
Max Launch Power	GSM900 class4(2W),DCS1800 class1(1W)
Application	GSM standard AT instruction set / USR extension AT instruction set / data transmission / SMS transmission
Network Protocol	TCP,UDP,DNS,Httpd client
Network Link Count	Share: > https://www.xt-xinte.com/USR-GPRS232-7S3-Serial-UART-TTL-to-GPRS-GSM-EDGE-Module-Httpd-Client-Supported-Highly-Integrated-GPRS-Module-p135888.html?parent_user_id=0&utm_source=sns_share&utm_medium=share_url Copy and share this link on social network or send it to your friends Copy Adding to cart succeed USR-GPRS232-7S3 Serial UART TTL to GPRS/GSM/EDGE Module Httpd Client Supported Highly-Integrated GPRS Module color:red,size:xxl Subtotal: US$ 0 View My Cart Checkout Customer Reviews You May Also Like PCB Dedicated with Pins Hoymk SSR-D3808HK 8A DC... US$ 2.57 Hoymk SSR-10AA 10A 80-280V AC to 24-480V AC SSR... US$ 3.56 10 Piece USR-TCP232-E Serial Server RS232 RS485... US$ 138.75 HLK-PM01 AC-DC 220V to 5V Step-Down Power Suppl... US$ 2.36 2 Piece USR-TCP232-E Serial Server RS232 RS485 ... US$ 28.15 Blauwe PCB Versie ISD1820 Voice Board Module (-... US$ 2.28 Q00226 USR-TCP232-E Serial Server RS232 RS485 T... US$ 14.32 Hoymk SSR-40DA 40A DC-AC SSR 40DA Single Phase ... US$ 4.87 Recently Viewed EMAX Kinyhawk RTF Kit - With Controller & Goggl... US$ 191.42 JMT HLK-LD2450 24GHz Trajectory Sensor ISM Smar... US$ 50.27 USB Header Adapter Riser USB3.0 19Pin/20Pin to ... US$ 2.99 ADF4351/ADF4350 Frequency Source PLL RF Source ... US$ 42.20 3DR Mini OSD MiniOSD Mavlink APM2.6 2.8 PIXHAWK... US$ 9.79 Mingchuan Smart Fngerprint Padlock USB Charge P... US$ 15.80 2pcs 5cm R22SF PCIe 3.0 x4 Male to Female Exten... US$ 30.34 Universal Slide Strip Extension accessories DSL... US$ 6.30 FAQ Center How Can I know all Xt-xinte's Activities How to earn credits to get money Get More credits during 2019 Shipping Service Free Lottery Company Info Feedback Customer Reviews About Us Contact Us News Authorization Certifications Forget Password My Orders Tracking Order My Account Register Newsletter Subscribe To Our Newsletter Copyright © 2006-2050 SHOP INC. All Rights Reserved.
