Q00226 USR-TCP232-E Serial Server RS232 RS485 To Ethernet TTL Level DHCP Web Mod Item NO.: Q00226

Q00226 USR-TCP232-E Serial Server RS232 RS485 To Ethernet TTL Level DHCP Web Mod

Introduction

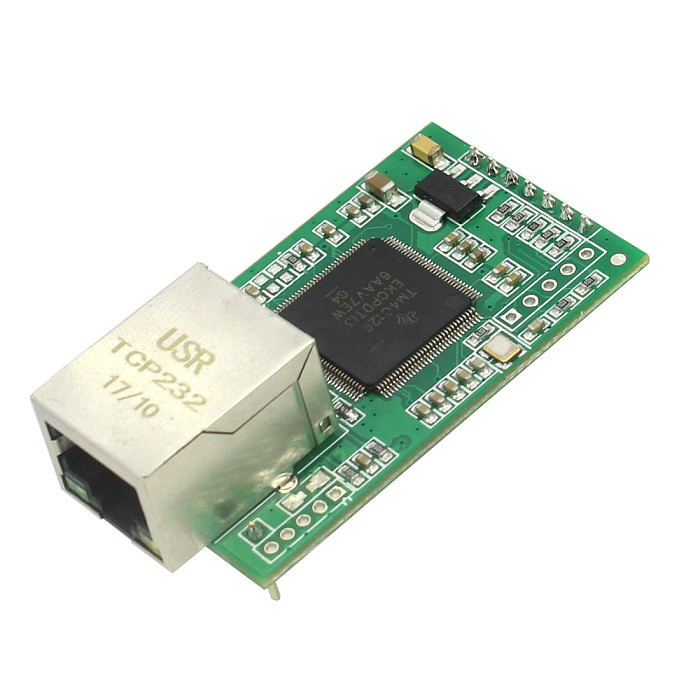

This is a serial TTL to Ethernet module,used for data transparent transmission.USR-TCP232-S can be used to transfer TCP or UDP network packets with TTL interface data, achieving transparent transmission. This equipment has characters of small size, low power consumption, ARM processor, quick speed and high stability.

 Function

• 10/100M auto detect interface;
• support AUTO MDI/MDIX, Can use a crossover cable or parallel cable connection;
• Work mode TCP Server, TCP Client, UDP, UDP Server;
• Working model related parameters can be set via a serial port or network;
• 3.3 V TTL level ;
• Virtual serial port supported;
• Unique heartbeat package mechanism to ensure that the connection is reliable, put an end to connect feign death;
• Under UDP mode, Packet Broadcast is prohibited, with stronger anti-interference ability;
• across the gateway, across switches, routers;
• Can work in LAN, also can work on the Internet (external network);
• 32 bits ARM CPU inside;
• LAN : 10/100Mbps; protect: Built-2KV isolated electromagnetic;
• serial port baud rate: from 300 to 230400bps can be set up, and up to 3 MBPS;
• network protocol: ETHERNET ARP IP UDP TCP ICMP;

Parameter

• Input Voltage : DC 3.3V
• Certificate : CE, FCC
• Size : 20 x 33 mm
• Operating Temp. : -25 ~ 75°C
• Storage Temp. : -40 ~ 85°C, 5 ~ 95% RH(no condensation)
• Interface : TTL UART
• Network Protocol : IP, TCP, UDP, ARP, ICMP
