1PC/2PCS/5PCS HI-LINK HLK-10D2412 24V to 12V 830mA 10W DC-DC 4:1 Wide Voltage Stabilizing Power Supply Module DC Isolated Switching Converter Item NO.: F37267 F37267-2 F37267-5

US$ 5.10

PCS: 1pcs 2pcs 5pcs

Quantity: Stock ( 29999997 )

Product Name	1PC/2PCS/5PCS HI-LINK HLK-10D2412 24V to 12V 830mA 10W DC-DC 4:1 Wide Voltage Stabilizing Power Supply Module DC Isolated Switching Converter
Item NO.	F37267 F37267-2 F37267-5
Weight	0.036 kg = 0.0794 lb = 1.2699 oz
Category	Consumer Electronics > Industrial Module
Brand	HI-LINK
Creation Time	2020-04-17

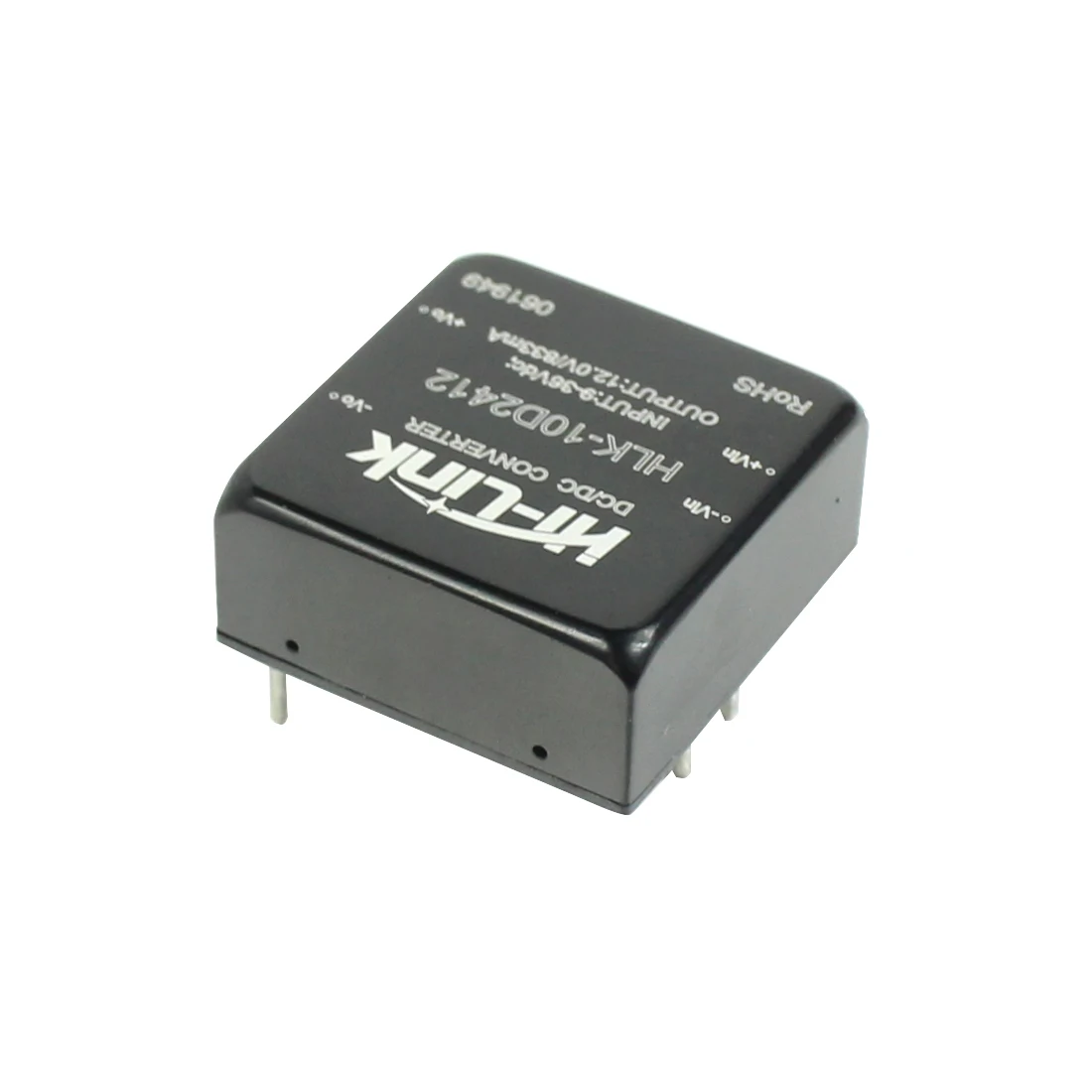

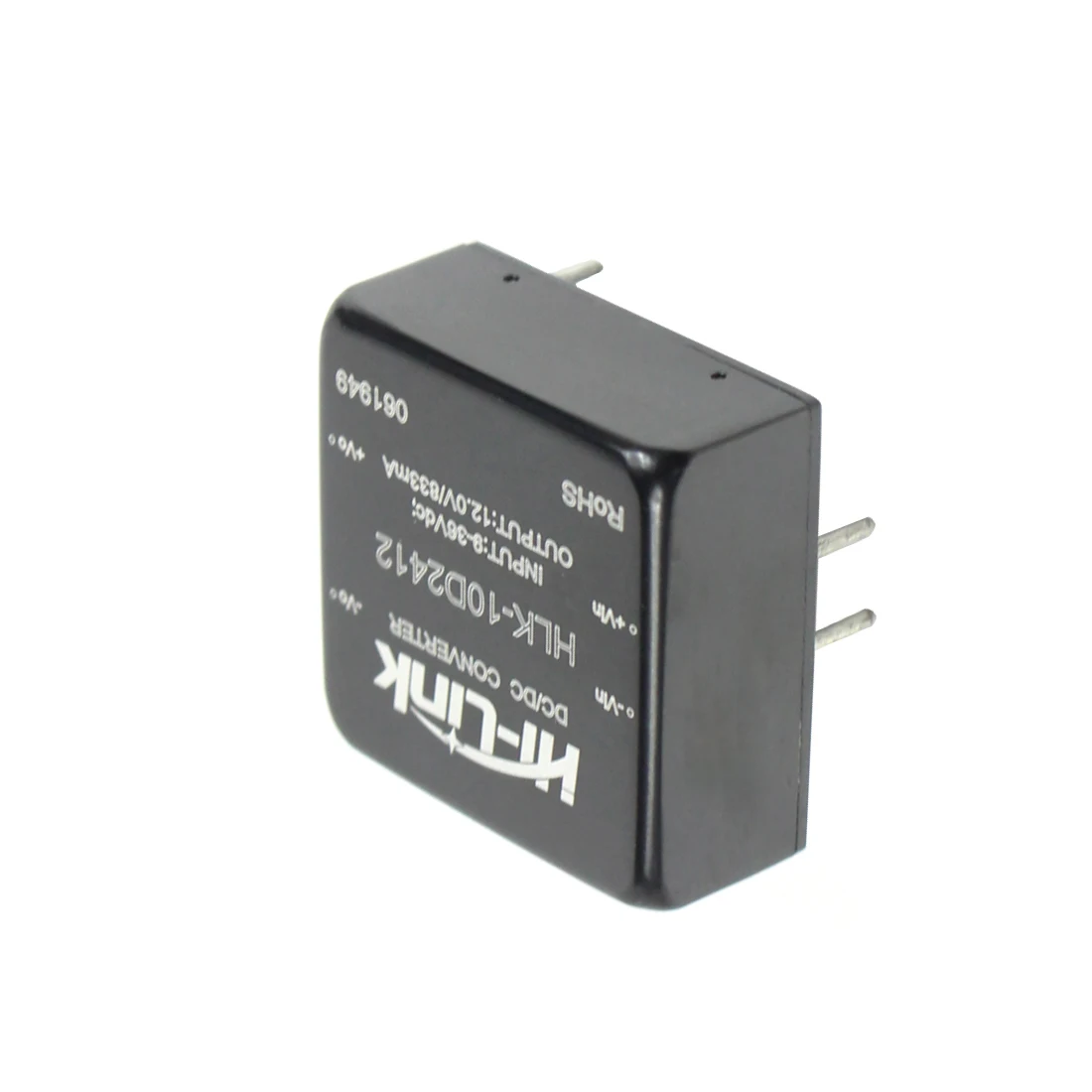

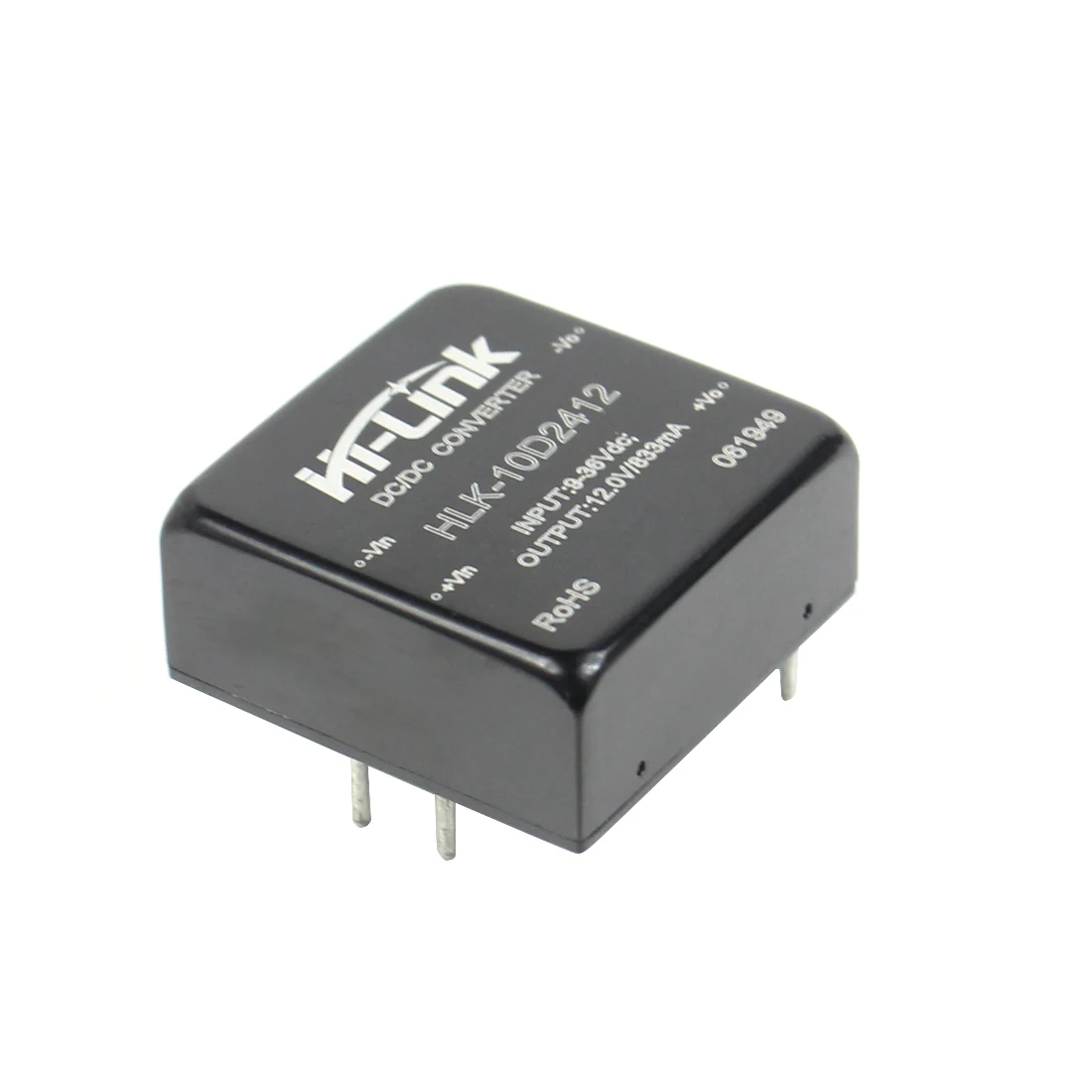

HI-LINK HLK-10D2412 24V to 12V 830mA 10W DC-DC 4:1 Wide Voltage Stabilizing Power Supply Module DC Isolated Switching Converter

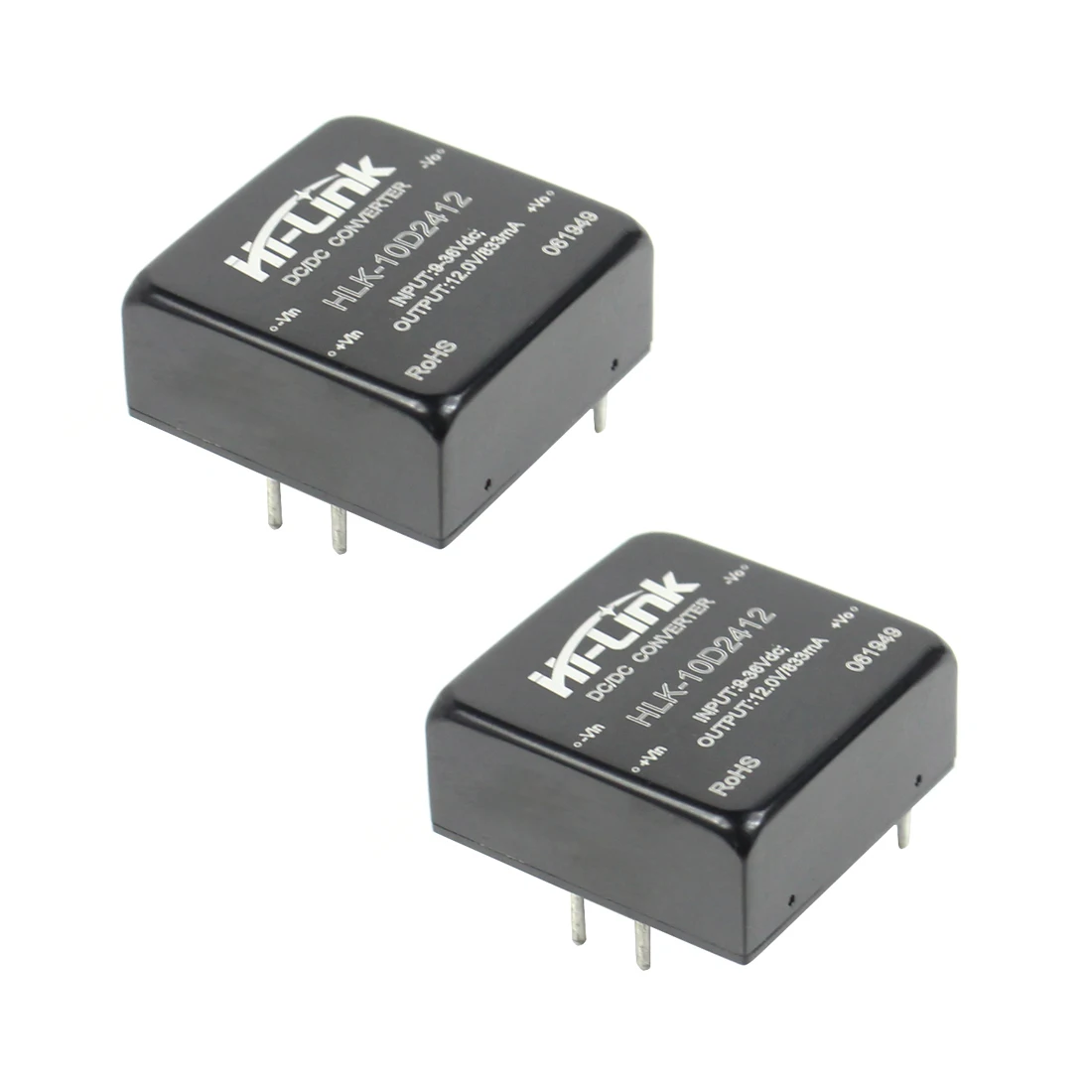

5Pieces/2Pieces/1Piece optional, Please choose the quantity you request. More idea about the item, Please feel free to message us.

10W DC / DC power module A series products output power is 10W, 4: 1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allowed operating temperature -40 ℃ to +85 ℃, with input undervoltage protection, The output overvoltage, overcurrent and short circuit protection functions, bare metal meets CISPR32 / EN55032 CLASS A, widely used in medical, industrial control, power, instrumentation, communication, railway and other fields.

Product performance

1. Ultra wide range input (4: 1), output 10W

2. Conversion efficiency 91% (Typ)

3. Isolation voltage 1500Vdc

4. Ultra-low standby power consumption: 0.036W (typical value)

5. Super fast start: 1mS (typical value)

6. Operating temperature range: -40 ° C ~ + 85 ° C

7. Input undervoltage, output short circuit, overcurrent, overvoltage

8. Metal shell, low output ripple

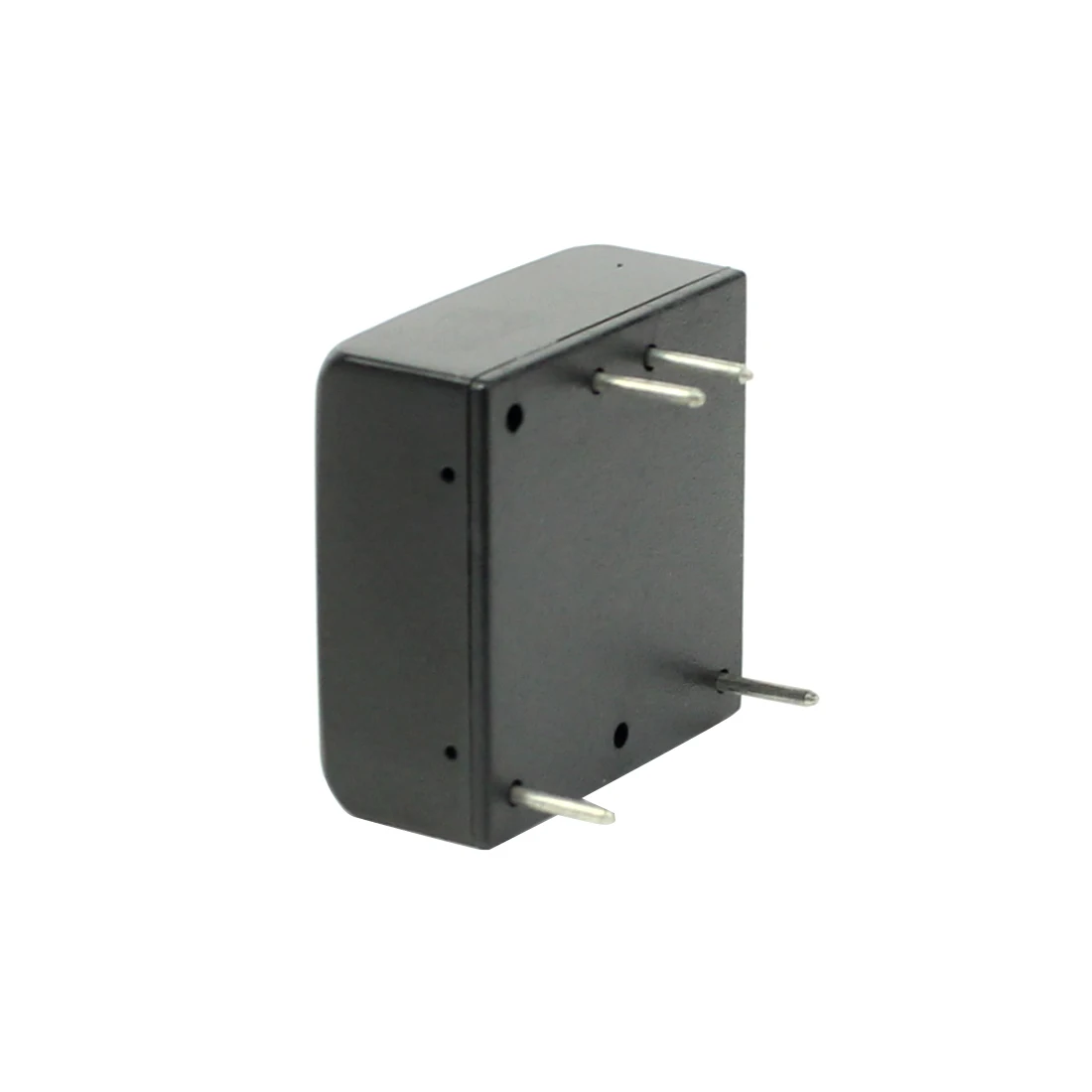

9. International standard pins, PCB board plug-in installation

10. Adopting high-quality environmentally-friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard

11. High reliability, long life design, long continuous working time

12.Size:25.4*25.4*11mm

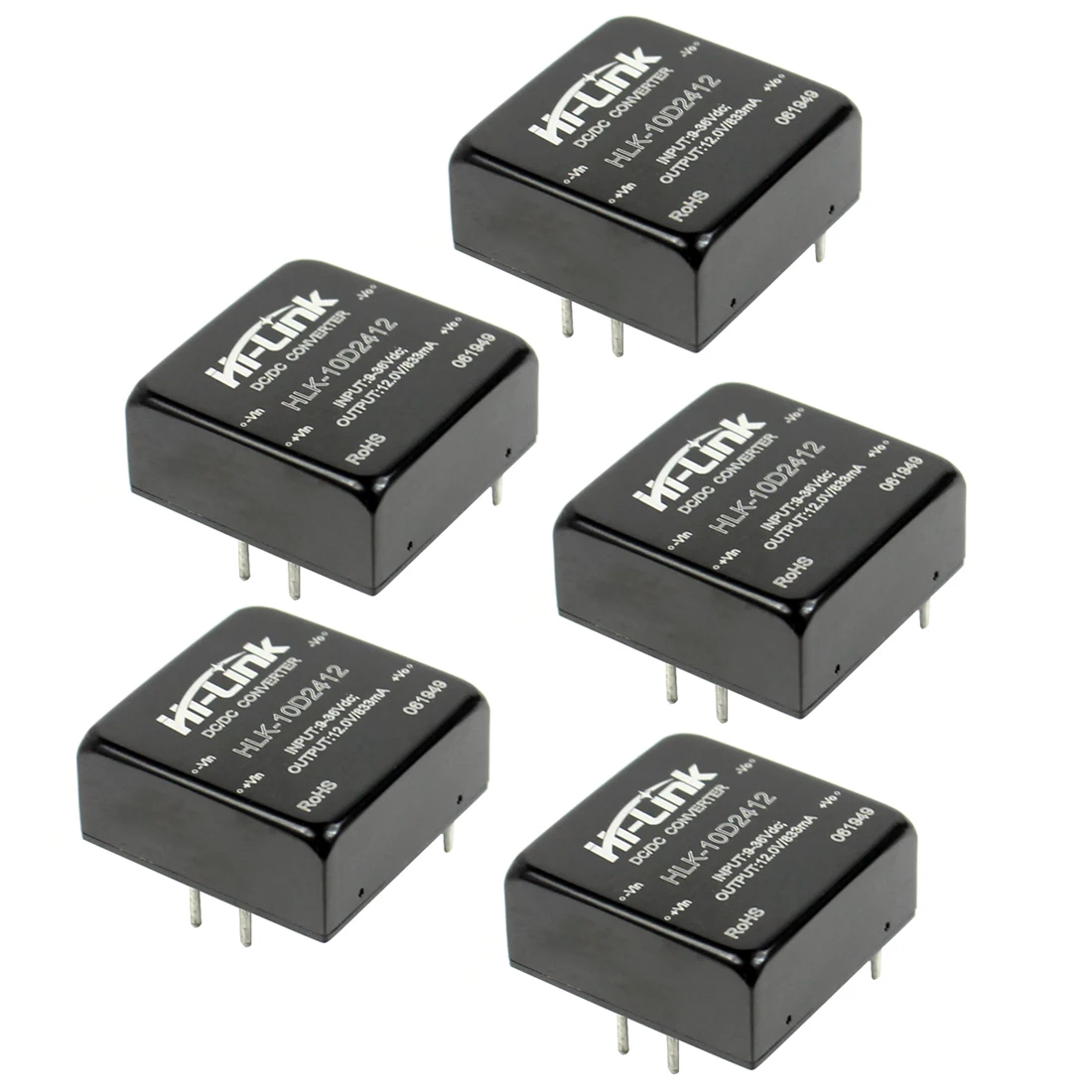

Quantity:5pcs
