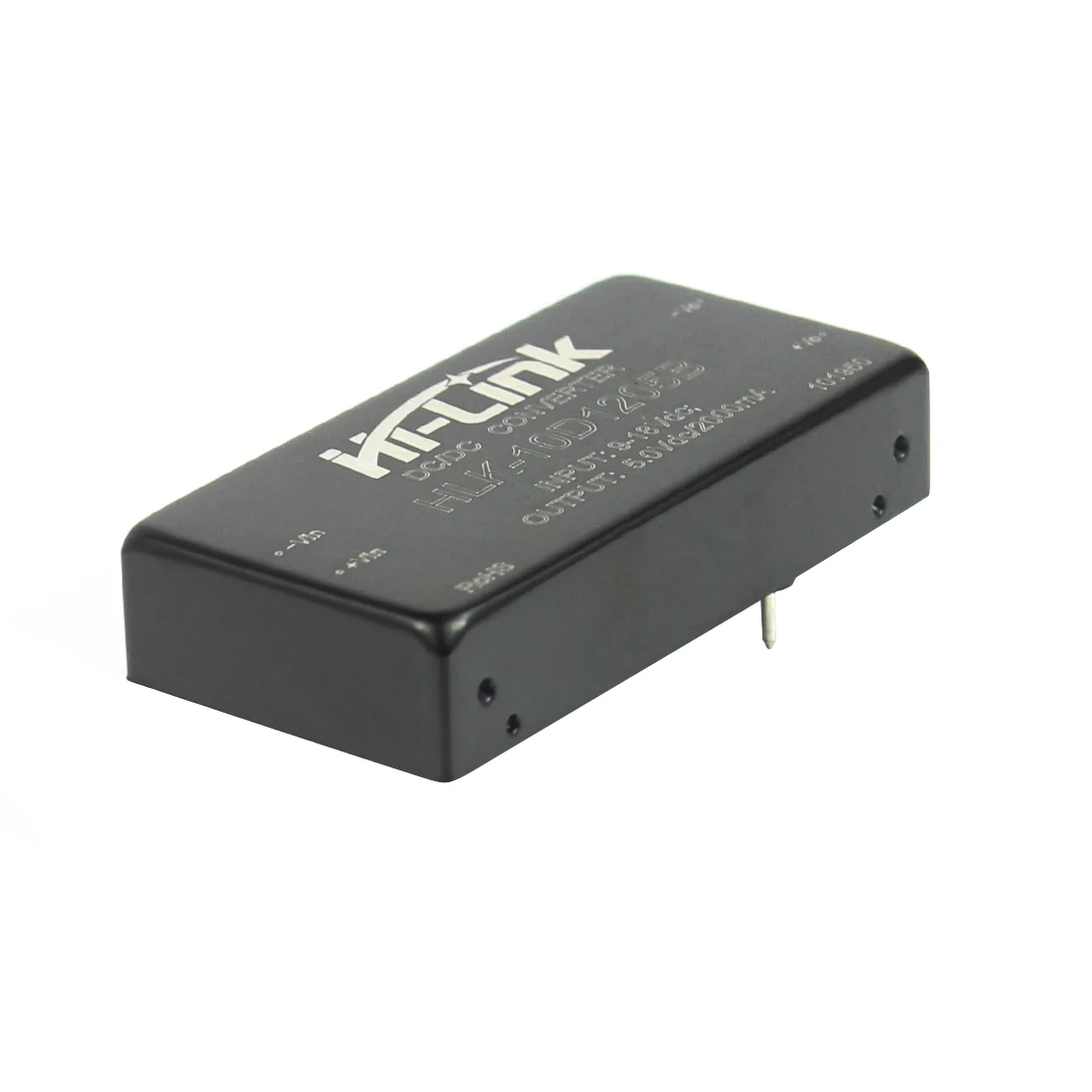

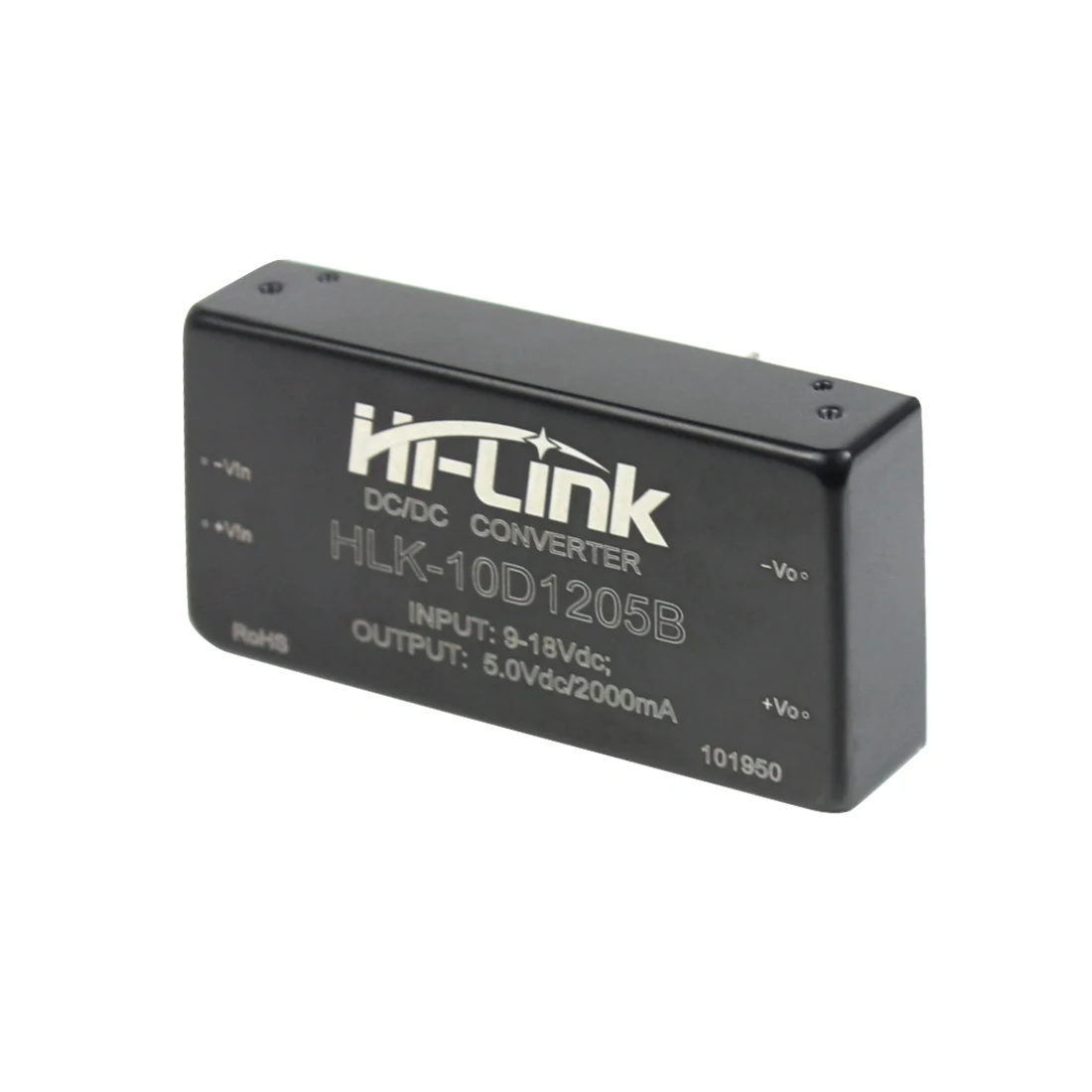

HI-LINK DC DC Converter HLK-10D1205B 5V10W2000mA Transfer 86%Typ 100ms Start Isolated Power Module Replace HDD10-24S05B1 Item NO.: F37270

US$ 5.21

Quantity: Stock ( 9999999 )

Product Name	HI-LINK DC DC Converter HLK-10D1205B 5V10W2000mA Transfer 86%Typ 100ms Start Isolated Power Module Replace HDD10-24S05B1
Item NO.	F37270
Weight	0.045 kg = 0.0992 lb = 1.5873 oz
Category	Consumer Electronics > Industrial Module
Brand	HI-LINK
Creation Time	2020-04-17

Product Name	10W dc to dc power module
Material	Metal
Function	supply power
Start delay time	100ms
Package	PP bag, foam
Rated input voltage	12Vdc
Input voltage range	9-18Vdc
Max input current	≤1.2A
Impulse voltage	≤30Vdc
Starting voltage	9Vdc

Product performance description

1.Ultra wide range input (2: 1), output 10W

2.Conversion efficiency 86%（Typ）

3.Isolation voltage 1500Vdc

4. Ultra-low standby power: 0.3W(Typical value)

5. Super fast startup: 100mS (Typical value)

6. range of working temperature: -40°C~+85°C

7. Output short circuit protection, over current protection

8. Metal case, low output ripple

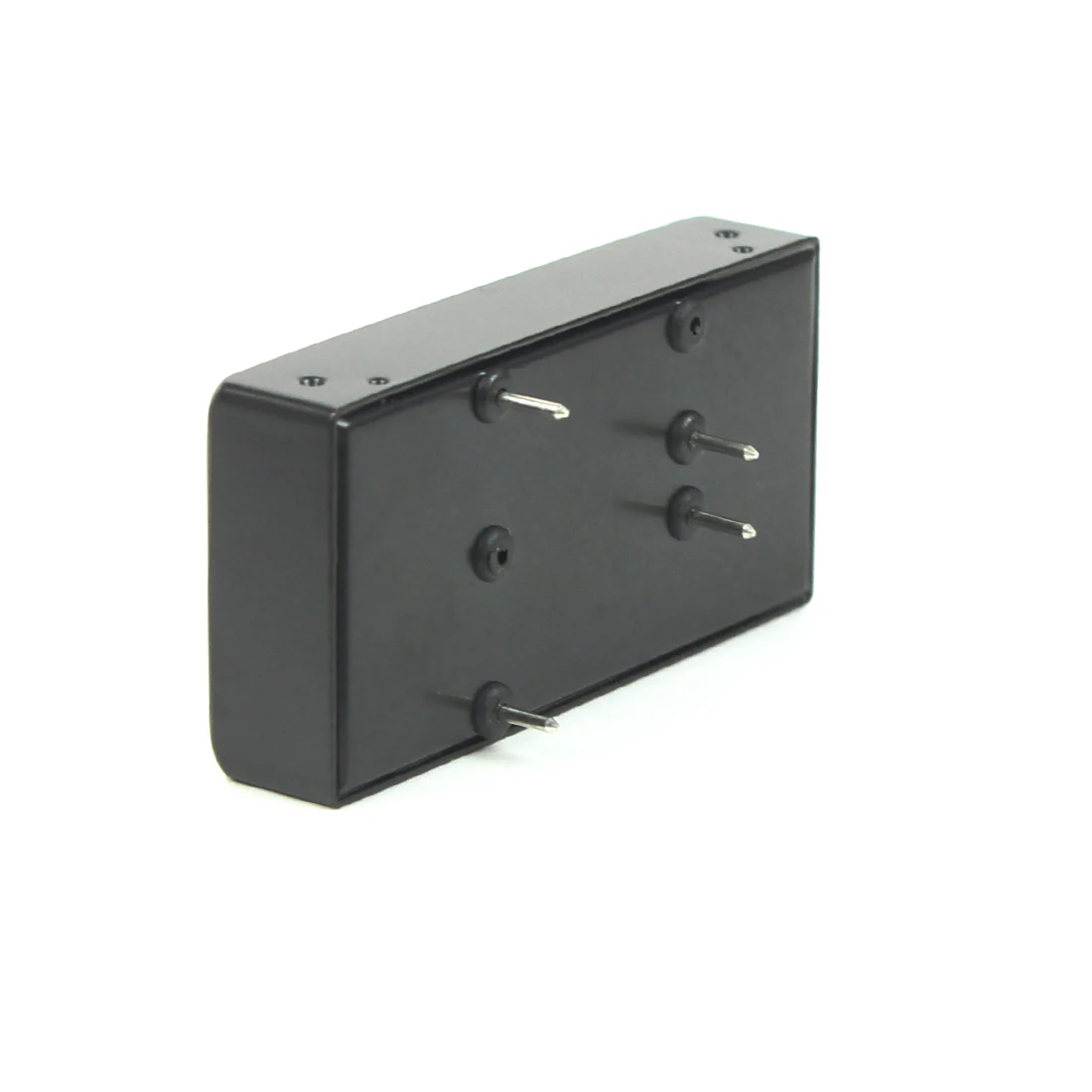

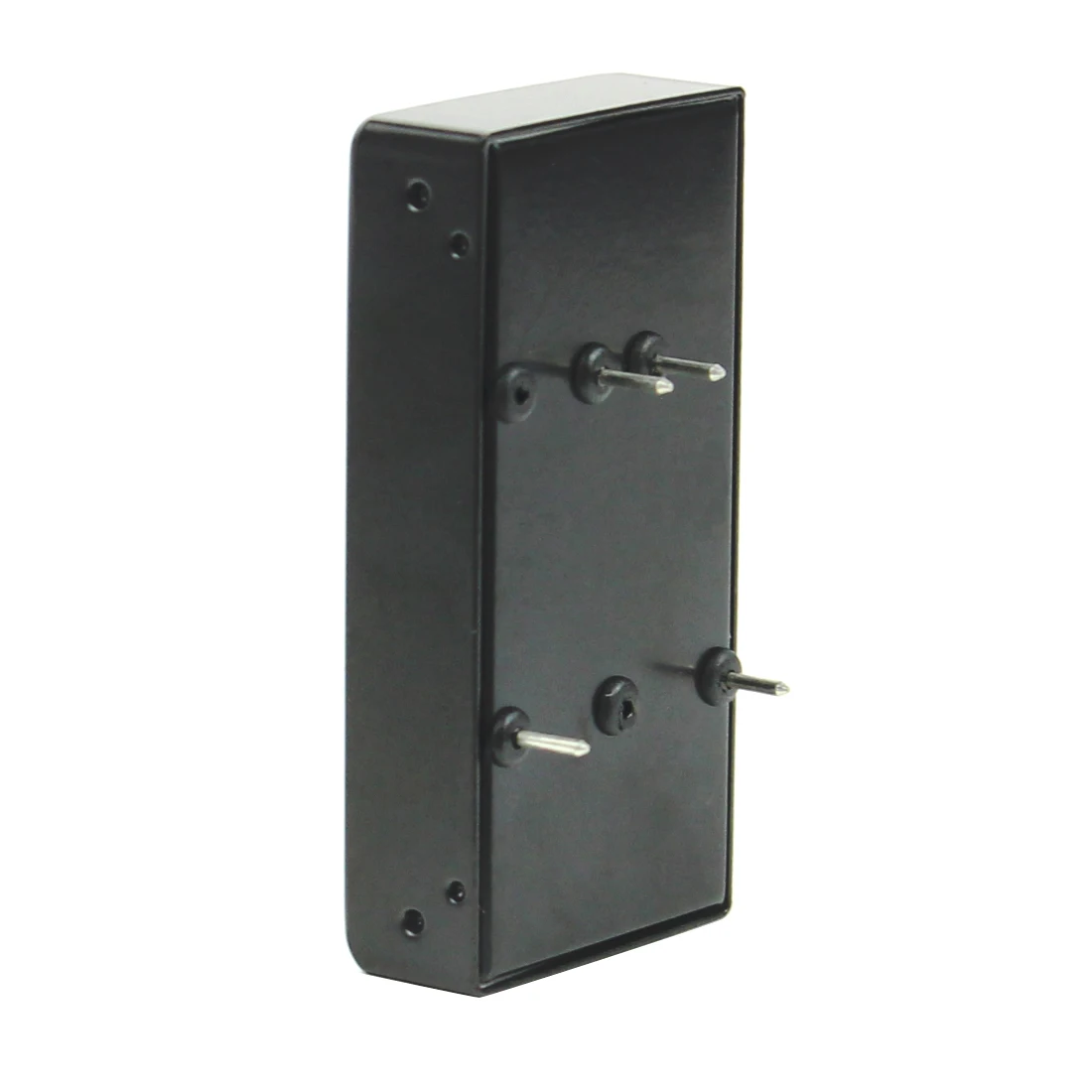

9. International standard pins, PCB board in-line installation

10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65

11.High reliability, long life design, long continuous working time

12.Size:50.8*25.4*11mm
