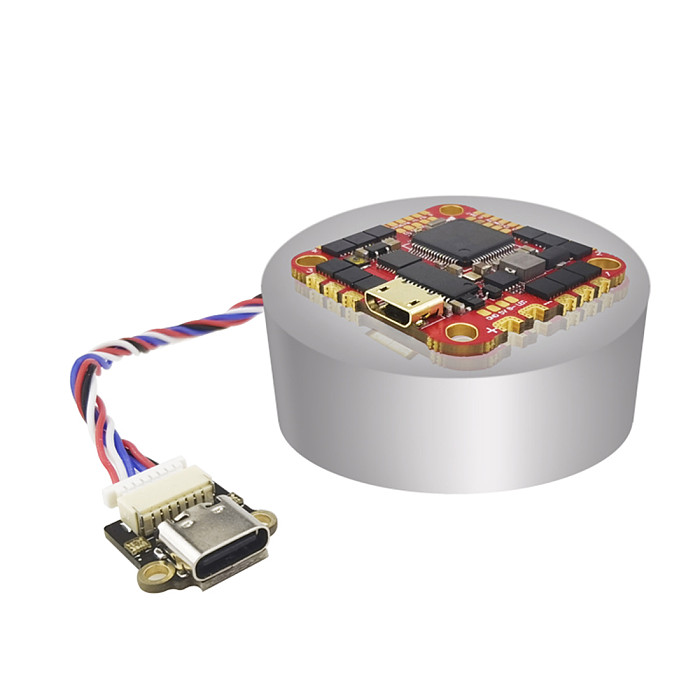

HAKRC F7226 AIO Flight Controller Built-in 40A ESC STM32F722RET6 MPU6000 AT7456E OSD Barometer 5V/3A BEC Dual USB FPV Drone
-
Detail
- Product Name: HAKRC F7226 AIO Flight Controller Built-in 40A ESC STM32F722RET6 MPU6000 AT7456E OSD Barometer 5V/3A BEC Dual USB FPV Drone
- Item NO.: F45645
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: Hakrc
- Creation Time: 2021-11-30
HAKRC F7226 AIO Flight Controller Built-in 40A ESC STM32F722RET6 MPU6000 AT7456E OSD Barometer 5V/3A BEC Dual USB FPV Drone
Features:
1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.
2. MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance.
4. Using high-quality Japanese Murata capacitors, strong filtering performance
Flight control parameters:
CPU: STM32F722RET6
IMU: MPU6000
OSD: AT7456E
Barometer: integrated
BEC: 5V/3A
Uart: 5
LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Flight control firmware version: HAKRC F722D
Receiver: CRSF / Frsky/ Futaba/ Flysky/
TBS Crossfire/ DSMX: DSM2 receiver
Size: 32* 32mm (25.5mm-26.5mm mounting hole)
Packing size: ø63*32mm
Product net weight: 7g
Package weight: 25g
ESC parameters:
Firmware support: BLHELI_ S
Protocol support: PWM, Oneshot125, Oneshot42,
Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo
Continuous current: 40A
Peak current: 50A
Current meter proportional value: 450
Firmware version: BLHELI _S (G- H-30)
Packing list:
Yellow shock-absorbing ball x4, XT30 power cord *1,
Type-C USB small board x 180mm long SH1.0/7P single-head cable * 1,
270uf/35V capacitor * 1
