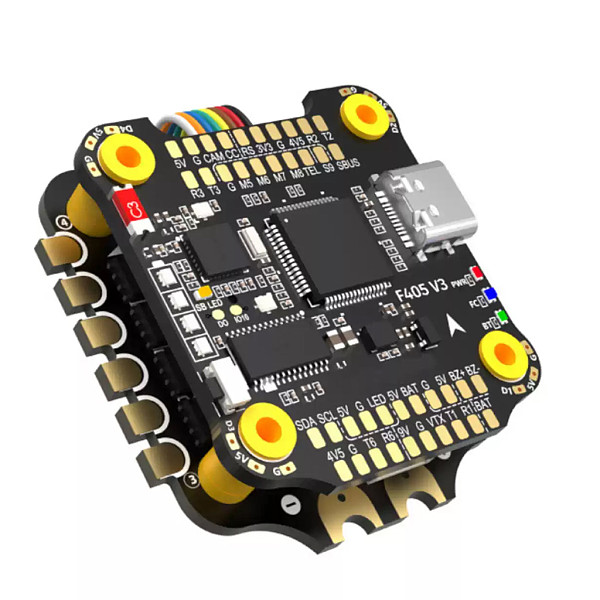

F405 V3 50A Stack FC ECS BMI270 30x30 Flight Controller BLS 50A 4-in-1 ESC 3-6S LiPo For RC FPV Drone

US$ 35.07

Version: F405 V3 50A Stack F405 V3Flightcontrol F405 V3 50A ESC

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: F405 V3 50A Stack FC ECS BMI270 30x30 Flight Controller BLS 50A 4-in-1 ESC 3-6S LiPo For RC FPV Drone
- Item NO.: F53176-D1 D2 D3
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories > Flytower
- Creation Time: 2024-10-18
- F405 V3 50A Stack FC ECS BMI270 30x30 Flight Controller BLS 50A 4-in-1 ESC 3-6S LiPo For RC FPV Drone
F405 V3 50A Stack FC ECS BMI270 30x30 Flight Controller BLS 50A 4-in-1 ESC 3-6S LiPo For RC FPV Drone

Specifications:

Pls note that without compatible-Bluetooth function！

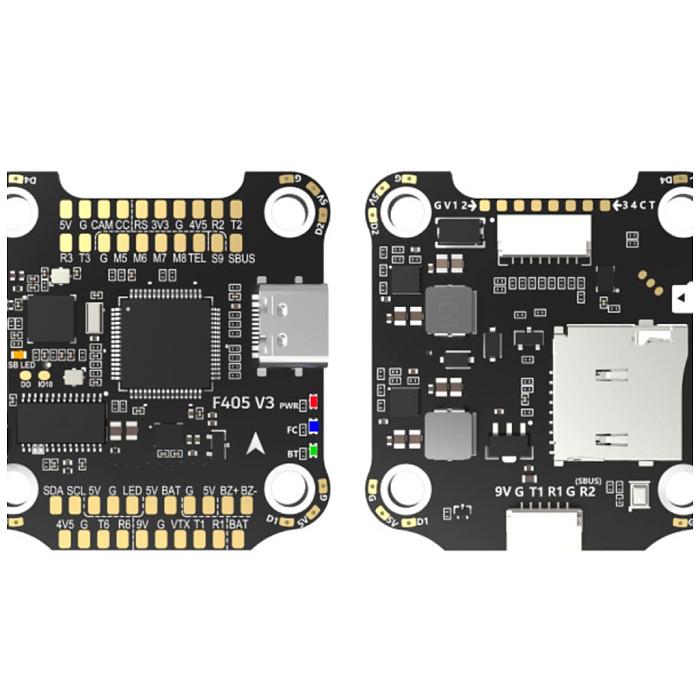

Product name: F405 V3 30x30 flight controller
Master: STM32F405
Gyroscope: BMI270
USB port type: Type-C
Barometer: Built-in
OSD chip: AT7456E
Bluetooth BLE: Yes, used for parameter tuning
DJI Air Unit Connection: 6-pin socket plug-in or wire bonding can be used
Black Box MicroSD Card Slot: Yes. Please use an SDSC/SDHC microSD card of less than 4GB and must be formatted in FAT16/FAT32 format. Do not use SDXC type cards. Note: Betaflight only supports up to 4GB.
Galvanometer Input: Yes. When using a SpeedyBee BLS 50A ESC, set Scale=386 and Offset=0
BetaFlight Camera Assistant Pad: Yes (Front CC Pad)
Input voltage: 3S-6S lithium battery (via the 8pin connector on the back or the G and BAT pins/pads in the pads)
5V BEC output: 9 sets of 5V outputs (4 +5V pads + 1 BZ+ buzzer pad on the front, 1 +5V pad in each of the 4 corners for external LED lights), the total current output is 2mA
9V BEC outputs: 2 x 9V outputs (1 x +9V pad on the front and 1 x +9V output in the rear socket) for a total current of 2A
3.3V BEC output: 1 set (1 x 3.3V pad on the front) The maximum current is 500mA
4.5V BEC output: 2 groups (2 4.5V pads on the front), maximum current 1A
ESC signal: M1-M4 on the back and M5-M8 on the front
UART serial port: 5 sets of serial ports (UART1, UART2, UART3, UART4< fixed for ESC Telemetry telemetry >)
ESC telemetry input: R4(UART4)·
I2C: Yes, front SDA, SCL pads. Used for magnetometers, sonar, etc
Traditional BetaflightLED Pad: Yes, Front Bottom 5V, G, LED Pad. For BF control WS2812 LED light
Buzzer Pad: Yes. BZ+, BZ-pad access to 5V passive buzzer support.
BOOT button: Press and hold the BOOT button to power on, you can enter DFU mode, which is used to save bricks and brush firmware; The BOOT key is also used to control the LED strips attached to the D1-D4 pads on the four corners of the PCB in the power-on standby state. By default, short press the BOOT button to cycle through the LED display status; Press and hold the BOOT button to switch the LED control mode: SpeedyBee LED or BFLED. In BFLED mode, these LED strips will be controlled by the BF firmware.
RSSI pads: Yes (marked as RS)
SmartPort: Yes. Tx of any set of serial ports can be used.
Supported Flight Controller Firmware Types: BetaFlight (factory by default), EMUFlight, INAV
Firmware Target Name: SPEEDYBEEF405V3
Mounting hole: 30.5x30.5mm (4mm hole diameter)
Dimensions: 41.6 (L) × 39.4 (W) x 7.8 (H) mm
Weight: 9.6g

Product name: BLS 50A 30x30 4-in-1 ESC
Firmware: BLHeli-SJH-50
Wireless Parameter Tuning: Yes. Connect to SpeedyBeeApp for full-featured parameter tuning
Download address of the computer ground station: https://github.com/bitdump/BLHeli/releases
Continuous current: 50A*4
Max Current: 55A (5 seconds)
TVS Protective Diode: Yes
External capacitor: 1500uF high-frequency low-resistance capacitor (included in the package)
ESC/Motor Protocol: DSHOT300/600 (PWM can be wetted, but it needs to be adjusted when flashing bluejay firmware)
Input voltage: 3-6S lithium-ion battery
Output voltage: VBAT
Galvanometer: Yes (Scale=386, Offset=0)
Mounting hole: 30.5×30.5mm (4mm hole diameter)
Size: 45.6 (length) x 44 (width) * 6.1mm (height)
Weight: 13.8g
