Copy| Product Name | Happymodel X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC And 400mw OPENVTX |
| Item NO. | F53701 |
| Weight | 0.035 kg = 0.0772 lb = 1.2346 oz |
| Category | DIY RC Drone Accessories > Flight Control |
| Brand | Happymodel |
| Creation Time | 2024-12-21 |

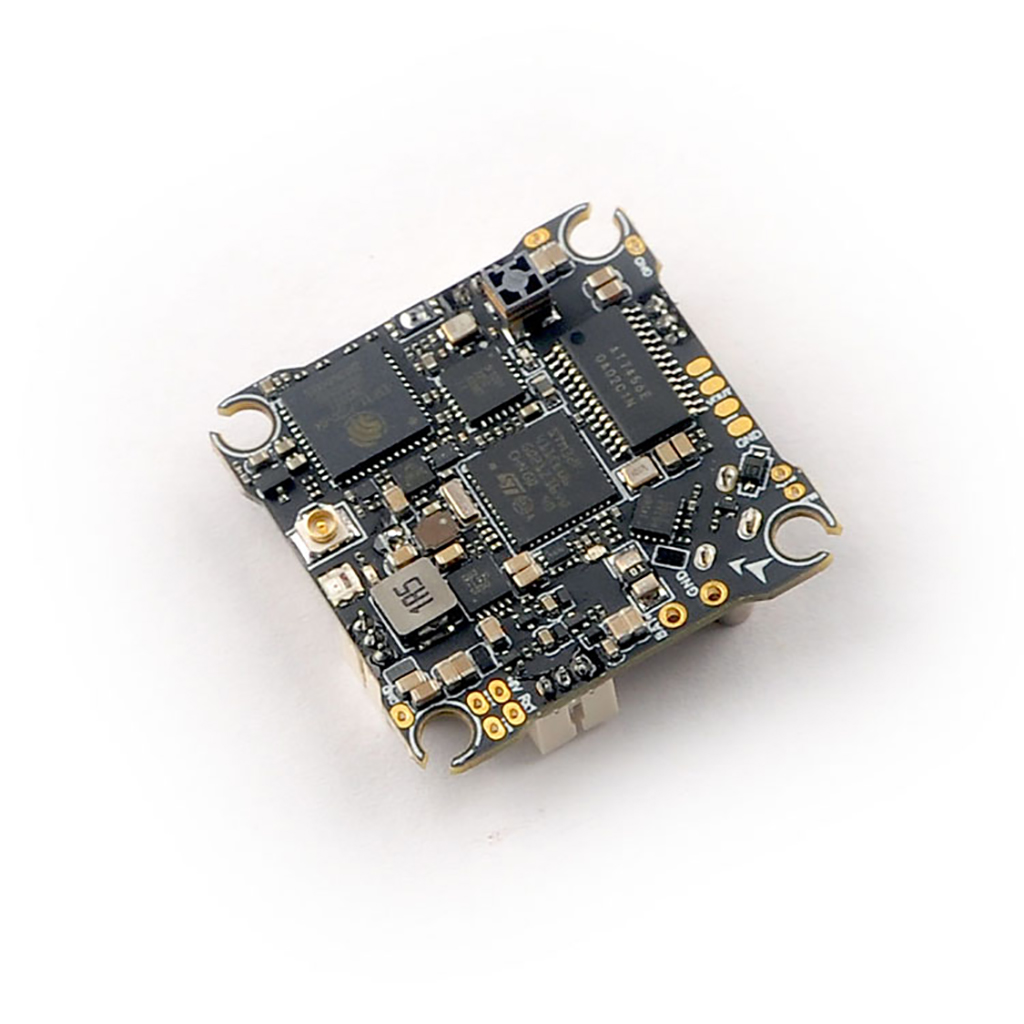

Happymodel X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC And 400mw OPENVTX
Specifications：
Brand Name： Happymodel
Item Name： X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
Betaflight firmware target：
betaflight 4.4.0 STM32F411
VTX antenna：U.FL
Weight： 5.1g
Size：30mm*30mm*8mm
Flight controller X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller
MCU：STM32F411CEU6(100MHZ， 512K FLASH)，ESP32-PICO-D4
Sensor：ICM42688P(SPI connection)
Mount hole size： 25.5mm*25.5mm
Power supply： 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw(MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor ， voltage meter scale 110
Built-in current meter sensor ， current meter scale 470
Onboard 4in1 ESC Power supply： 1-2S LiPo/LiPo HV
Current： 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware： Bluejay v0.19.2
Default protocol： DSHOT300
Recommend ESC Startup power value to min1100/max1200
Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option： 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version： V3.0
RF Frequency： 2.4GHz
Antenna：SMD antenna
Telemetry output Power： <12dBm
Receiver protocol： Serial based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target： Generic ESP32 2.4Ghz Rx and VTx
Onboard 5.8g OPENVTX Firmware version： OPENVTX
MSPVTX
PIT Mode support
Channels：40ch
Transmitting Power：0/RCE/25mw/100mw/400mw
Power supply： DC 5V
Current(5v)：<650ma (400mw)
Antenna connector： U.FL
