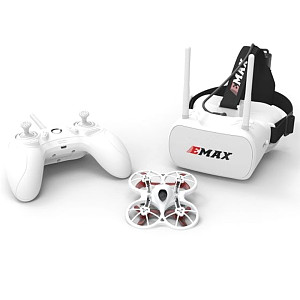

EMAX Kinyhawk RTF Kit - With Controller & Goggles 75mm Indoor racing drone
-
Detail
- Product Name: EMAX Kinyhawk RTF Kit - With Controller & Goggles 75mm Indoor racing drone
- Item NO.: F43804
- Weight: 1.58 kg = 3.4833 lb = 55.7329 oz
- Category: RC Toy Drone > EMAX
- Brand: Emax
- Creation Time: 2021-05-18
- EMAX Kinyhawk RTF Kit - With Controller & Goggles 75mm Indoor racing drone
EMAX Kinyhawk RTF Kit - With Controller & Goggles 75mm Indoor racing drone
Key Features:75mm Indoor racing drone
08025 brushless motor with durable ball bearing for increase flight and low maintenance
Durable polypropylene plastic frame with propeller guards
Motor beeper function. Find your tinyhawk after a crash
Speeds up to 56kph
Up to 4 minutes flight time on single battery
Fast F4 Processor for smooth stable flight characteristics
MPU6000 gyro for vibration free operations
Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces
25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles
Smart Audio function to change VTX channel via your transmitter
OSD settings control to customize flight feel
Pre-tuned from factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel
Plug in type motors for easy maintenance
1s High Voltage (HV) 450mah lipo included
40 Channel goggles for FPV (First Person View) be like a bird, or pilot.
6 Channel gamepad size controller. Feel comfortable, like it playing a video game
Everything included in one package, no need for extra to get in the air out of the box.
Frsky compatible D8 receiver built in to FC
Custom carbon fiber themed carrying case
Tinyhawk Specifications:Size: 75mm motor to motor L 110mm x W 95mm x H 39mm
Dry Weight: 29g
All Up Weight: 42g with 450mah 1s Battery
Frame Material: Polypropylene
Propeller Properties:
Diameter: 40mm
Blades: 3
Pitch: 23mm
Weight: 0.5 g
Motor Properties;
Stator: 8mm x 2.5mm (08025)
Kv: 15000kv
Weight: 2.5g
Bearing Size: Φ1.5*Φ4*2mm
Shaft Diameter: Φ1.5mm
Propeller Mount: Press Fit Over Bell
Main PCB:
Flight Controller: F4（MATEKF411 firmware）
ESCs: 4in1 3A
Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)
Battery Connector: JST-PH2
Camera and VTX:
VTX Power: 25mw
Channels: 37CH
Camera Properties: 600TVL CMOS
Smart Audio
Battery:
Voltage: 1s 4.35v HV
Capacity: 450 mAh
Discharge rating: 80c/160c
EMAX Transporter Goggles Specifications:
Maximum appearance size 140×153×90(mm)
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery
EMAX E6 Transmitter Specifications:Maximum appearance size 181×213×80(mm)
Weight (without battery) 211g
Number of channels 6 Channels
Transmission frequency 2.4GHz ISM Band（2400MHz~2483.5MHz）
Output Power 22dbm
Modulation GFSK
Battery 1 cell 18650 lipo battery
Included in package:
Light weight soft carry case, with carbon fiber design
Tiny Hawk indoor flying drone
USB High Voltage capable 4 port USB Charger
1s High Voltage (HV) 450mah lipo battery.
FPV Goggle: EMAX Transporter 40 channel
EMAX E6 Transmitter: 6 Channel
USB Cable for charging goggle, radio
Parts Bag
Phillips screwdriver
2x 18650 Battery already pre-installed
1 Set spare AVAN Tinyhawk 3 blade propellers.
