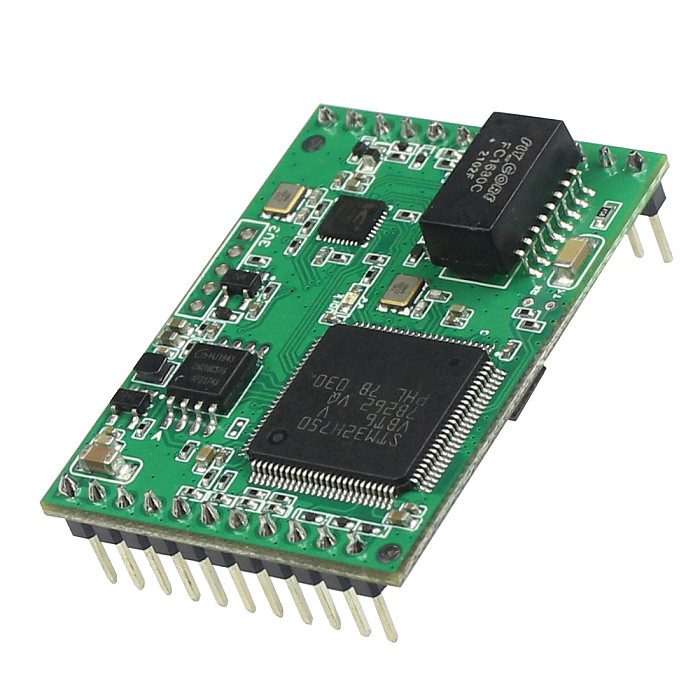

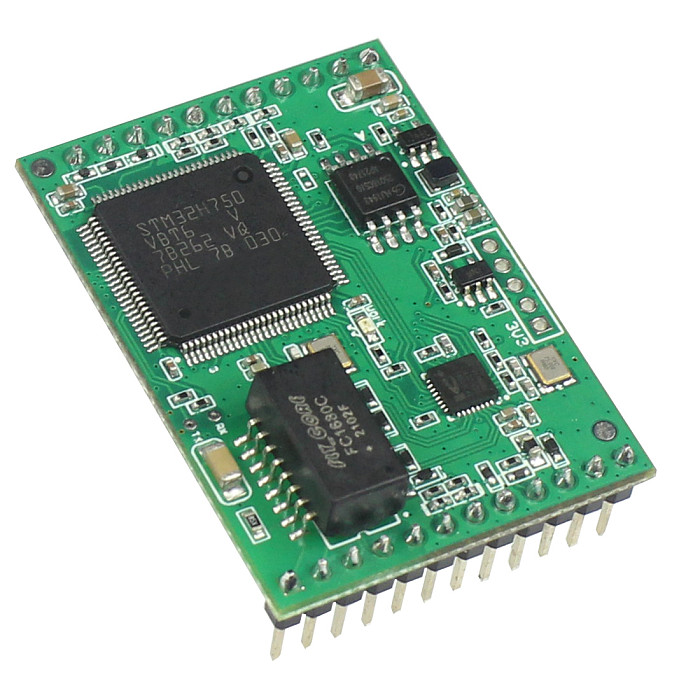

USR-TCP232-ED2 Triple Serial Device Server, UART TTL to Ethernet/TCPIP
-
Detail
- Product Name: USR-TCP232-ED2 Triple Serial Device Server, UART TTL to Ethernet/TCPIP
- Item NO.: Q14030
- Weight: 0.033 kg = 0.0728 lb = 1.1640 oz
- Category: Consumer Electronics > Industrial Module
- Brand: USRIOT
- Creation Time: 2017-07-25
USR-TCP232-ED2 Triple Serial Device Server, UART TTL to Ethernet/TCPIP Module Converter, Support D2D Forwarding
Function features：
New Cortex-M4 kernel, industrial working temperature range(-40~85℃), elaborate optimization TCPIP protocol stack, stable and reliable.
selectable UART port, Different port can be used together, work independently, distinguish the connected serial port via port number.
Auto-MIDX function, discretionarily connect cross-over or direct network cable, automatic switching.
Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client,websocket, various of ethernet protocols.
Support virtual serial port, provide corresponding software.
Serial port highest baud rate from 300bps to 1024000bps(COM0 only max 256000bps).
wide voltage input, more applications.
Support DHCP, automatically access IP, can inquire the facility within network through the UDP broadcast protocol(using software USR-TCP232-E45 Setup).
Supply the protocol for VIP customers
Provide PC TCP/IP SOCKET programming example, VB, C++, Delphi, Android, IOS.
A built-in web page, also parameter setting via web, can customize web pages for users.
Can also set via UDP broadcast, provide the set up protocol.
Reload button, a key restore default Settings.
RJ45 status indicator light, RJ45 interface built-in isolation transformer, 2 KV isolation.
The global unique MAC address bought from IEEE, the user can define MAC address (please state when you make order).
Support upgrade firmware via network.
Support visit IP and domain name at the same time
Support up to 8 link from client when act as TCP Server, same data will be send to all client.
Can modify http server port from default port 80 for module built-in http server.
Support Keepalive, detect a dead link quickly and make sure the connection more stable.
Product Characters：
Mechanical dimesion: (L×W×H): 44.45×31.75×15.4(mm) including RJ45 and connector;
PCB dimension(L×W): 44.45×31.75(mm);
5V/3.3V power input,choose 1 input
3 * serial(3 * TTL)
TTL serial port, support hardware flow control
Operating Temperature: 0~75 °C (business version) -40-85°C (industry version)
Storage temperature: -40~85 °C
