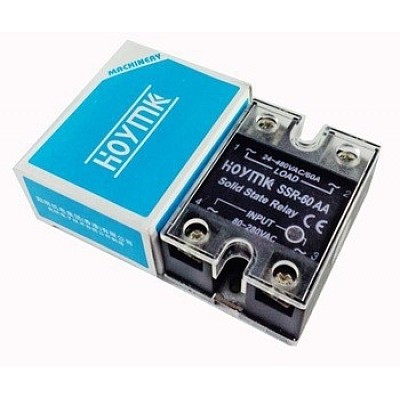

Hoymk SSR-60AA 60A 80-280V AC to 24-480V AC SSR 60AA Single Phase Solid State Relay
Product Features:
1, TRIAC Output,Zero Voltage Opens, Zero Current Turnoff;
2, Optical Isolation between the Input Loop and Output Loop;
3, Dielectric Strength 2500V between Input-Output;
4, 100% Load Current Aging Test.
This is Solid State Relay SSR-60AA 60A AC-AC
Control: AC Control AC
Load Voltage :24-480VAC
Control Voltage 80-280VAC
Control Current AC:12mA
-State Leakage Current:≤4mA≤2mA
-State Pressure 1.5VAC
Off Time ≤ 10mS
Dielectric Withstand Voltage :2500VAC
Insulation Resistance: 500M ω/500VDC
Working Temperature:-30 °-+ 75 °
Mounting:Bolts
Indicating:LED
Specification:
Original Box: Yes
Color: As Picture
Weight:132g
Packing Content:
1 x Solid State Relay SSR-60AA
Safety Precautions :
1 , Must be Used when the load current
is higher than 10A is mounted on a heat sink or metal base plate with
the corresponding cooling effect , and coated with thermal grease
between the SSR Heat bottom mounting surface , 40A above plus fan forced
cooling or water .
2 , Using the AC inductive load , high
transient voltages and inrush current is applied to the output, which
may cause the solid state relay conduction or damaged, usually require
access at the output voltage with a specific clamping voltage control
devices, such as double Zener diode or varistor (MOV). Rated voltage
varistor is recommended to take a 1.6-1.9 times ;
3, The control close to the minimum
load current is small current load shall load a dummy load resistor in
parallel to reduce the leakage current compared to the output of the
load high residual voltage.
4, In order to avoid the temperature
exceeds the allowable value of solid-state relays , considering the
cooling effect of the application should be designed and installed
position , only when two or more solid state relays mounted side by side
, you should leave appropriate spacing.
5 , The parallel between the output
may not be more than just the use of solid-state relays , in an attempt
to increase the output current. However, output can be used in tandem in
order to apply a higher operating voltage.
6, When using more than just a solid
state relay when shared control power inputs that can be used in tandem
can also be used in parallel .
7 , Capacitive load caution this piece , please select the capacitive load dedicated solid state relays.
