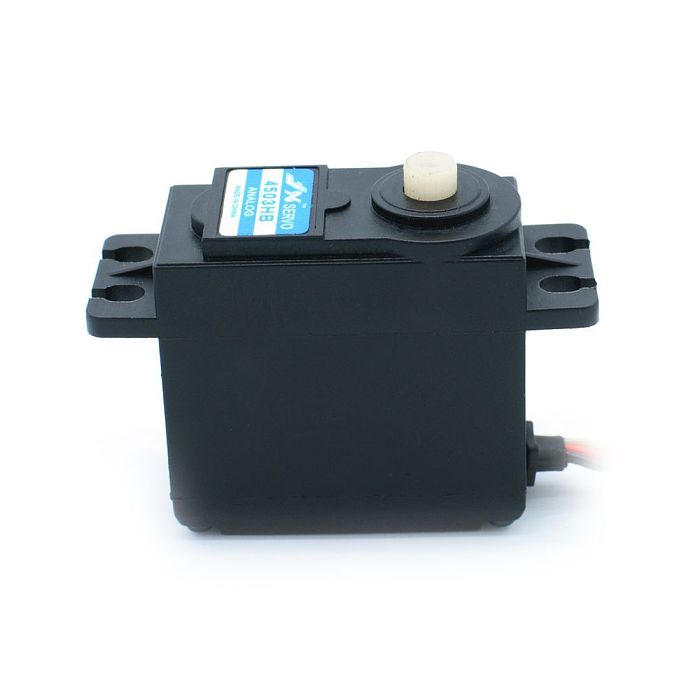

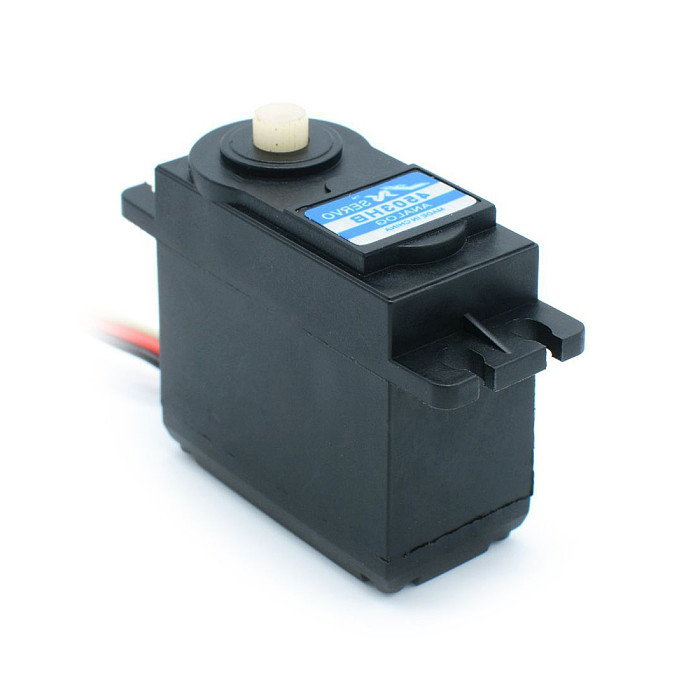

JX Servo PS-4503HB Plastic Gear 45g/3kg 120°50Hz Standard Servo with 25T Metal Servo Arm for DIY RC Airplane Robot Models

JX Servo PS-4503HB Plastic Gear 45g/3kg 120°50Hz Standard Servo with 25T Metal Servo Arm for DIY RC Airplane Robot Models Item NO.: F39837-A F39837-B

Write a Review
US$ 4.32
US$ 4.70 Save US$ 0.38 (8% Off)
Color
Black Red
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JX Servo PS-4503HB Plastic Gear 45g/3kg 120°50Hz Standard Servo with 25T Metal Servo Arm for DIY RC Airplane Robot Models
Item NO. F39837-A F39837-B
Weight 0.065 kg = 0.1433 lb = 2.2928 oz
Category DIY RC Drone Accessories > Servo
Brand JX
Creation Time 2020-12-24

JX Servo PS-4503HB Plastic Gear 45g/3kg 120°50Hz Standard Servo with FEICHAO 25T Metal Servo Arm for DIY RC Airplane Robot Models


Features:

High performance iron core motor
45g/3.95kg torque simulation servo
Plastic gear standard analog steering gear

Brand: JX
Model: PS-4503HB
Product name: analog core plastic gear servo
Working voltage: DC4.8-6.0v
Working temperature: -20to+60?
Dead setting: 7?s
Maximum pulse width: 900-2100?s subtle
Maximum angle: 120°
Working frequency: 50Hz
Motor or motor: Core Motor iron core motor
Operating speed (4.8v): 0.15sec/60°
Operating speed (6.0v): 0.12sec/60°
Torque (4.8v): 3.25kg/cm(45.13oz/in)
Torque (6.0v): 3.95kg/cm(54.58oz/in)
Size: 40.5mm*20.4mm*38mm
Weight: 45.5g (1.60oz)
Cable length: JR 265MM (10.43inch)
Gear material: plastic Gear
Applicable to: RC car models, fixed-wing aircraft, helicopters, small robots, manipulators and other models


FEICHAO 25T Metal RC Servo Arm Horn for RC Car Crawler Boat Airplane Robot MG995 MG946R MG996R MG945 S3003 Servo

Fits for Standard Servo MG995 MG946R MG996R MG945 S3003 25T.
Single Sided Arm with 3 predrilled starter holes.
Hard aluminum construction for precision and durability.
Material : Aluminum
Overall length: about 30mm
Thickness: 2mm.

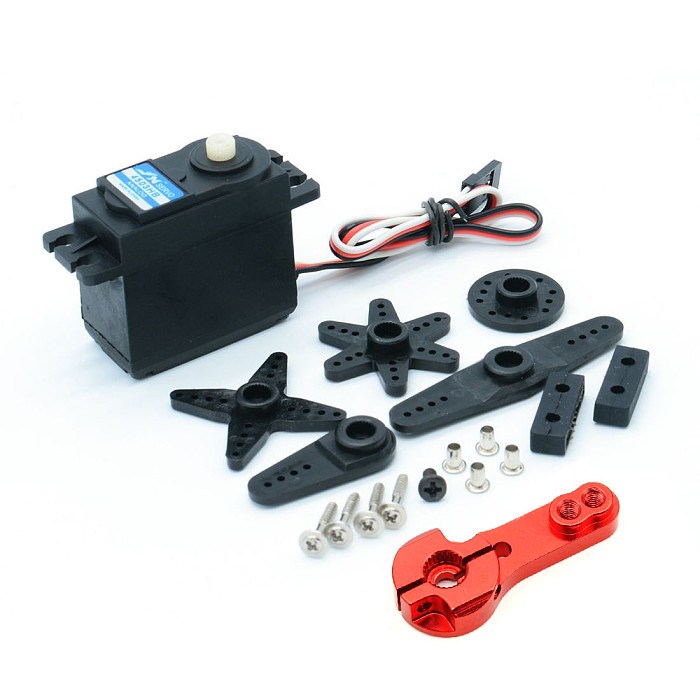

Package contains:
1* JX Servo
1* FEICHAO 25T Metal Servo Arm
1* servo spare parts set
