XT-XINTE 5A 75W LM2596 DC-DC Adjustable Step-down Voltage Regulator Power Module with Voltmeter Display
-
Detail
- Product Name: XT-XINTE 5A 75W LM2596 DC-DC Adjustable Step-down Voltage Regulator Power Module with Voltmeter Display
- Item NO.: F34530
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: Consumer Electronics > Industrial Module
- Brand: XT-XINTE
- Creation Time: 2019-12-06
XT-XINTE 5A 75W LM2596 DC-DC Adjustable Step-down Voltage Regulator Power Module with Voltmeter Display
product description:
Brand: XT-XINTE
color: blue
Size: 6.1 * 3.4 * 12cm
Weight: 20g
Input voltage: 2.5V ~ 40V
Output voltage: 1.25V ~ 35V (adjustable)
Output current: 3A (maximum)
Conversion efficiency: 92% (highest)
Output ripple: <30mV
Switching frequency: 150KHz
Working temperature: -45 ℃ ~ + 85 ℃
Features:

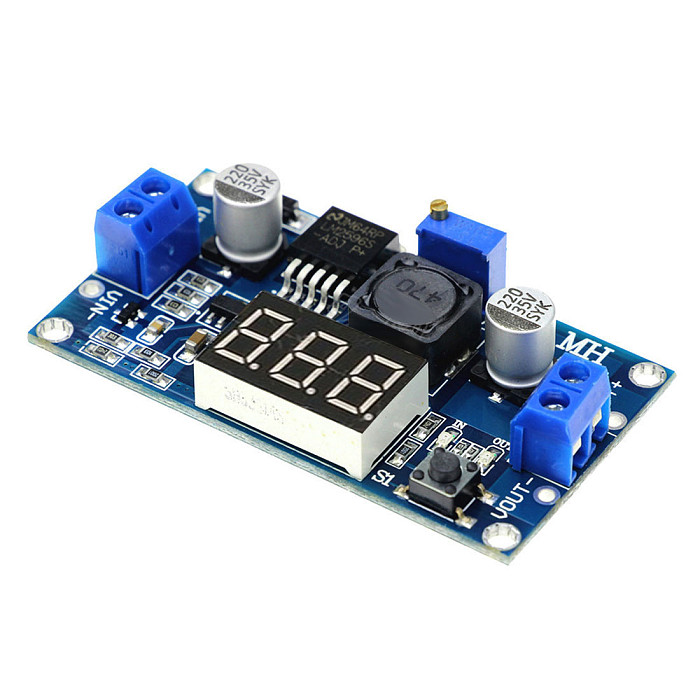

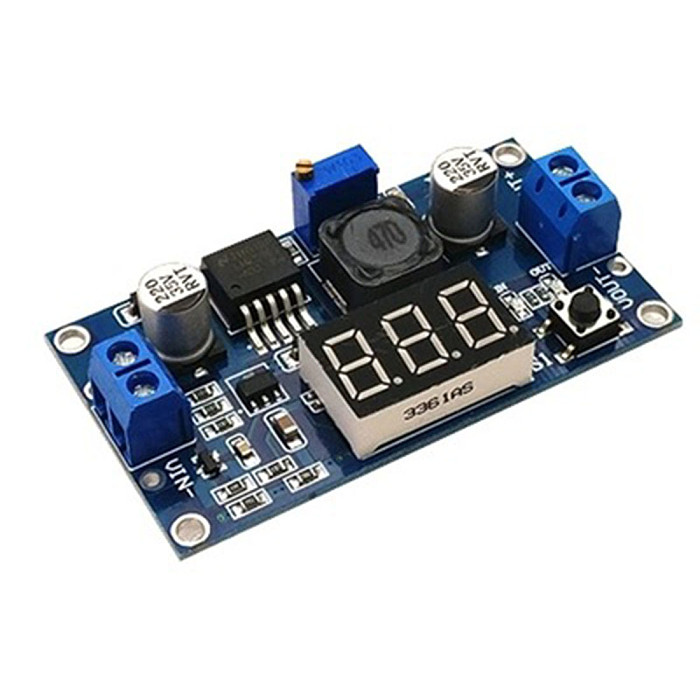

LM2596DC-DC adjustable step-down voltage regulator power module with red 3-digit digital tube display digital display voltmeter
1. With voltmeter display and voltmeter can be self-calibrated. A more advanced voltage microprocessor is used. The error of the voltmeter is ± 0.05V and the range is 0 ~ 40V. (To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
2. Touch the button to switch between measuring input or output voltage, and an indicator light shows which voltage is being measured, and save the settings, even if the power is off and then on.
3. The voltmeter can be turned off, and it can be easily realized by touching the left button when it is not needed.
4. With terminal block, it is convenient to use without soldering iron, and the welding wire connection point is reserved.
5. Input voltage is 4.0 ~ 40V. (The input voltage must be more than 1.5v higher than the output voltage)
6. Adjustable output voltage range is continuously adjustable from 1.25V to 37V. (The input voltage must be 1.5V higher than the output voltage)
7. The output current is 3A. It is recommended to use it within 2.0A. Large current needs to strengthen heat dissipation.
8. The output power is 20W, please strengthen the heat dissipation if it exceeds 15W.
9. High conversion efficiency, averaged at 88% (efficiency is related to input, output voltage, current, and voltage difference)
10.With reverse connection protection, reverse connection does not burn
11.With overheating protection and short circuit protection
Application:
This module can be applied in the step-down field where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V car laptop power supplies, industrial equipment step-down, 12V to 3.3V, 12V to 5V 24V to 5V, 24V to 12V, 36V to 24V, etc.
The product contains:
LM2596DC-DC adjustable buck power supply module * 1
