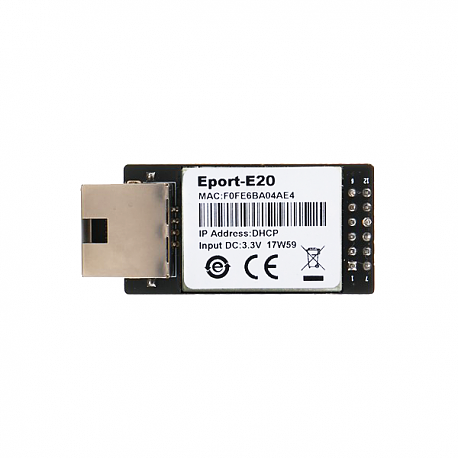

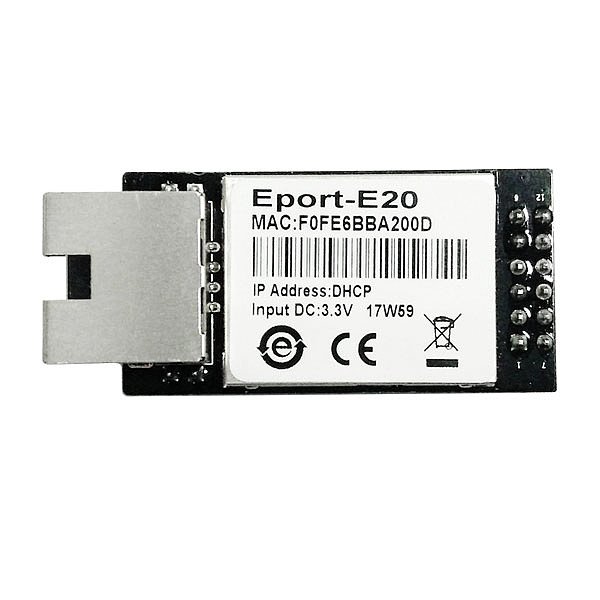

HF Super Ethernet Port FreeRTOS Eport-E20 Cortex-M3/96MHz Support TCP/IP/Telnet /Modbus TCP 921600 bps

HF Super Ethernet Port FreeRTOS Eport-E20 Cortex-M3/96MHz Support TCP/IP/Telnet /Modbus TCP 921600 bps Item NO.: F23959

Write a Review
US$ 4.19
US$ 4.93 Save US$ 0.74 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • Features:
  • Cortex-M3 MCU (128KB SRAM) and 2MB Flash
  • FreeRTOS real-time operating system
  • Support TCP / IP / Telnet / Modbus TCP protocol
  • Support serial port to 10 / 100M Ethernet data transmission, serial port rate up to 921600 bps
  • Support 10 / 100M Ethernet adaptation
  • Support webpage simple configuration
  • Support data SSL / AES / DES security encryption configuration
  • Support web OTA wireless upgrade
  • Supports industrial-grade operating temperature: -40 to + 85˚ C
  • Single + 3.3V power supply
  • Size: 50 x 23 x 11 mm (L x W x H)
  • Product Certification: CE
Product Name HF Super Ethernet Port FreeRTOS Eport-E20 Cortex-M3/96MHz Support TCP/IP/Telnet /Modbus TCP 921600 bps
Item NO. F23959
Weight 0.033 kg = 0.0728 lb = 1.1640 oz
Category Consumer Electronics > Industrial Module
Tag
Brand HF
Creation Time 2018-01-31

Features:

     Cortex-M3 MCU (128KB SRAM) and 2MB Flash
     FreeRTOS real-time operating system
     Support TCP / IP / Telnet / Modbus TCP protocol
     Support serial port to 10 / 100M Ethernet data transmission, serial port rate up to 921600 bps
      Support 10 / 100M Ethernet adaptation
     Support webpage simple configuration
     Support data SSL / AES / DES security encryption configuration
     Support web OTA wireless upgrade
     Supports industrial-grade operating temperature: -40 to + 85˚ C
     Single + 3.3V power supply
     Size: 50 x 23 x 11 mm (L x W x H)

     Product Certification: CE



System parameters
Processor / clocked Cortex-M3 / 96MHz
Flash / SDRAM 2MB / 128KB
Operating system FreeRTOS
Ethernet
Number of ports 1 RJ45 with LED
Interface Standard 10/100 Fast Ethernet auto-negotiation
Protection 2KV isolation
Network transformer integration
Network protocols IP, TCP, UDP, DHCP, DNS, HTTP Server / Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP, TFTP, uPNP, NTP, SNMP, Modbus TCP
Security Protocols TLS, AES 128Bit, DES3
Support IPV6 No
Serial port
Port number 1 + 1 debug port
Interface standard TTL: 2 wire (TX, RX)
Data bits 5,6,7,8
Stop bit 1,2
Parity None, Even, Odd, Space, Mark
Baud rate TTL: 600 bps ~ 921600 bps
Flow Control RTS / CTS, DSR / DTR, Xon / Xoff, NONE
Software
Web Page HTTP Page Configuration Custom HTML Web Pages Interactive Web Pages
Log
Configure Web, CLI, XML import, Telnet, IOTService PC Software, UART Fast Config
PC configuration software support
SDK Development Kit
Basic parameters
Size 50 x 23 x 11 mm
Operating temperature -45 ~ 85 ° C
Storage temperature -45 ~ 105 ° C, 5 ~ 95% RH (non-condensing)
Input voltage 3.3V
Operating current ~ 100mA
Power consumption <400mW
Certification CE
