Assembled Kit : 40A ESC Controller 750KV Motor Connection Board Wire for 6-Aix Drone Multi Rotor Hexacopter

Assembled Kit : 40A ESC Controller 750KV Motor Connection Board Wire for 6-Aix Drone Multi Rotor Hexacopter Item NO.: F04997-E

Write a Review
US$ 152.71
US$ 179.66 Save US$ 26.95 (15% Off)
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Assembled Kit : 40A ESC Controller 750KV Motor Connection Board Wire for 6-Aix Drone Multi Rotor Hexacopter
Item NO. F04997-E
Weight 1.265 kg = 2.7888 lb = 44.6216 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Brand XT-XINTE
Creation Time 2017-07-25

Assembled Necessity Kit:6 Pcs 40A Brushless ESC Speed Controller + 6 Pcs

750KV Brushless Disk Motor+ KK ESC Connection Board +  XT60 Connectors + 16AWG Silicon Wire  for 6-Aix Drone Hex Multi Rotor Hexacopter









Package including :
6X 40A Brushless ESC Speed Controller
6X  750KV Brushless Disk Motor high Thrust With Mount
1X  KK Multi-Copter Power Battery to 8 ESC Connection Board
1X 1 Pair XT60 Bullet Connectors Plugs
18 X 3.5mm Gold Banana Connectors
1X Black and Red 16AWG Silicon Wire Connecting Wire



40A Brushless ESC Speed Controller







  • This ESC With the English instruction.
  • Before producing, the manufacturer have set up the program, the ESC do not need additional program.

JMT 40A Brushless ESC Speed Controller For RC RC Quadcopter Hexacopter Multi-Rotor Aircraft


1. quantity:1 PCS

2. 100% Brand New!

3. No manual.

4. For KK MK MWC RC Quadcopter Hexacopter Multi-Rotor Aircraft

5. Preview:


1 Specification

1.1 Output: Continuous 40A, Burst 60A up to 10 Secs.

1.2 Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.

1.3 BEC:Pentium-40A: 3A / 5V (Switch mode).

1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)

1.5 Size: 55mm (L) * 28mm (W) * 12mm (H).

1.6 Weight: Pentium-40A: 35g.

Note: The old version Pentium-40Auses built-in linear mode BEC, but the new version uses switch mode BEC to enhance the output ability.


2Features:

2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: resetall the programmable items totheir default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

3 Advantages

3.1Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2Extreme low resistancePCB is usedatthe power output section, the whole ESC hassuper current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability. 3.4 Compatible with Hobbywing's.

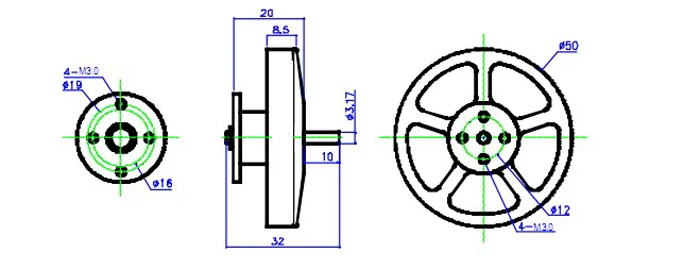

750KV Brushless Disk Motor high Thrust With Mount







aeProduct.getSubject()

aeProduct.getSubject()

(The mount will be shipped in silver color)

aeProduct.getSubject()



1, the use of a hidden motor shaft design, more effective protection of the motor shaft.
2, the use of a new type of propeller design, performance is more stable, demolition is more convenient.
3, the use of the 0.2mm stator, the load temperature lower, increase in efficiency.
Excellent workmanship, quality assurance, energy saving high efficiency



KV:750KV
Shaft diameters: ? 3.17 mm
Weight:about 105 g (with leads)

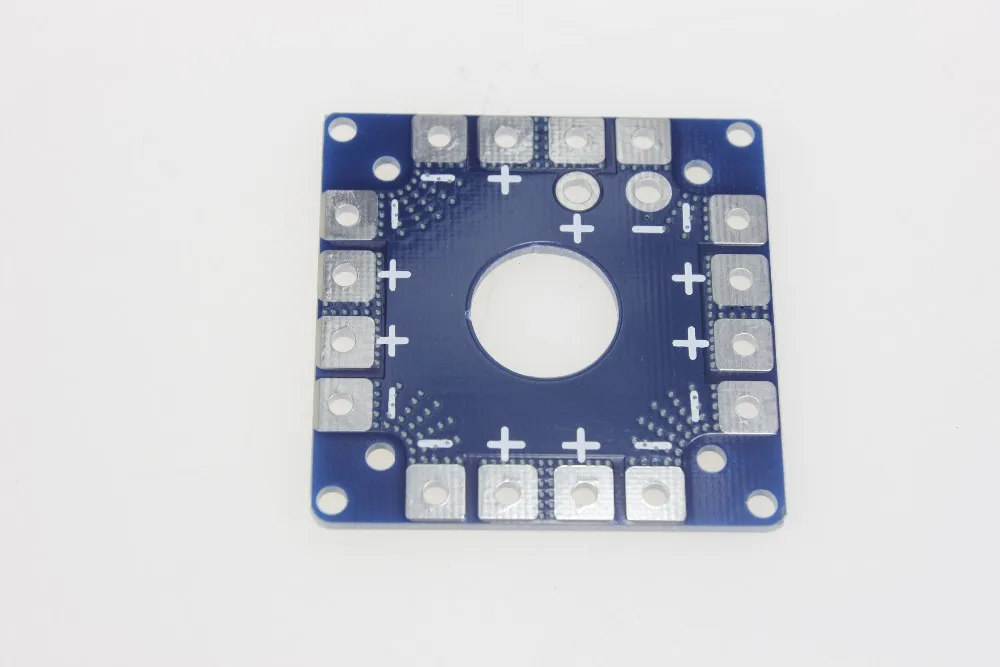

 KK Multi-Copter Power Battery to 8 ESC Connection Board





aeProduct.getSubject()  aeProduct.getSubject()  aeProduct.getSubject()



MultiCopter Multi-Quad Copter Power Battery to 8 ESC Connection Board

Features:
- The whole board as a conductor,up to 100A input
- Does not produce magnetic, less influence to sensor
- One side for positve,another side for nagetive
Specfications:
- Special for MultiCopter battery connection
- Up to 8 ESC/Motor can be connect to the Board
