Home>DIY RC Drone Accessories>Receiver>JMT FS2A-4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S Controller

JMT FS2A-4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S Controller Item NO.: F33651

Sold (83)

US$ 6.29 ~ US$ 6.99

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 6.99	US$ 6.64	US$ 6.29

Quantity: Stock ( 99999997 )

Estimate Shipping Cost

Product Name	JMT FS2A-4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S Controller
Item NO.	F33651
Weight	0.018 kg = 0.0397 lb = 0.6349 oz
Category	DIY RC Drone Accessories > Receiver
Brand	JMT
Creation Time	2019-11-06

JMT FS2A-4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S

Description:

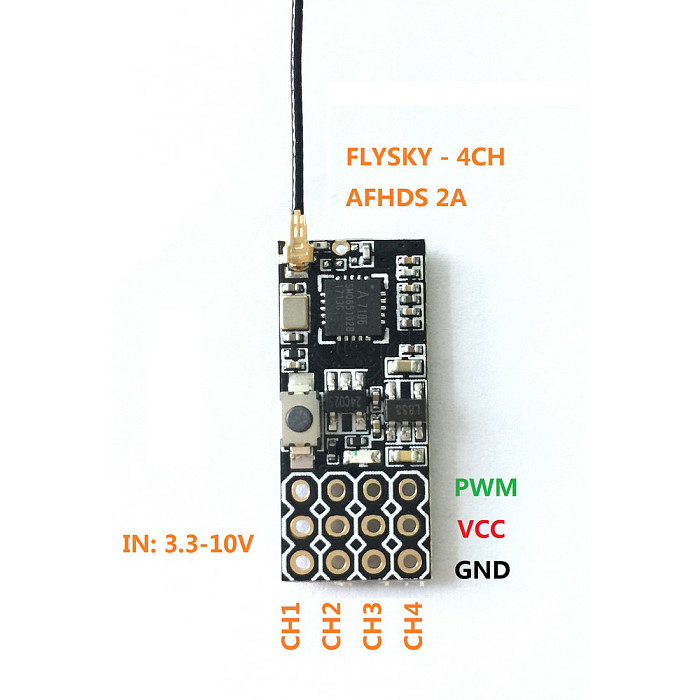

Item name: FS2A 4CH Receiver

Channels: 4CH

Output signal: PWM

Frequency range: 2.408-2.475GHZ

Band width: 135

Receiver sensitivity: -92DBM

2.4G mode: AFHDS 2A

Failfe: Yes

Supply voltage: 3.3-10V

Distance: 400+ meters

Working current: 20MA

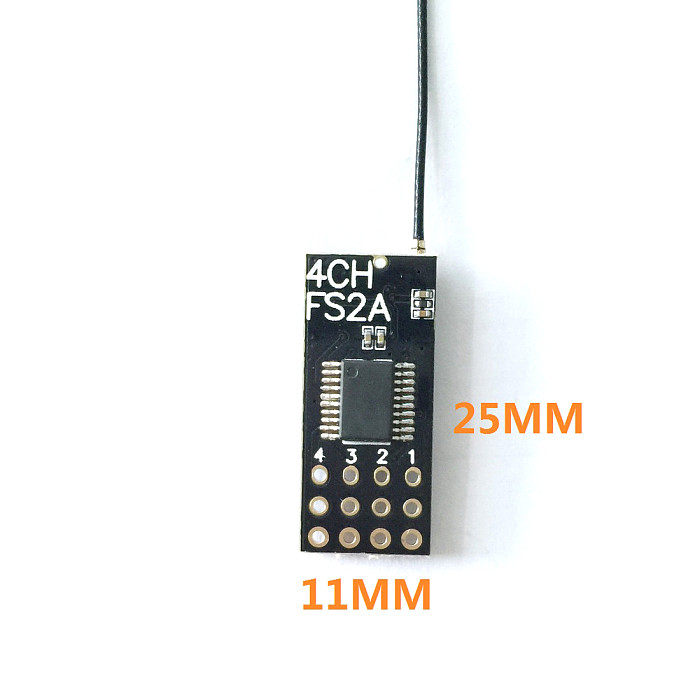

Dimensions: 11 * 25MM

Weight: 0.9 grams
Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter

Bind:

1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.

2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.

3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:

The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

Pacakge Included:

1X FS2A 4CH AFHDS 2A Mini Compatible Receiver
